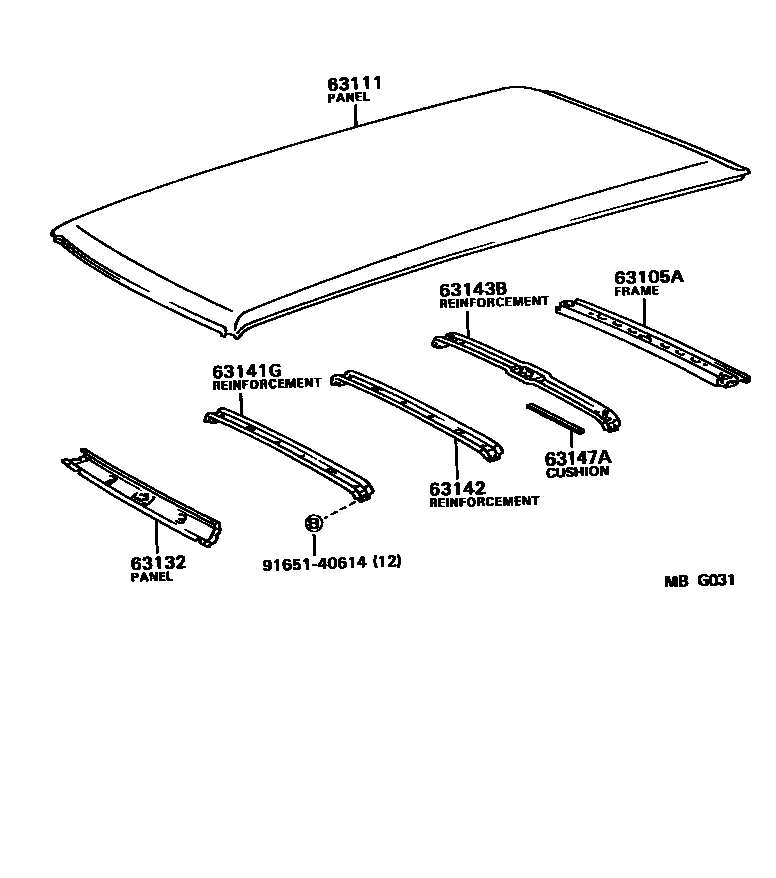

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-87002iYR27..CND198311-198808

sub63105-87011

main63105-87003iYR21,22,31198308-198808

sub63105-87012

main63105-87006iYR21,22..LE198308-198808

W/SUN ROOF

sub63105-28020

63111PANEL, ROOF

main63111-28010iYR2#,3#198308-198808

main63111-28020iYR21,22,31..LE198308-198808

W/SUN ROOF

63132PANEL, WINDSHIELD HEADER, INNER

main63132-87004iYR2#,3#198308-198808

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-87009iYR2#,3#198308-198808

63142REINFORCEMENT, ROOF PANEL, NO.2

main63141-87009iYR2#,3#198308-198808

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-87003iYR2#,3#198308-198808

63147ACUSHION, ROOF TO ROOF REINFORCEMENT

main63129-28010iYR27,29,32198311-198808

L=140

main63147-95A00iYR27,29198311-198603

L=300

sub63357-95701

main63357-95701iYR29,32198603-198808

L=300

9165140614

main91651-40614

8 parts on this diagram · 4 diagrams in section
