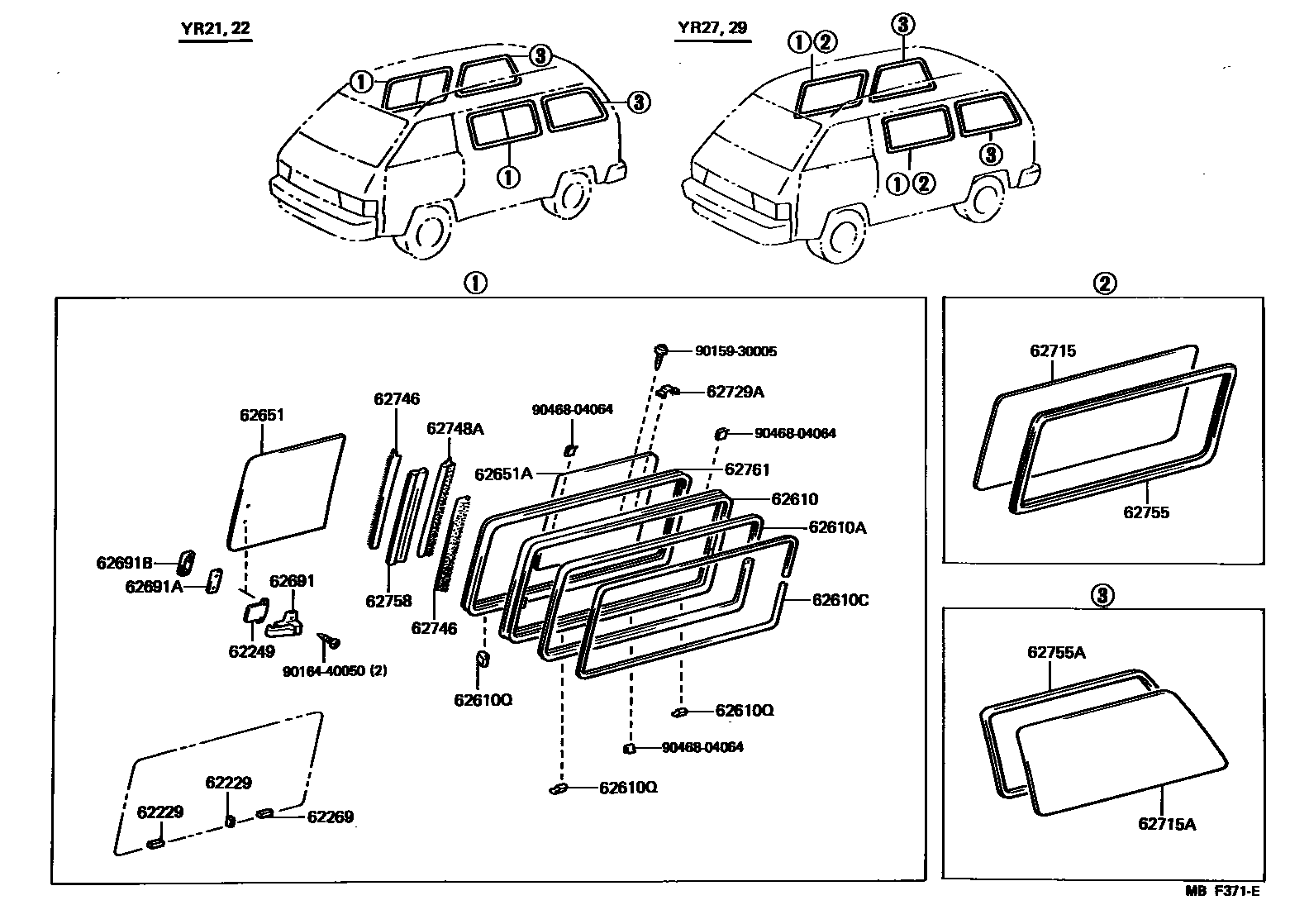

SIDE WINDOW
62229PACKING, SIDE WINDOW
62249PLATE, SIDE WINDOW, RH
62269FILM, SIDE WINDOW FRAME, RH
62610SASH ASSY, SIDE WINDOW OUTER, NO.1 (FOR SLIDE TYPE)
LH
RH
62610APACKING, SIDE WINDOW OUTER SASH, NO.1
LH
RH
62610CCLIP, SIDE WINDOW OUTER SASH, NO.1 (FOR SLIDE TYPE)
LH
RH
62610QSPACER, SIDE WINDOW FRAME
PILLAR
LWR
62651GLASS, SIDE WINDOW, NO.1, FRONT (FOR SLIDE TYPE)
*TT,T=4.0,LH,*TT,T=4.0
*TT,T=4.0,BRONZE,LH,BRONZE,*TT,T=4.0
*TT,T=4.0,GRAY,LH,*TT,T=4.0,GRAY
*TT,T=4.0,GRAY,RH,*TT,T=4.0,GRAY
*TT,T=4.0,BRONZE,RH,BRONZE,*TT,T=4.0
*TT,T=4.0,RH,*TT,T=4.0
62651AGLASS, SIDE WINDOW, NO.1, REAR (FOR SLIDE TYPE)
*TT,T=4.0,LH,*TT,T=4.0
*TT,T=4.0,BRONZE,LH,BRONZE,*TT,T=4.0
*TT,T=4.0,GRAY,LH,*TT,T=4.0,GRAY
*TT,T=4.0,RH,*TT,T=4.0
*TT,T=4.0,BRONZE,RH,BRONZE,*TT,T=4.0
*TT,T=4.0,GRAY,RH,*TT,T=4.0,GRAY
62691LOCK, SIDE WINDOW, NO.1 GLASS (FOR SLIDE TYPE)
62691APACKING, SIDE WINDOW LOCK, NO.1
62691BRETAINER, SIDE WINDOW LOCK, NO.1
62715GLASS, SIDE WINDOW, NO.1(FOR FIXED TYPE)
LH,*TT,T=3.5
RH,*TT,T=3.5
*TEM,T=3.5,RH,*TEM,T=3.5
62715AGLASS, SIDE WINDOW, NO.2(FOR FIXED TYPE)
*TT,T=3.5,RH,*TT,T=3.5
*LAM,T=4.7,BLUE,RH,BLUE,*LAM,T=4.7
*LAM,T=4.7,BRONZE,RH,BRONZE,*LAM,T=4.7
*LAM,T=4.7,BLUE,LH,BLUE,*LAM,T=4.7
*LAM,T=4.7,BRONZE,LH,BRONZE,*LAM,T=4.7
*TT,T=3.5,LH,*TT,T=3.5
62729APAD, WINDOW CENTER SASH
62746WEATHERSTRIP, SIDE WINDOW GLASS CHANNEL, NO.1
62748AWEATHERSTRIP, SIDE WINDOW GLASS CHANNEL, NO.2
62755WEATHERSTRIP, SIDE WINDOW, NO.1(FOR FIXED TYPE)
LH
RH
62755AWEATHERSTRIP, SIDE WINDOW, NO.2(FOR FIXED TYPE)
W/*LAM
W/*TT
W/*TEM
62758CHANNEL, SIDE WINDOW GLASS, NO.1
62761RUN, SIDE WINDOW, NO.1(FOR SLIDE TYPE)
RH
LH
9015930005
main90159-30005
9016440050
main90164-40050
9046804064
main90468-04064
24 parts on this diagram · 1 diagram in section
