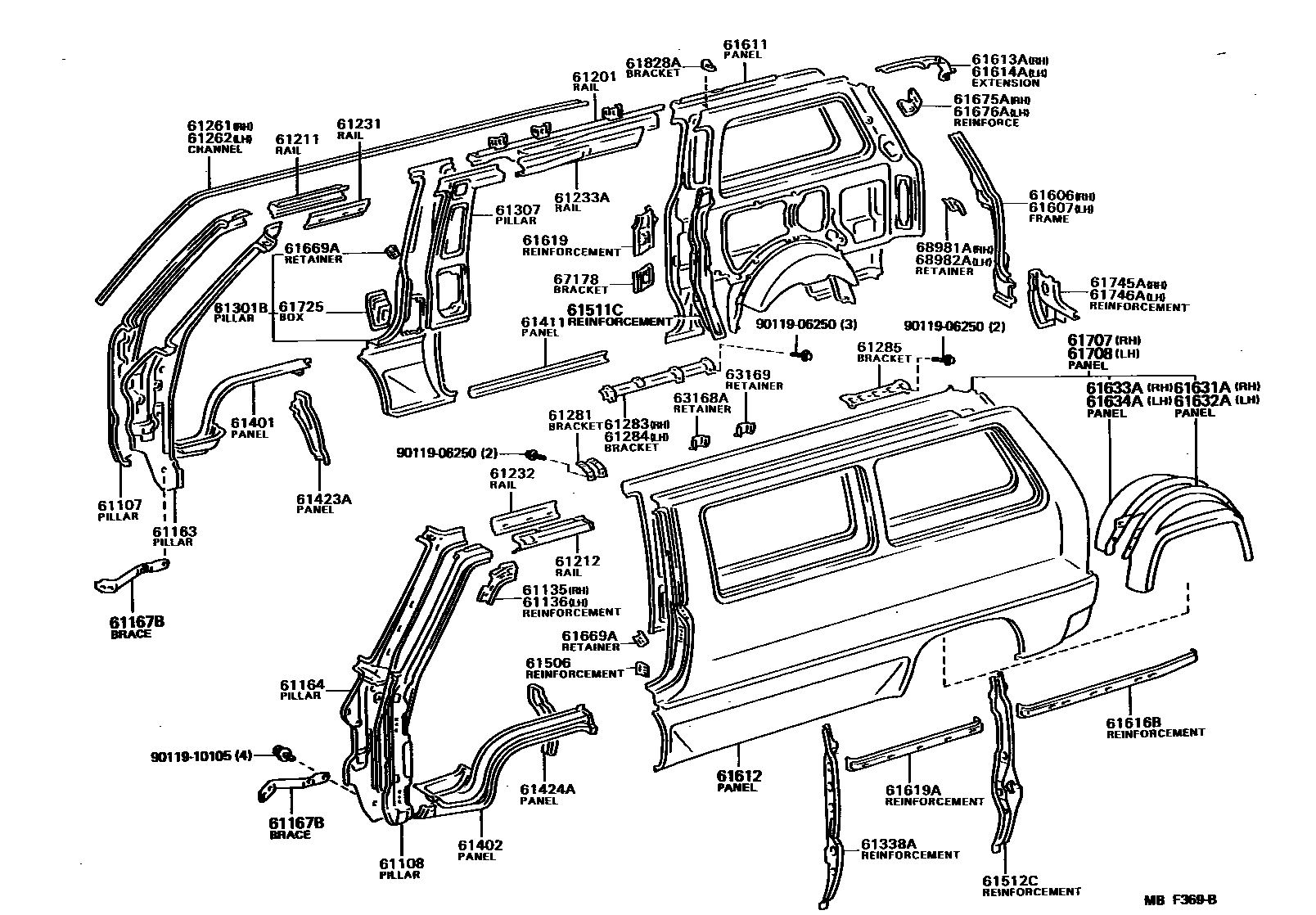

SIDE MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

61107PILLAR SUB-ASSY, FRONT BODY OUTER, RH

main61027-28010iYR2#198308-198508

main61027-28030iYR2#,3#198508-198808

61108PILLAR SUB-ASSY, FRONT BODY OUTER, LH

main61028-28010iYR21..DLX198308-198508

main61028-28050iYR27..USA198308-198508

W/ANTENA

main61028-28060iYR2#,31198508-198808

W/ANTENA

main61028-28070iYR29,32..CND198508-198808

61135REINFORCEMENT, FRONT BODY PILLAR, UPPER RH

main61135-87001iYR2#,3#198308-198808

61136REINFORCEMENT, FRONT BODY PILLAR, UPPER LH

main61136-87001iYR2#,3#198308-198808

61163PILLAR, FRONT BODY, INNER RH

main61023-28030iYR21198308-198309

sub61023-28040

main61023-28040iYR21..LE198308-198309

W/SUN ROOF

main61023-28040iYR2#198309-198808

main61023-95D02iYR3#198608-198808

61164PILLAR, FRONT BODY, INNER LH

main61024-28030iYR21198308-198309

sub61024-28040

main61024-28040iYR21..LE198308-198309

W/SUN ROOF

main61024-28040iYR2#198309-198808

main61024-95D02iYR3#198608-198808

61167BBRACE, FRONT BODY PILLAR, LOWER

main61167-28010iYR2#,3#198308-198808

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-28010iYR2#,3#198308-198808

sub61201-28060

main61201-28020iYR21,22,31..LE198308-198808

W/SUN ROOF

61211RAIL, ROOF SIDE, OUTER RH

main61211-87005iYR2#,3#198308-198808

61212RAIL, ROOF SIDE, OUTER LH

main61212-87007iYR2#,3#198308-198808

61231RAIL, ROOF SIDE, INNER RH

main61231-28010iYR21,22,31..LE198403-198808

W/SUN ROOF

main61231-28020iYR2#,3#198308-198808

61232RAIL, ROOF SIDE, INNER LH

main61232-28010iYR21,22,31..LE198403-198808

W/SUN ROOF

main61232-28020iYR2#,3#198308-198808

61233ARAIL, ROOF SIDE, INNER NO.2 RH

main61207-28010iYR21,22,31..LE198308-198808

W/SUN ROOF

main61233-28010iYR2#,3#198308-198808

61261CHANNEL, ROOF DRIP, RH

main61261-28010iYR2#,3#198308-198707

61262CHANNEL, ROOF DRIP, LH

main61262-28010iYR2#,3#198308-198707

61281BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1

main61281-87001iYR21,22,31..LE198308-198808

61283BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH

main63067-28010iYR21,22,31..LE198308-198808

61284BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH

main63068-28010iYR21,22,31..LE198308-198808

61285BRACKET, SLIDING ROOF HOUSING SIDE

main61285-87001iYR21,22,31..LE198308-198808

61301BPILLAR, CENTER BODY, OUTER RH

main61301-28030iYR2#198308-198708

main61301-28050iYR2#198608-198708

W/FUEL LID OPENER

main61301-28050iYR2#198708-198808

main61301-95D02iYR32198608-198708

main61301-95D05iYR3#198608-198808

W/FUEL LID OPENER

61307PILLAR SUB-ASSY, CENTER BODY, INNER RH

main61307-28020iYR2#,3#198308-198808

61338AREINFORCEMENT, CENTER BODY PILLAR, INNER LH

main61338-28010iYR29..VSG;YR21,22,27,31198308-198808

61401PANEL SUB-ASSY, FENDER, RH

main61403-87005iYR2#198308-198501

sub61403-87007

main61403-87007iYR2#,3#198501-198808

61402PANEL SUB-ASSY, FENDER, LH

main61404-87004iYR2#198308-198501

sub61404-87006

main61404-87006iYR2#,3#198501-198808

61411PANEL, ROCKER, OUTER RH

main61431-87001iYR2#,3#198308-198808

61423APANEL, FENDER, INNER LOWER RH

main61423-87001iYR2#,3#198308-198808

61424APANEL, FENDER, INNER LOWER LH

main61424-87001iYR2#,3#198308-198808

61506REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH

main61506-28010iYR2#,3#198308-198808

61511CREINFORCEMENT, QUARTER LOCK PILLAR, RH

main61503-28010iYR2#,3#198308-198808

61512CREINFORCEMENT, QUARTER LOCK PILLAR, LH

main61518-28020iYR29..VSG;YR21,22,27,31198308-198808

61606FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH

main61771-87001iYR2#198308-198408

main61771-87002iYR21198308-198408

W/*RW

main61771-87003iYR2#,3#198408-198808

61607FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH

main61772-87001iYR2#,3#198308-198808

61611PANEL, QUARTER, RH

main61611-28010iYR2#198308-198501

sub61611-28020

sub61631-87003

main61611-28020iYR29..VSG;YR21,22,27,31198501-198808

main61611-95D00iYR29,32..VSP198508-198808

61612PANEL, QUARTER, LH

main61612-28020iYR2#198308-198501

sub61612-28040

sub61632-87003

main61612-28040iYR29..VSG;YR21,22,27,31198501-198808

sub61612-28030

main61612-95D00iYR29,32..VSP198508-198808

sub61612-95D01

61613AEXTENSION, QUARTER PANEL REAR, RH

main61625-87002iYR2#,3#198308-198808

W/*RW

main61625-87003iYR2#,3#198308-198808

61614AEXTENSION, QUARTER PANEL, REAR LH

main61626-87002iYR2#,3#198308-198808

61616BREINFORCEMENT, QUARTER PANEL, OUTER REAR

main61616-28020iYR2#198308-198408

61619REINFORCEMENT, SLIDE DOOR LOCK STRIKER

main61513-28020iYR2#,3#198308-198808

61619AREINFORCEMENT, QUARTER PANEL

main61619-87003iYR2#198308-198410

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-87001iYR2#198211-198501

sub61631-87003

main61631-87003iYR2#,3#198501-198808

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-87001iYR2#198211-198501

sub61632-87003

main61632-87003iYR2#,3#198501-198808

sub61632-87005

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-87002iYR21,22,27,32198211-198808

main61633-87003iYR29198508-198808

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61634-87002iYR21,22,27,32198211-198808

main61634-87003iYR29198508-198808

61669ARETAINER, FRONT DOOR OPEN SWITCH SET

main61669-87001iYR2#,3#198308-198808

61675AREINFORCE, SEAT BELT ANCHOR, NO.2 UPPER RH

main61675-28010iYR29..VSG;YR21,22,27,31198308-198808

61676AREINFORCE, SEAT BELT ANCHOR, NO.2 UPPER LH

main61676-28010iYR29..VSG;YR21,22,27,31198308-198808

61707PANEL SUB-ASSY, QUARTER, INNER RH

main61703-28030iYR21198308-198501

sub61703-28902

main61703-28040iYR27198311-198408

sub61703-28903

main61703-28060iYR27198408-198501

sub61703-28905

main61703-28902iYR22,31..LE198508-198808

W/SUN ROOF

main61703-28902iYR21198501-198508

main61703-28905iYR27198501-198508

main61703-28907iYR29..VSG198508-198808

main61703-28910iYR22,31..DLX198508-198808

main61703-28913iYR29..VSP198508-198808

main61703-28914iYR32198608-198808

main61703-28915iYR22,31..LE198708-198808

61708PANEL SUB-ASSY, QUARTER, INNER LH

main61704-28030iYR21198308-198501

sub61704-28902

main61704-28040iYR27..CND198311-198408

sub61704-28903

main61704-28050iYR27..USA198402-198501

sub61704-28904

main61704-28902iYR21198501-198508

main61704-28902iYR22,31..LE198508-198808

W/SUN ROOF

main61704-28904iYR27198501-198508

main61704-28905iYR29..VSG198508-198808

main61704-28908iYR22,31198508-198808

main61704-28911iYR29..VSP198508-198808

main61704-28912iYR32198608-198808

61725BOX, FUEL INLET

main61709-28010iYR2#,3#198708-198808

main61709-28010iYR2#,3#198608-198708

W/FUEL LID OPENER

main61709-87005iYR2#,32..DLX,STD198308-198708

61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH

main61745-87001iYR2#,3#198308-198808

61746AREINFORCEMENT, BACK DOOR OPENING, LOWER LH

main61746-87001iYR2#,3#198308-198808

61828ABRACKET, REAR DOOR RAIL, CENTER RH

main61828-87001iYR2#,3#198308-198808

63168ARETAINER, ROOF REINFORCEMENT, NO.1

main63168-87001iYR2#,3#198308-198808

W/O SUN ROOF

63169RETAINER, ROOF REINFORCEMENT, NO.2

main63169-87001iYR2#,3#198308-198808

W/O SUN ROOF

67178RETAINER, REAR DOOR SWITCH, RH

main67178-87003iYR2#,3#198308-198808

68981ARETAINER, BACK DOOR STAY, RH

main68981-87002iYR2#,3#198308-198808

68982ARETAINER, BACK DOOR STAY, LH

main68982-87001iYR2#,3#198308-198808

9011906250

main90119-06250

9011910105

main90119-10105

59 parts on this diagram · 6 diagrams in section
