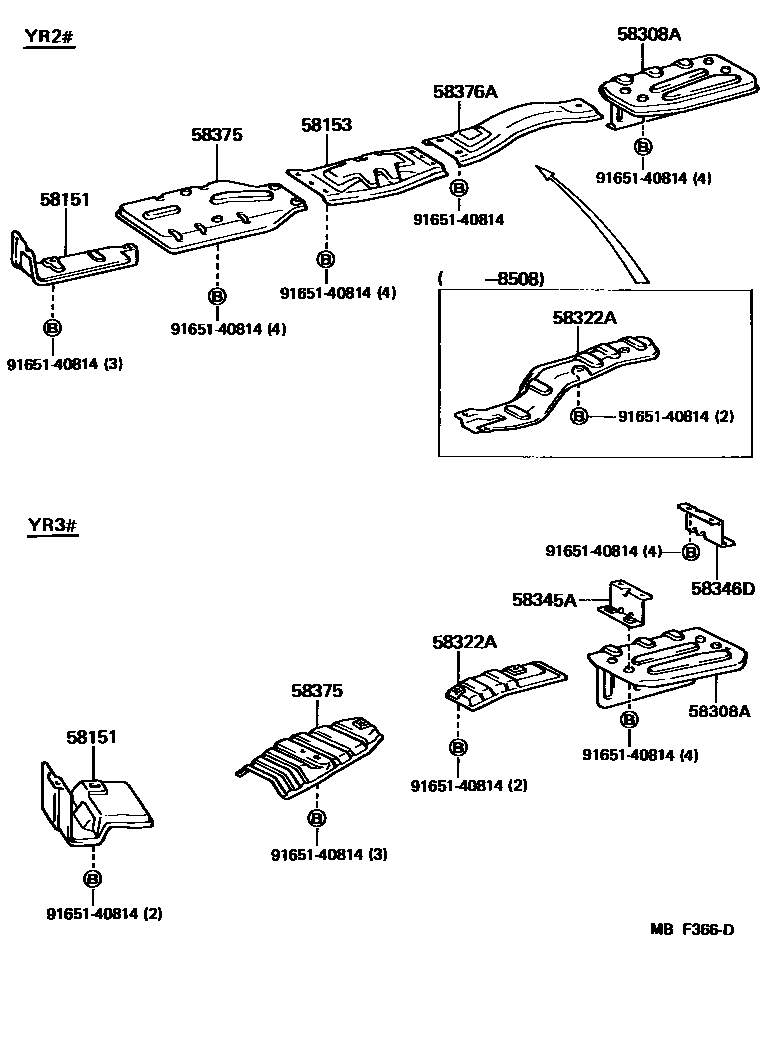

FLOOR INSULATOR
58153INSULATOR, FRONT FLOOR HEAT, NO.2
sub58152-28010
58308APANEL SUB-ASSY, HEAT PROOF
58322AINSULATOR, REAR FLOOR HEAT, REAR
58345ABRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58346DBRACKET, REAR FLOOR HEAT INSULATOR, NO.2
58375INSULATOR, REAR FLOOR HEAT, NO.1
58376ASTAY SUB-ASSY, REAR INSULATOR, NO.2
9165140814
main91651-40814
9 parts on this diagram · 1 diagram in section
