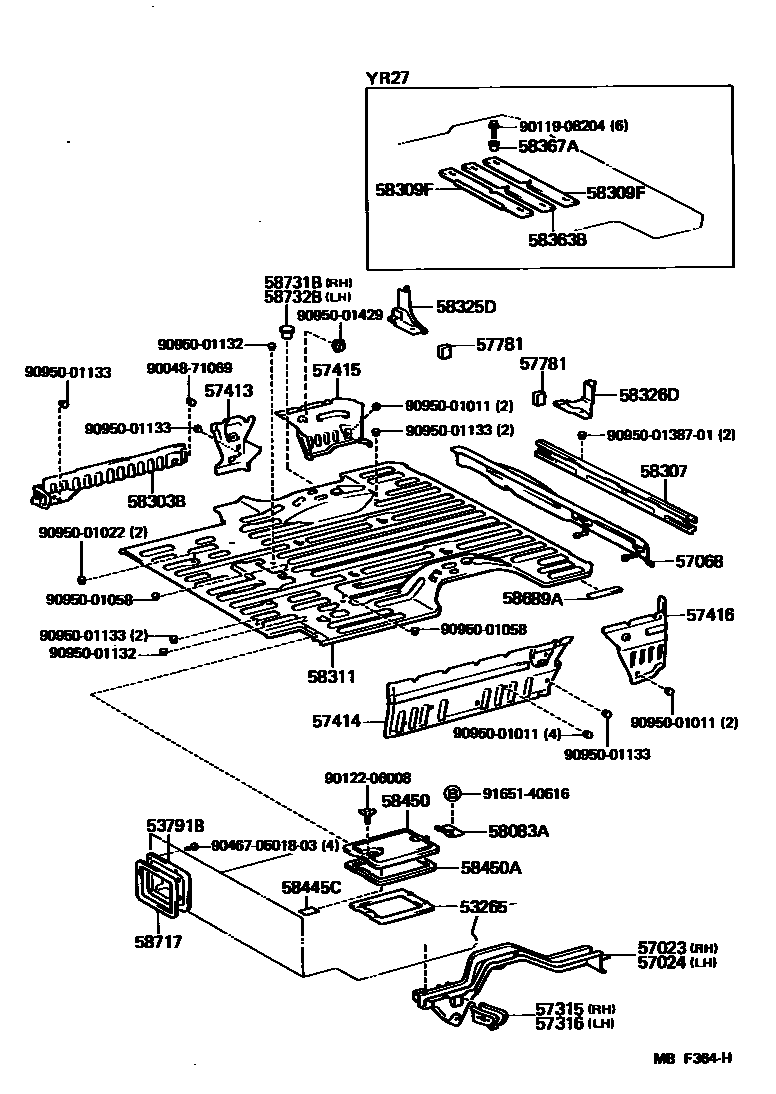

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

53265PLATE, BATTERY CARRIER MOUNTING, NO.2

main53266-28010iYR27..CND198311-198408

main53266-28020iYR27..USA198308-198808

53791BCOVER, COOL AIR INTAKE HOLE

main53791-87003iYR21,22,31..USA198308-198808

57023MEMBER SUB-ASSY, REAR SIDE, RH

main57023-28900iYR21198406-198508

sub57023-28902

main57023-28905iYR27198406-198508

main57023-28908iYR22198508-198808

main57023-28909iYR29198508-198808

main57023-28912iYR3#198608-198808

57024MEMBER SUB-ASSY, REAR SIDE, LH

main57024-28900iYR21198406-198508

main57024-28903iYR27198406-198508

main57024-28908iYR22198508-198808

main57024-28909iYR29198508-198808

main57024-28912iYR3#198608-198808

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-28030iYR29198508-198708

main57068-28031iYR29198708-198808

main57068-87004iYR2#198308-198501

sub57068-87007

main57068-87007iYR22198501-198808

main57068-95D00iYR3#198608-198808

57315OUTRIGGER, NO.3 RH

main57315-28010iYR21,22,31198501-198808

main57315-28040iYR29,32198509-198808

sub57315-28080

main57315-87005iYR27,29198501-198509

sub57315-28080

57316OUTRIGGER, NO.3 LH

main57315-87004iYR2#,3#198501-198808

57413RAIL, FLOOR SIDE, CENTER RH

main57413-28010iYR2#,3#198308-198808

sub57405-28060

57414RAIL, FLOOR SIDE, CENTER LH

main57406-28020iYR2#198308-198508

sub57406-28031

sub90950-01022

sub90950-01429

main57406-28030iYR2#198508-198808

sub57406-28031

sub90950-01022

main57406-95D00iYR3#..4FC198608-198808

57415RAIL, FLOOR SIDE, REAR RH

main57047-28010iYR2#198308-198508

main57047-28030iYR2#,3#198508-198808

57416RAIL, FLOOR SIDE, REAR LH

main57048-28010iYR2#198308-198508

main57048-28030iYR2#,3#198508-198808

57781PAD, DUST PROOF REAR FLOOR, NO.1

main57575-87002iYR2#,3#198308-198808

58083AHINGE SUB-ASSY, BATTERY SERVICE COVER, MALE

main58083-87002iYR21198308-198808

58303BSTEP SUB-ASSY, REAR FLOOR, RH

main58303-87001iYR2#,3#198308-198808

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-87003iYR2#198308-198501

sub58307-87004

sub57068-87006

sub57068-87007

main58307-87004iYR2#198501-198808

main58307-95D00iYR3#198608-198808

58309FBALANCER SUB-ASSY, REAR FLOOR

main58309-28010iYR27198311-198508

RR

main58309-28020iYR27198311-198508

FR

58311PAN, REAR FLOOR

main58311-28040iYR21,22,31198308-198808

sub58311-28041

sub58731-87002

sub58732-87002

sub90048-71033

main58311-28050iYR27198311-198808

sub58311-95D03

sub58731-87002

sub58732-87002

sub90048-71033

main58311-28060iYR29198508-198808

58325DBRACE, REAR FLOOR PANEL, RH

main58325-87001iYR2#,3#198308-198808

58326DBRACE, REAR FLOOR PANEL, LH

main58326-87001iYR2#,3#198308-198808

58363BBALANCER, REAR FLOOR, NO.1

main58363-28010iYR27198311-198504

main58363-28020iYR27198504-198508

58367ABRACKET, REAR FLOOR BALANCER

main58367-28010iYR27198311-198508

58445CPAD, BATTERY SERVICE HOLE COVER

main58445-95J00iYR21198407-198808

sub82817-95707

58450COVER ASSY, BATTERY SERVICE HOLE

main58209-87001iYR21198308-198808

58450APACKING, BATTERY SERVICE HOLE COVER

main58449-87002iYR21198308-198808

58689AWEIGHT, REAR FLOOR

main58689-95J00iYR2#,3#198508-198808

L=800

58717PACKING, COOLER AIR INLET COVER

main58717-87004iYR21,22,31..USA198308-198808

58731BCAP, REAR ABSORBER, RH

main58731-87001iYR2#,3#198308-198808

58732BCAP, REAR ABSORBER, LH

main58732-87001iYR2#,3#198308-198808

9004871069

main90048-71069

9011908204

main90119-08204

9012206008

main90122-06008

904670501803

main90467-0501803

9095001011

main90950-01011

9095001022

main90950-01022

9095001058

main90950-01058

9095001132

main90950-01132

9095001133

main90950-01133

909500138701

main90950-0138701

9095001429

main90950-01429

9165140616

main91651-40616

40 parts on this diagram · 2 diagrams in section
