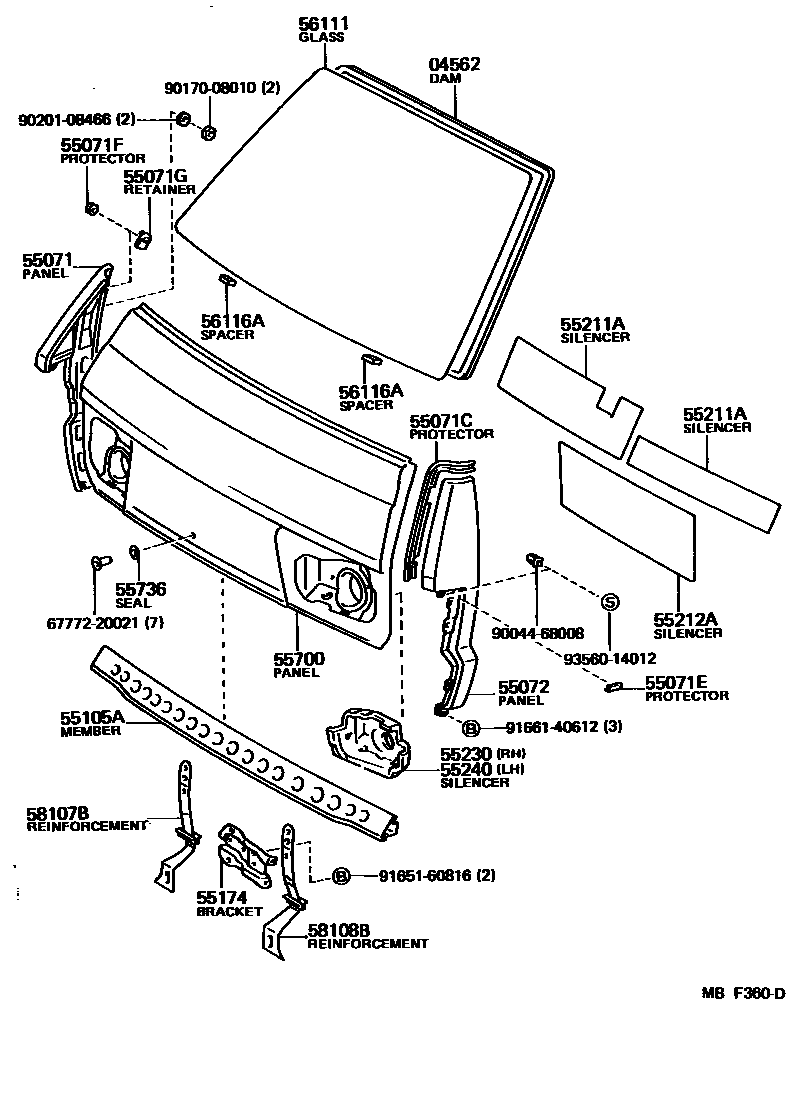

FRONT PANEL & WINDSHIELD GLASS

0001 1 0002 1

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iYR2#,3#198308-198808

55071PANEL SUB-ASSY, FRONT SIDE, RH

main53801-28010iYR2#198308-198508

main53801-87005iYR2#,3#198508-198808

55071CPROTECTOR, FRONT SIDE PANEL, NO.1

main53821-87002iYR2#198308-198508

RH

main53821-87003iYR2#,3#198508-198808

RH

main53828-87002iYR2#198308-198508

LH

main53828-87004iYR2#,3#198508-198808

LH

55071EPROTECTOR, FRONT SIDE PANEL, NO.3

main53822-28010iYR2#198308-198508

55071FPROTECTOR, FRONT SIDE PANEL, NO.4

main53827-87001iYR2#,3#198308-198808

55071GRETAINER, FRONT SIDE PANEL SET

main53827-95700iYR2#,3#198308-198808

55072PANEL SUB-ASSY, FRONT SIDE, LH

main53802-28010iYR2#198308-198508

main53802-87005iYR2#,3#198508-198808

55105AMEMBER SUB-ASSY, FRONT PANEL

main55105-28020iYR2#,3#198308-198808

55174BRACKET, BRAKE PEDAL MOUNTING, NO.2

main55174-28030iYR2#198308-198508

55211ASILENCER, FRONT PANEL, UPPER

main55211-28010iYR2#,3#198508-198808

main55211-28010iYR2#198308-198508

LH

main55241-28010iYR2#198308-198508

RH

55212ASILENCER, FRONT PANEL, LOWER

main55212-28010iYR2#198308-198508

main55212-87002iYR22,29198508-198508

55230SILENCER ASSY, HEADLAMP COVER, RH

main55230-28010iYR21..LE198308-198508

main55230-28020iYR2#,3#198508-198808

W/RR COOLER

55240SILENCER ASSY, HEADLAMP COVER, LH

main55240-28010iYR21..LE198308-198508

main55240-28020iYR2#,3#198508-198808

W/RR COOLER

55700PANEL ASSY, FRONT

main55701-28030iYR2#198308-198508

main55701-28050iYR2#198508-198511

main55701-28050iYR2#,3#..CND198511-198808

COLD SPEC

main55701-28060iYR2#,32..(DLX,STD)..USA198511-198808

sub55701-28050

55736SEAL, WATER GUARD PLATE

main55736-28010iYR2#198407-198808

main55736-87001iYR2#198308-198407

56111GLASS, WINDSHIELD

main56111-28010iYR2#,32..DLX,STD198308-198808

*LAM,T=5.3,*LAM,T=5.3

main56111-28030iYR21,22,31..LE198308-198808

*LAM,T=5.3,BRONZE,BRONZE,*LAM,T=5.3

main56111-28040iYR21,22,29,3#198308-198808

*TL,T=5.3,*TL,T=5.3

sub56111-28030

56116ASPACER, WINDSHIELD GLASS

main56116-28010iYR2#,3#198308-198808

58107BREINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH

main58107-28020iYR2#,3#198308-198808

58108BREINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58108-28020iYR2#,3#198308-198808

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

9004468008

main90044-68008

9017008010

main90170-08010

9020108466

main90201-08466

9165160816

main91651-60816

9166140612

main91661-40612

9356014012

main93560-14012

26 parts on this diagram · 2 diagrams in section
