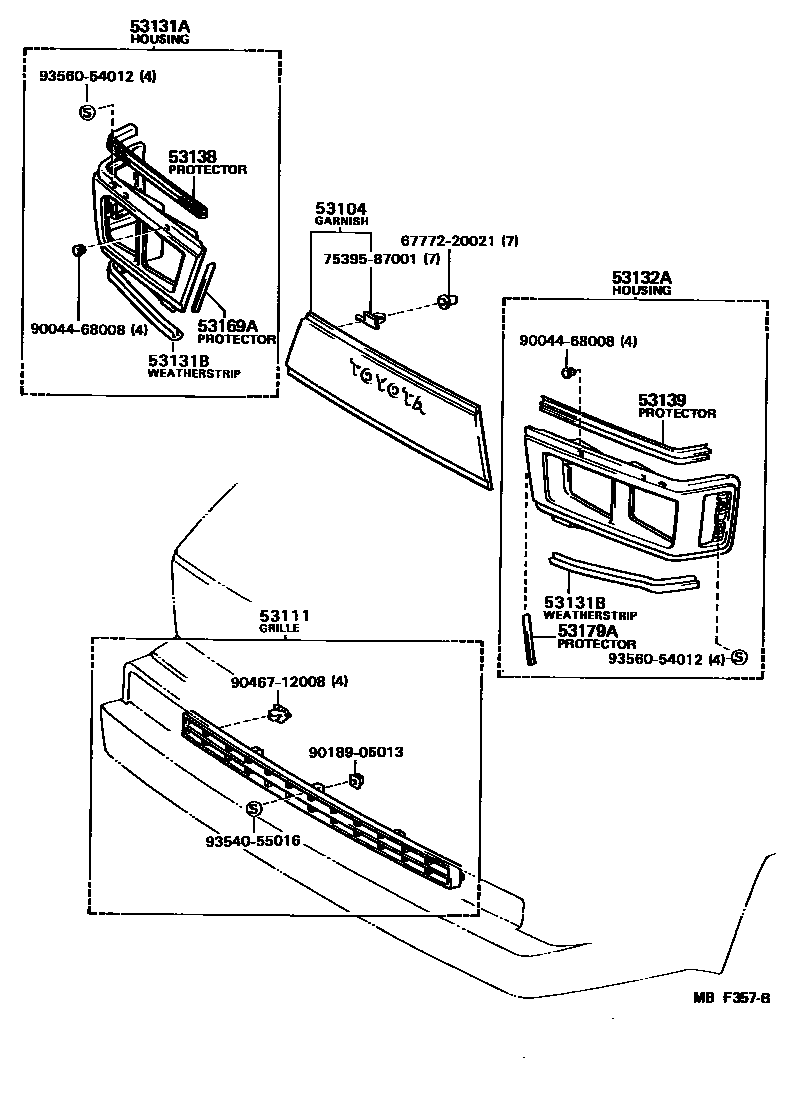

RADIATOR GRILLE

0001 1 0002 1

53104GARNISH SUB-ASSY, FRONT PANEL, CENTER

main53101-28010iYR27..CND198311-198508

sub53101-28020

main53101-28020iYR21198308-198508

main53101-28030iYR29,32198508-198808

main53101-87011iYR22,31..DLX198508-198808

main53101-87012iYR22,31..LE198508-198808

53111GRILLE, RADIATOR

main53111-28020-03iYR22,31..LE198508-198808

GRAY & BLACK,GRAY/BLACK

sub53111-28030

main53111-28030iYR2#,32..DLX,STD198508-198808

main53111-29195iYR2#198308-198508

53131ADOOR, HEADLAMP, RH

main53031-28020iYR29,32198508-198808

main53031-29195iYR21198308-198508

main53031-29215iYR27..CND198311-198508

main53031-87027iYR22,31..DLX198508-198808

main53031-87028iYR22,31..LE198508-198808

53131BWEATHERSTRIP, HEADLAMP ORNAMENT

main53147-87003iYR2#198308-198508

main53147-87004iYR2#,3#198508-198808

53132ADOOR, HEADLAMP, LH

main53032-28020iYR29,32198508-198808

main53032-29195iYR21198308-198508

main53032-29215iYR27..CND198311-198508

main53032-87026iYR22,31..DLX198508-198808

main53032-87027iYR22,31..LE198508-198808

53138PROTECTOR, HEADLAMP DOOR, RH

main53139-87004iYR2#198308-198508

main53145-87003iYR2#,3#198508-198808

53139PROTECTOR, HEADLAMP DOOR, LH

main53139-87004iYR2#198308-198508

main53146-87005iYR2#,3#198508-198808

53169APROTECTOR, HEADLAMP DOOR, NO.2 RH

main53179-28010iYR2#198406-198508

53179APROTECTOR, HEADLAMP DOOR, NO.2 LH

main53179-28010iYR2#198406-198508

6777220021WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-20021

7539587001CLIP, BACK DOOR MOULDING, NO.1

main75395-87001

9004468008

main90044-68008

9018905013

main90189-05013

9046712008

main90467-12008

9354055016

main93540-55016

9356054012

main93560-54012

16 parts on this diagram · 2 diagrams in section
