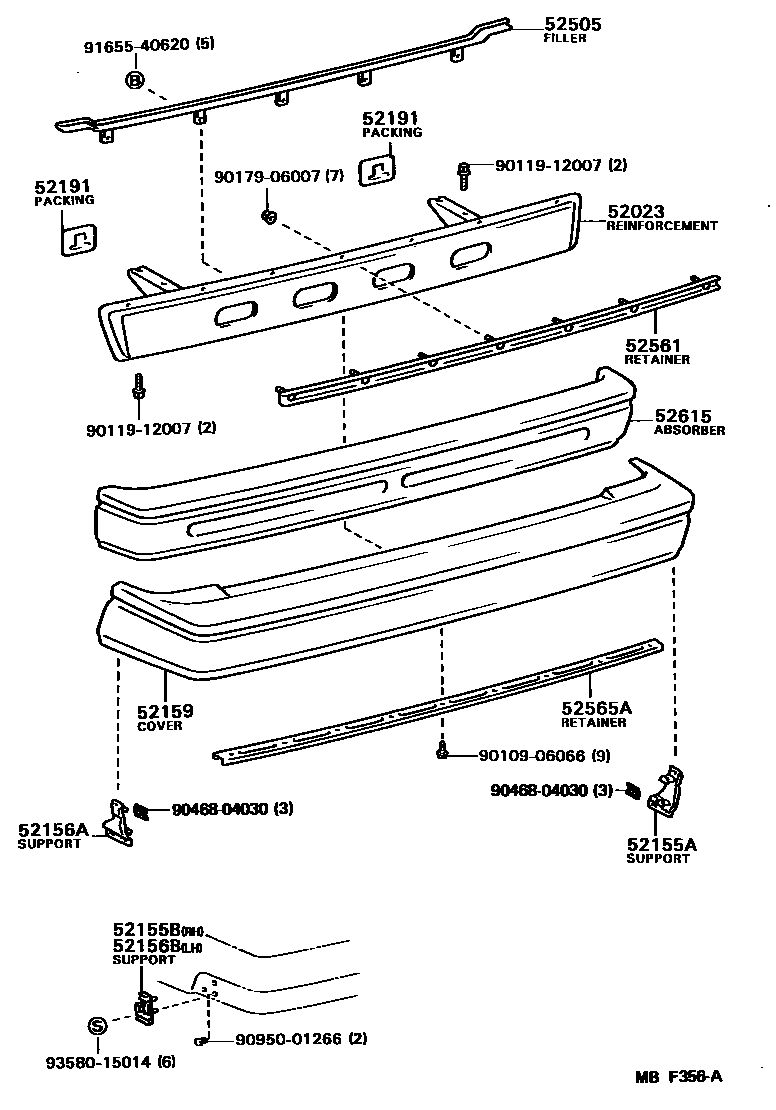

REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
*UB
P.P. BUMPER
52155BSUPPORT, REAR BUMPER SIDE, NO.2 RH
*UB
52156ASUPPORT, REAR BUMPER SIDE, LH
P.P. BUMPER
*UB
52156BSUPPORT, REAR BUMPER SIDE, NO.2 LH
*UB
52159COVER, REAR BUMPER
*UB
P.P. BUMPER
52191PACKING, REAR BUMPER STAY
*UB
P.P. BUMPER
52505FILLER SUB-ASSY, REAR BUMPER
52561RETAINER, REAR BUMPER, UPPER CENTER
52565ARETAINER, REAR BUMPER, LOWER
52615ABSORBER, REAR BUMPER ENERGY
9010906066
main90109-06066
9011912007
main90119-12007
9017906007
main90179-06007
9046804030
main90468-04030
9095001266
main90950-01266
9165540620
main91655-40620
9358015014
main93580-15014
18 parts on this diagram · 2 diagrams in section
