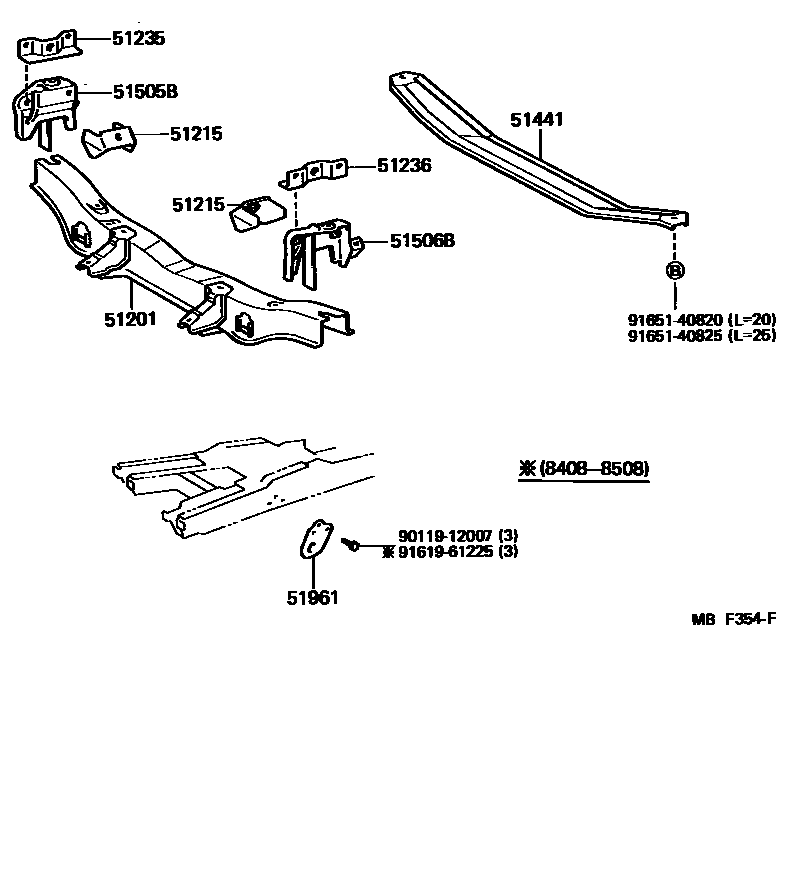

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-95D01iYR3#198608-198808

FR

main51203-95D00iYR3#198608-198708

RR

sub51203-95D01

main51203-95D01iYR3#198708-198808

RR

main51221-28900iYR2#198308-198508

main51221-28901iYR2#198508-198808

main51221-28902iYR2#198508-198808

W/PS

51215REINFORCEMENT, FRONT SUSPENSION CROSSMEMBER

main51215-87003iYR2#198308-198508

RH

sub51215-87001

main51215-87005iYR2#198308-198508

LH

sub51215-87001

main51215-87007iYR2#198508-198808

RH

sub51215-28010

main51218-87002iYR2#198508-198808

LH

sub51218-28020

51235BRACKET, FRONT SUSPENSION CROSSMEMBER, RH

main51225-87003iYR2#198308-198808

51236BRACKET, FRONT SUSPENSION CROSSMEMBER, LH

main51226-87003iYR2#198308-198808

51441COVER, ENGINE UNDER, NO.1

main51441-87001iYR2#198308-198406

STEEL

sub51441-87002

main51441-87002iYR2#198406-198808

PLASTIC

main51441-95D00iYR3#198608-198808

51505BSUPPORT SUB-ASSY, UPPER CONTROL ARM, RH

main51505-28900iYR2#198308-198508

main51505-28901iYR2#198508-198808

51506BSUPPORT SUB-ASSY, UPPER CONTROL ARM, LH

main51506-28900iYR2#198308-198508

main51506-28901iYR2#198508-198808

51961HOOK, NO.1

main51963-14040iYR2#198308-198508

main51970-87001iYR2#198508-198808

RH

main51970-95D00iYR3#198608-198808

RH

main51980-87001iYR2#198508-198808

LH

main51980-95D00iYR3#198608-198808

LH

9011912007

main90119-12007

9161961225

main91619-61225

9165140820

main91651-40820

9165140825

main91651-40825

12 parts on this diagram · 2 diagrams in section
