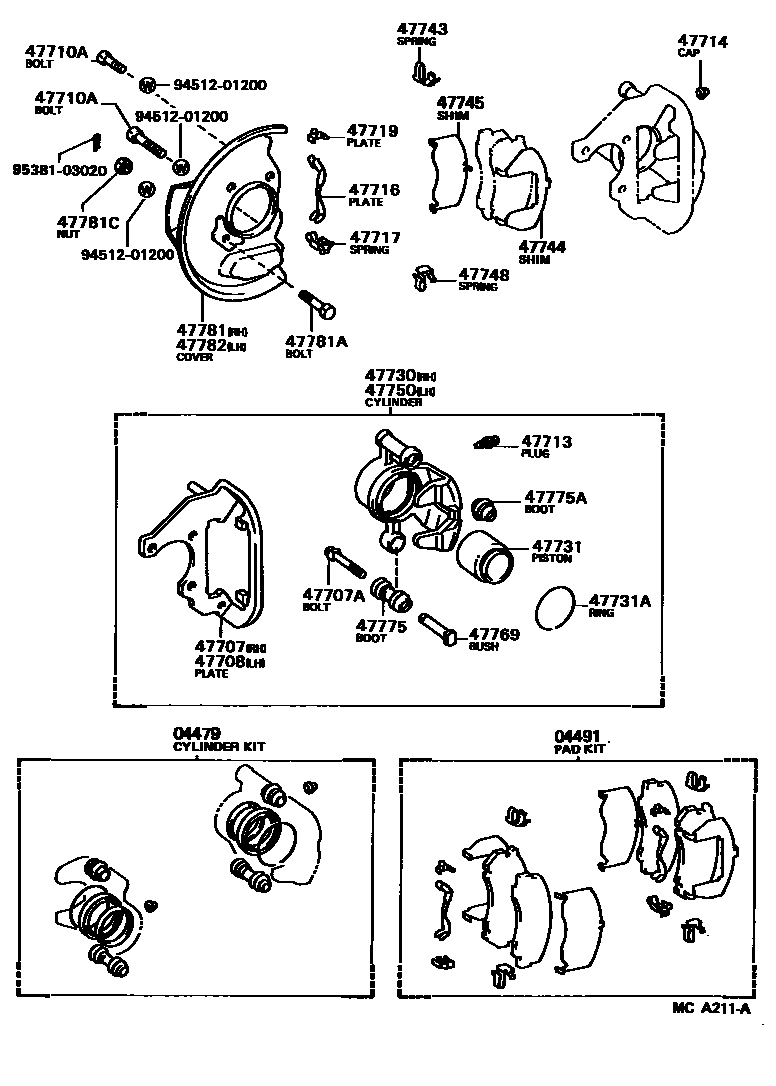

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-14070iYR2#198308-198508

main04479-28010iYR2#198508-198808

main04479-28031iYR3#198608-198808

04491PAD KIT, DISC BRAKE, FRONT

main04491-28040iYR2#198308-198404

sub04491-28060

main04491-28060iYR2#198404-198508

sub04465-28020

main04491-28090iYR2#198508-198608

sub04465-28020

main04491-28091iYR2#198608-198803

sub04465-28020

main04491-28111iYR3#198608-198701

sub04491-28112

main04491-28112iYR3#198701-198808

sub04491-28270

main04491-28140iYR2#198803-198808

sub04491-28200

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-28020iYR2#198308-198508

sub47707-28060

main47707-28040iYR3#198608-198808

main47707-28060iYR2#198508-198808

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-08384iYR2#198308-198808

main90119-10385iYR3#198608-198808

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47708-28020iYR2#198308-198508

sub47708-28060

main47708-28040iYR3#198608-198808

main47708-28060iYR2#198508-198808

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12010iYR2#198308-198808

*12-1.25PX50-26,L=50

main90101-12030iYR2#198308-198808

*12-1.25PX31-20,L=30

main90101-12123iYR3#198608-198808

*12-1.25PX28.1-20

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iYR2#,3#198308-198808

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iYR2#,3#198308-198808

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-28010iYR2#198308-198508

main47716-28020iYR2#,3#198508-198808

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-14050iYR2#,3#198308-198611

RH

main47718-14090iYR2#,3#198308-198611

LH

47719PLATE, FRONT DISC BRAKE PAD GUIDE

main47736-14030iYR2#,3#198308-198808

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-28030iYR2#198308-198508

main47730-28050iYR2#198508-198608

main47730-28060iYR3#198608-198808

main47730-28100iYR2#198608-198808

47731PISTON, FRONT DISC BRAKE

main47731-14090iYR2#198308-198508

main47731-28020iYR2#198508-198808

main47731-28030iYR3#198608-198808

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-49001iYR3#198608-198808

main90522-67001iYR2#198508-198808

main90522-69002iYR2#198308-198508

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-14040iYR2#,3#198308-198808

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-28020iYR2#198404-198808

main47744-28030iYR2#198308-198404

main47744-28040iYR3#198608-198709

main47744-28050iYR3#198709-198808

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-28030iYR2#,3#198608-198808

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14050iYR2#,3#198308-198808

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-28030iYR2#198308-198508

main47750-28050iYR2#198508-198608

main47750-28060iYR3#198608-198808

main47750-28100iYR2#198608-198808

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-28010iYR2#,3#198308-198808

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-14010iYR2#198308-198508

main47775-17010iYR2#198508-198808

main47775-28020iYR3#198608-198808

47775ABOOT, PIN

main47776-14010iYR2#,3#198308-198808

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-28040iYR2#198308-198508

main47781-28060iYR2#198508-198808

main47781-28080iYR3#198608-198808

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12001iYR2#198308-198808

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main94145-71200iYR2#198308-198808

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-28040iYR2#198308-198508

main47782-28060iYR2#198508-198808

main47782-28080iYR3#198608-198808

9451201200

main94512-01200

9538103020

main95381-03020

28 parts on this diagram · 3 diagrams in section
