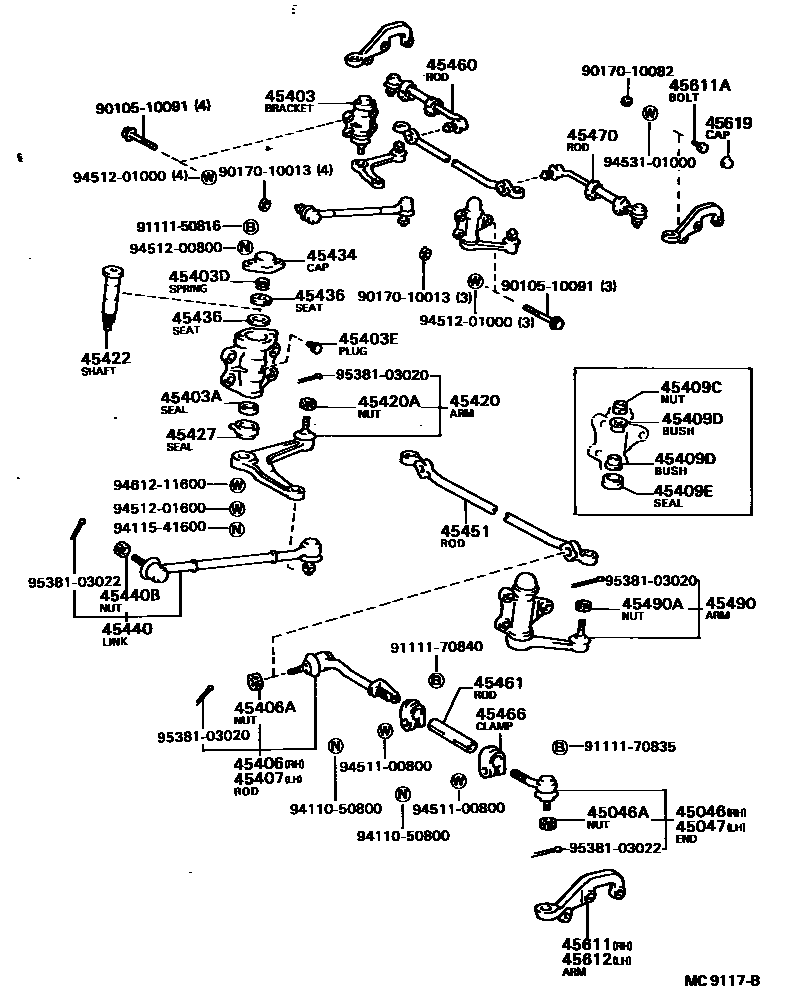

FRONT STEERING GEAR & LINK
45046END SUB-ASSY, TIE ROD, RH
sub45046-29076
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
sub45046-29076
45403BRACKET SUB-ASSY, CENTER ARM
45403ASEAL, OIL(FOR CENTER ARM BRACKET)
45403DSPRING, COMPRESSION(FOR CENTER ARM SHAFT SET)
45403EPLUG, W/HEAD TAPER SCREW(FOR CENTER ARM SHAFT)
45406ROD SUB-ASSY, TIE, RH
45406ANUT, CASTLE(FOR TIE ROD)
45407ROD SUB-ASSY, TIE, LH
45409CNUT(FOR IDLER ARM SUPPORT)
45409DBUSH(FOR IDLER ARM)
45409ESEAL, DUST(FOR IDLER ARM SUPPORT)
45420ARM ASSY, STEERING CENTER
W/POWER STEERING
45420ANUT, CASTLE(FOR STEERING CENTER ARM)
45422SHAFT, CENTER ARM
45427SEAL, CENTER ARM DUST, LOWER
45434CAP, CENTER ARM BRACKET
45440LINK ASSY, STEERING DRAG
W/POWER STEERING
45440BNUT, CASTLE(FOR STEERING DRAG LINK)
45451ROD, STEERING RELAY
45461ROD, STEERING TIE
45490ARM ASSY, STEERING IDLER
45490ANUT, CASTLE(FOR IDLER ARM)
45611ABOLT, KNUCKLE STOPPER
45619COVER, KNUCKLE STOPPER
9010510091
main90105-10091
9017010013
main90170-10013
9017010082
main90170-10082
9111150816
main91111-50816
9111170835
main91111-70835
9111170840
main91111-70840
9411050800
main94110-50800
9411541600
main94115-41600
9451100800
main94511-00800
9451200800
main94512-00800
9451201000
main94512-01000
9451201600
main94512-01600
9453101000
main94531-01000
9461211600
main94612-11600
9538103020
main95381-03020
9538103022
main95381-03022
48 parts on this diagram · 9 diagrams in section
