STEERING WHEEL

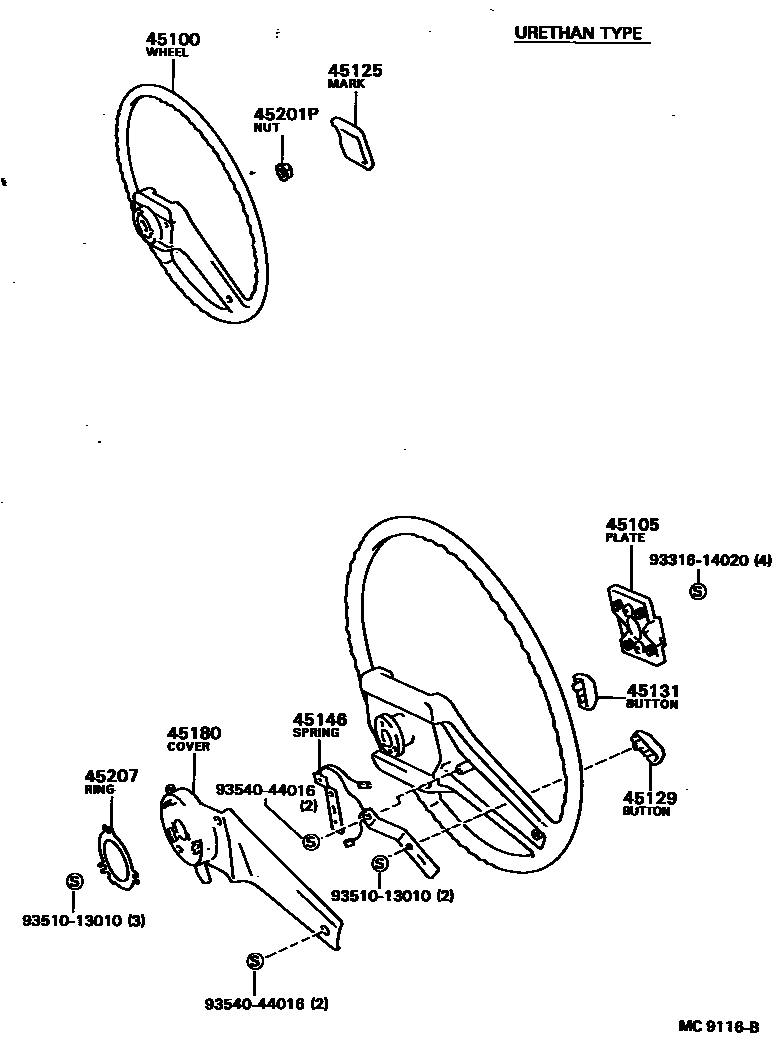

Parts diagram
45100WHEEL ASSY, STEERING
main45100-22191-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub45100-22191
main45100-22191-12i198402-198508
WINE,RED/MAROON,TRIM4#
sub45100-22191
main45100-22191-13i198308-198408
GRAY,GRAY,TRIM1#
sub45100-22191
main45100-22191-14i198408-198508
BLUE,BLUE,TRIM1#
sub45100-22191
main45100-22260-04i198508-198603
BLUE,BLUE,TRIM4#
sub45100-22260
main45100-22260-04i198508-198608
BLUE,BLUE,TRIM8#
sub45100-22260
main45100-22260-05i198508-198808
BEIGE,BEIGE,TRIM4#
sub45100-22260
main45100-22260-13i198608-198808
GRAY,GRAY,TRIM1#
sub45100-22260
main45100-22260-13i198603-198808
GRAY,GRAY,TRIM1#,4#
sub45100-22260
main45100-32010-02i198311-198508
WINE,RED/MAROON,TRIM4#
sub45100-32010
main45100-32020-02i198408-198508
WINE,RED/MAROON,TRIM4#
sub45100-32020
main45100-32020-03i198308-198408
GRAY,GRAY,TRIM1#
sub45100-32020
main45100-32020-04i198408-198508
BLUE,BLUE,TRIM1#
sub45100-32020
main45100-32020-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub45100-32020
main45100-32040-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub45100-32040
main45100-32040-05i198508-198808
BEIGE,BEIGE,TRIM4#
sub45100-32040
main45100-32040-14i198508-198608
BLUE,BLUE,TRIM8#
sub45100-32040
main45100-32060-03i198603-198808
GRAY,SHADOW GRAY,TRIM1#,4#
sub45100-32060
main45100-32060-05i198508-198808
BEIGE,BEIGE,TRIM4#
sub45100-32060
main45100-32060-14i198508-198603
BLUE,BLUE,TRIM4#
sub45100-32060
45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
main45105-22070i198308-198508
sub45105-22071
main45105-22090i198508-198808
main45105-32010i198311-198508
main45105-32020i198308-198508
main45105-32030i198508-198808
main45105-32040i198508-198808
45125MARK, STEERING WHEEL PAD
main45125-22320i198308-198508
main45125-28060-02i198311-198508
WINE,RED/MAROON,TRIM4#
main45125-28060-03i198308-198408
GRAY,GRAY,TRIM1#
main45125-28060-04i198408-198508
BLUE,BLUE,TRIM1#
main45125-28060-05i198308-198408
BEIGE,BEIGE,TRIM4#
main45125-28110i198508-198808
BLUE
main45125-28120i198508-198808
main45125-28130i198508-198808
45129BUTTON, HORN, NO.2
main45129-32010-03i198308-198408
GRAY,GRAY,TRIM1#
sub45129-32010
main45129-32010-04i198408-198508
BLUE,BLUE,TRIM1#
sub45129-32010
main45129-32010-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub45129-32010
main45129-32010-12i198311-198508
WINE,RED/MAROON,TRIM4#
sub45129-32010
45131BUTTON, HORN, NO.1
main45131-32010-02i198311-198508
WINE,RED/MAROON,TRIM4#
sub45131-32010
main45131-32010-03i198308-198408
GRAY,GRAY,TRIM1#
sub45131-32010
main45131-32010-04i198408-198508
BLUE,BLUE,TRIM1#
sub45131-32010
main45131-32010-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub45131-32010
45146SPRING, HORN BUTTON CONTACT
main45146-32010i198311-198508
main45146-32020i198308-198508
45180COVER SUB-ASSY, STEERING WHEEL
main45180-32010-02i198408-198508
WINE,RED/MAROON,TRIM4#
sub45180-32010
main45180-32010-03i198308-198408
GRAY,GRAY,TRIM1#
sub45180-32010
main45180-32010-04i198408-198508
BLUE,BLUE,TRIM1#
sub45180-32010
main45180-32010-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub45180-32010
main45180-32020-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub45180-32020
main45180-32020-05i198508-198808
BEIGE,BEIGE,TRIM4#
sub45180-32020
main45180-32020-14i198508-198608
BLUE,BLUE,TRIM8#
sub45180-32020
45201PNUT, STEERING WHEEL SET
main90179-12086i198308-198808
45207RING, HORN CONTACT
main45176-20030i198311-198808
main45176-22050i198308-198808
main45176-32010i198308-198508
9331614020
main93316-14020
9351013010
main93510-13010
9354044016
main93540-44016

12 parts on this diagram · 6 diagrams in section
