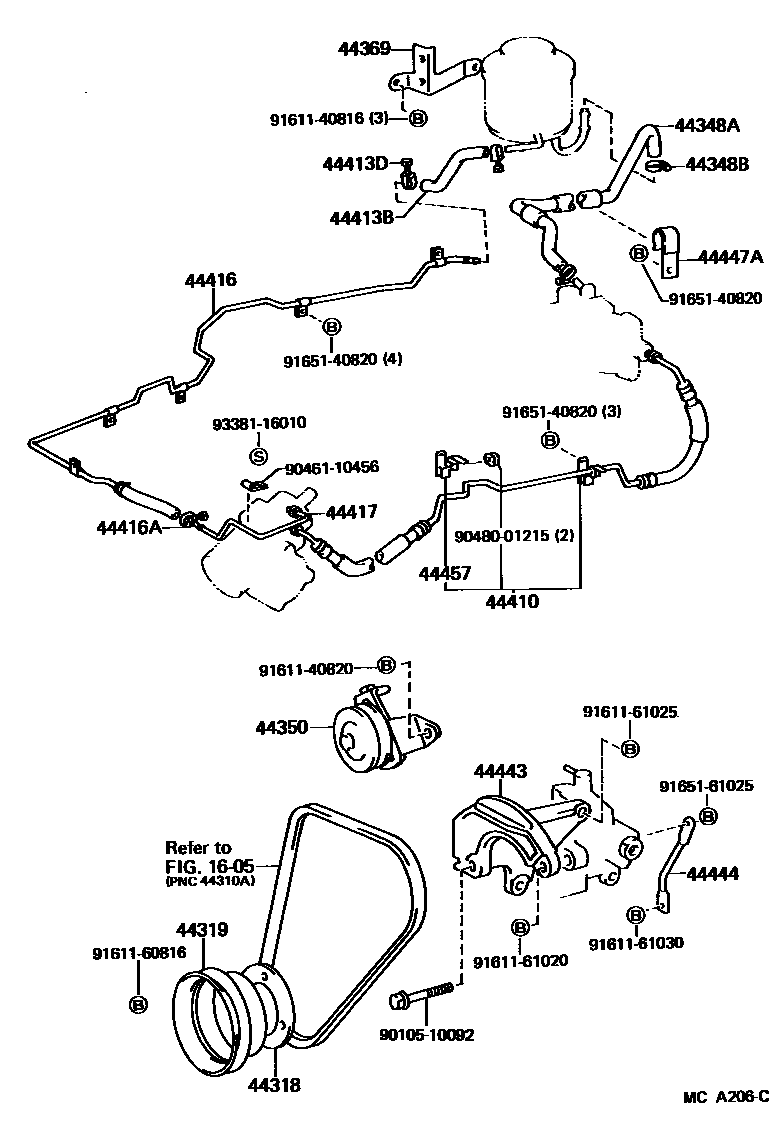

POWER STEERING TUBE
1605
44318SPACER, VANE PUMP DRIVE PULLEY
44319PULLEY, VANE PUMP DRIVE
44348AHOSE, OIL RESERVOIR TO PUMP, NO.1
44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
44350PULLEY ASSY, POWER STEERING IDLE
44369BRACKET, OIL RESERVOIR, NO.1
44413BHOSE(FOR RESERVOIR TANK INLET)
sub44412-28130
44416TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416ACLAMP(FOR RETURN HOSE)
44417TUBE, RETURN, NO.2
44443BRACKET, PUMP
44447ABRACKET, HOSE SUPPORT, NO.1
44457BRACKET, TUBE SUPPORT, NO.1
9010510092
main90105-10092
9046110456
main90461-10456
9048001215
main90480-01215
9161140816
main91611-40816
9161140820
main91611-40820
9161160816
main91611-60816
9161161020
main91611-61020
9161161025
main91611-61025
9161161030
main91611-61030
9165140820
main91651-40820
9165161025
main91651-61025
9338116010
main93381-16010
29 parts on this diagram · 3 diagrams in section
