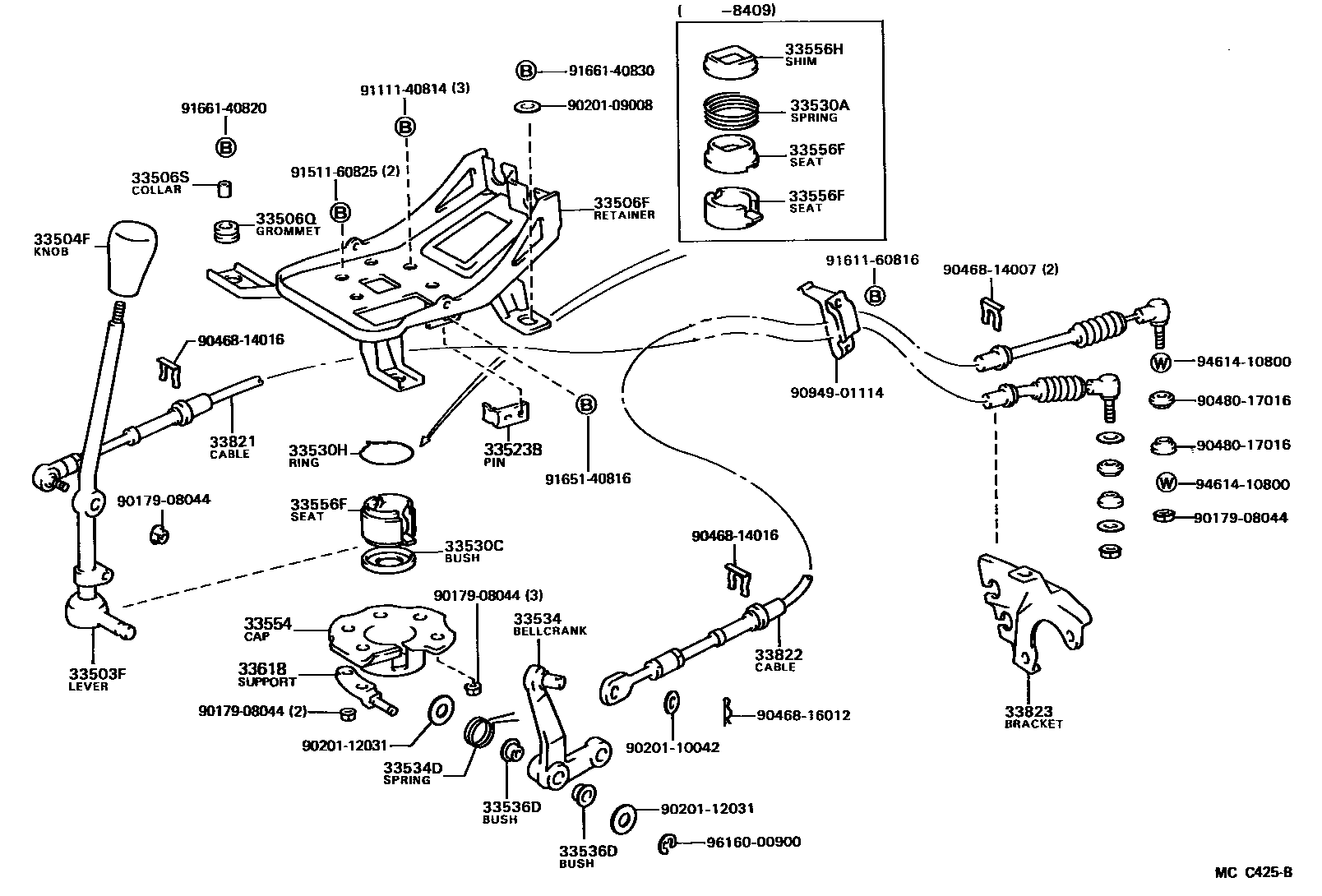

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-28040iYR2#..4FC198308-198408

main33503-28041iYR2#..4FC198408-198508

main33503-28070iYR2#,3#..5F198308-198808

main33503-28150iYR29,32..4FC198508-198808

HARD TYPE

main33503-28160iYR29,32..4FC..USA198508-198808

SOFT TYPE

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-14070-05iYR27..5F..CND198311-198408

BEIGE,BEIGE,TRIM4#

sub33504-14070

sub33504-14050

main33504-14070-13iYR29,32..5F198603-198808

GRAY,HARD TYPE,GRAY,TRIM1#,4#

sub33504-14070

sub33504-14050

main33504-14070-14iYR29..5F198508-198603

BLUE,BLUE,TRIM4#

sub33504-14070

sub33504-14050

main33504-14070-22iYR27..5F..CND198408-198508

WINE,WINE,TRIM4#

sub33504-14070

sub33504-14050

main33504-14070-25iYR29,32..5F198508-198808

BEIGE,HARD TYPE,BEIGE,TRIM4#

sub33504-14070

sub33504-14050

main33504-24010-05iYR21..5F198308-198408

BEIGE,BEIGE,TRIM4#

sub33504-24010

main33504-24010-12iYR21..5F198408-198508

WINE,RED/MAROON,TRIM4#

sub33504-24010

main33504-24010-20iYR29,32..5F..USA198603-198808

GRAY,SOFT TYPE,GRAY,TRIM1#,4#

sub33504-24010

main33504-24010-20iYR22,31..5F..LE198608-198808

GRAY,GRAY,TRIM1#

sub33504-24010

main33504-24010-23iYR21..5F..LE198308-198408

GRAY,GRAY,TRIM1#

sub33504-24010

main33504-24010-24iYR21..5F..LE198408-198508

BLUE,BLUE,TRIM1#

sub33504-24010

main33504-24010-25iYR22..5F198508-198605

BEIGE,BEIGE,TRIM4#

sub33504-24010

main33504-24010-25iYR22..5F198508-198605

BEIGE,SOFT TYPE,BEIGE,TRIM4#

sub33504-24010

main33504-24010-40iYR22,31..5F198605-198808

BEIGE,BEIGE,TRIM4#

sub33504-24010

main33504-24010-40iYR22,31..5F198605-198808

BEIGE,SOFT TYPE,BEIGE,TRIM4#

sub33504-24010

main33504-24010-44iYR29..5F..USA198508-198603

BLUE,SOFT TYPE,BLUE,TRIM4#

sub33504-24010

main33504-24010-44iYR22..5F..CND198508-198608

BLUE,BLUE,TRIM8#

sub33504-24010

main33542-10020-02iYR21..4FC198408-198508

WINE,WINE,TRIM4#

sub33542-10020

main33542-10020-14iYR21..4FC..LE198408-198508

BLUE,BLUE,TRIM1#

sub33542-10020

main33542-12110-12iYR27..4FC..CND198408-198508

WINE,RED/MAROON,TRIM4#

sub33542-12110

main33542-24030-05iYR21..4FC198308-198408

BEIGE,BEIGE,TRIM4#

sub33542-24030

main33542-24030-23iYR21..4FC..LE198308-198408

GRAY,GRAY,TRIM1#

sub33542-24030

main33542-30110-25iYR27..4FC..CND198311-198408

BEIGE,BEIGE,TRIM4#

sub33542-30110

sub33542-24030

main33542-32030-03iYR29,32..4FC198603-198808

GRAY,HARD TYPE,SHADOW GRAY,TRIM1#,4#

sub33542-32030

main33542-32030-05iYR29,32..4FC198508-198808

BEIGE,HARD TYPE,BEIGE,TRIM4#

sub33542-32030

main33542-32030-14iYR29..4FC198508-198603

BLUE,BLUE,TRIM4#

sub33542-32030

main33542-32050-03iYR29,32..4FC..USA198603-198808

GRAY,SOFT TYPE,SHADOW GRAY,TRIM1#,4#

sub33542-32050

main33542-32050-03iYR22,31..4FC..LE198608-198808

GRAY,SHADOW GRAY,TRIM1#

sub33542-32050

main33542-32050-05iYR22,31..4FC198508-198808

BEIGE,SOFT TYPE,BEIGE,TRIM4#

sub33542-32050

main33542-32050-05iYR29,32..4FC..USA198508-198808

BEIGE,BEIGE,TRIM4#

sub33542-32050

main33542-32050-14iYR29..4FC..USA198508-198603

BLUE,SOFT TYPE,BLUE,TRIM4#

sub33542-32050

main33542-32050-14iYR22..4FC..LE198508-198608

BLUE,BLUE,TRIM8#

sub33542-32050

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-28040iYR2#..5F198308-198508

main33506-28100iYR2#..5F198508-198608

main33506-28110iYR2#,3#..5F198608-198808

33506QGROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main90480-13012iYR2#,3#..5F198308-198808

33506SCOLLAR, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main90387-09011iYR2#,3#..5F198308-198808

33523BPIN, SHIFT LEVER (FOR FLOOR SHIFT)

main33523-28020iYR2#,3#..5F198308-198808

33530ASPRING, COMPRESSION (FOR SHIFT LEVER)

main90501-10075iYR2#..5F198308-198409

33530CBUSH (FOR SHIFT LEVER)

main90385-24001iYR2#,3#..5F198409-198808

33530HRING, SNAP (FOR SHIFT LEVER)

main90520-34002iYR2#,3#..5F198409-198808

33534BELLCRANK, SELECTING

main33534-28030iYR2#,3#..5F198308-198808

33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

main90508-28001iYR2#,3#..5F198308-198808

33536DBUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT)

main90386-12013iYR2#,3#..5F198308-198808

33554CAP, SHIFT LEVER

main33554-28020iYR2#,3#..5F198308-198808

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-17010iYR2#,3#..5F198409-198808

main33556-28010iYR2#..5F198308-198409

UPR

sub33556-20020

sub90520-36018

main33556-28020iYR2#..5F198308-198409

LWR

sub33556-20020

sub90520-36018

33556HSHIM (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90564-36001iYR2#..5F198308-198409

33618SUPPORT, SELECTING BELLCRANK, NO.1

main33618-28010iYR2#,3#..5F198308-198808

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-28010iYR2#,3#..5F198308-198609

sub33821-28011

main33821-28011iYR2#,3#..5F198609-198808

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-28010iYR2#,3#..5F198308-198609

sub33822-28011

main33822-28011iYR2#,3#..5F198609-198808

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-28010iYR2#,3#..4FC198308-198808

main33823-28020iYR2#..5F198308-198808

main33823-28080iYR3#..5F198608-198808

9017908044

main90179-08044

9020109008

main90201-09008

9020110042

main90201-10042

9020112031

main90201-12031

9046814007

main90468-14007

9046814016

main90468-14016

9046816012

main90468-16012

9048017016

main90480-17016

9094901114

main90949-01114

9111140814

main91111-40814

9151160825

main91511-60825

9161160816

main91611-60816

9165140816

main91651-40816

9166140820

main91661-40820

9166140830

main91661-40830

9461410800

main94614-10800

9616000900

main96160-00900

36 parts on this diagram · 3 diagrams in section
