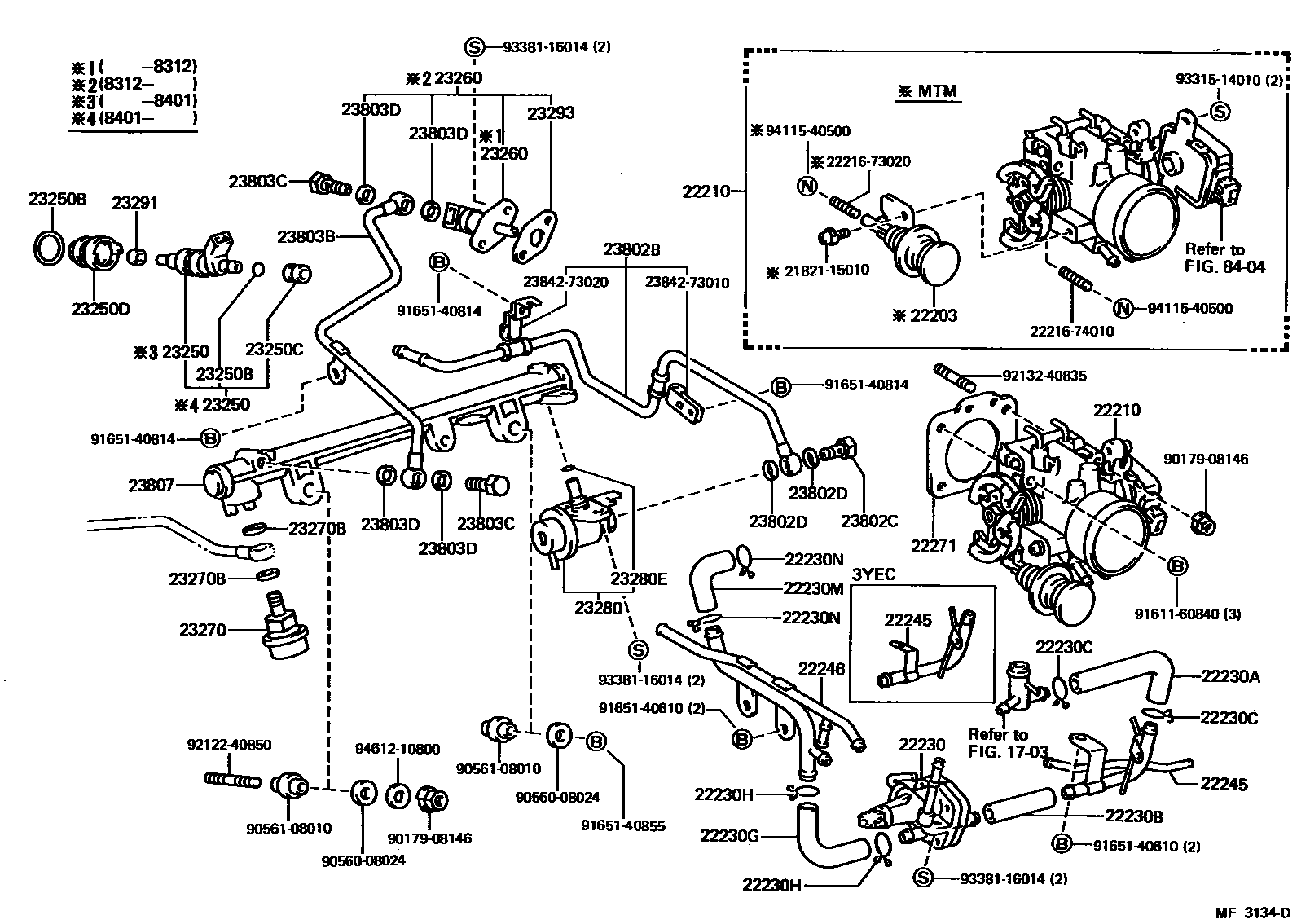

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

1703

22203DASH POT SUB-ASSY(FOR THROTTLE BODY)

main22202-73021i3YEC..YR2#..5F198308-198508

main22202-73022i4YEC..YR2#,3#..5F198508-198808

22210BODY ASSY, THROTTLE

main22210-73020i3YEC..YR2#..5F198308-198408

main22210-73021i3YEC..YR2#..5F198408-198508

main22210-73022i4YEC..YR2#,3#..5F198508-198808

main22210-73030i3YEC..YR2#..4FC198308-198408

main22210-73031i3YEC..YR2#..4FC198408-198508

main22210-73032i4YEC..YR2#,3#..4FC198508-198808

22230VALVE ASSY, AUXILIARY AIR

main22230-73010i3YEC..YR2#198308-198508

sub22230-73011

main22230-73011i4YEC..YR2#,3#198508-198808

22230AHOSE, AUXILIARY AIR VALVE, NO.1

main22233-73010i3YEC,4YEC..YR2#,3#198308-198808

22230BHOSE, AUXILIARY AIR VALVE, NO.2

main90445-21008i3YEC,4YEC..YR2#,3#198308-198808

22230CCLIP, AUXILIARY AIR VALVE HOSE, NO.1

main90467-19003i3YEC,4YEC..YR2#,3#198308-198808

22230GHOSE, AUXILIARY AIR VALVE, NO.3

main22236-73010i3YEC..YR2#198308-198508

main22236-73011i4YEC..YR2#,3#198508-198808

22230HCLIP, AUXILIARY AIR VALVE HOSE, NO.3

main90467-19003i3YEC,4YEC..YR2#,3#198308-198808

22230MHOSE, AUXILIARY AIR VALVE, NO.4

main22237-73010i3YEC,4YEC..YR2#,3#198308-198808

22230NCLIP, AUXILIARY AIR VALVE, NO.4

main90467-19003i3YEC,4YEC..YR2#,3#198308-198808

22245PIPE, AUXILIARY AIR, NO.2

main22245-73010i3YEC..YR2#198308-198508

main22245-73011i4YEC..YR2#,3#198508-198808

22246PIPE, AUXILIARY AIR, NO.3

main22246-73010i3YEC..YR2#198308-198508

main22246-73011i4YEC..YR2#,3#198508-198808

sub22246-73012

22271GASKET, THROTTLE BODY

main22271-73010i3YEC,4YEC..YR2#,3#198308-198808

sub22271-73011

23250INJECTOR ASSY, FUEL

main23209-45011i3YEC,4YEC..YR2#,3#198401-198708

sub23209-43010

main23209-73010i4YEC..YR2#,3#198708-198808

main23250-45011i3YEC..YR2#198308-198401

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i3YEC,4YEC..YR2#,3#198308-198808

DELIVERY PIPE SIDE

main90301-23004i3YEC,4YEC..YR2#,3#198308-198808

MANIFOLD SIDE

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i3YEC,4YEC..YR2#,3#198308-198808

23250DSPACER(FOR FUEL INJECTOR)

main90561-10002i3YEC,4YEC..YR2#,3#198308-198808

23260INJECTOR ASSY, COLD START FUEL

main23260-73010i3YEC..YR2#198308-198312

sub23260-79045

main23260-79045i3YEC..YR2#198312-198508

main23260-79085i4YEC..YR2#,3#198508-198808

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-52011i3YEC,4YEC..YR2#,3#198308-198702

sub23207-16020

main23270-73010i4YEC..YR2#,3#198702-198808

sub23270-50010

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23232-28010i3YEC,4YEC..YR2#,3#198308-198808

DAMPER SIDE

sub23232-41081

main90430-12005i3YEC,4YEC..YR2#,3#198308-198808

PIPE SIDE

23280REGULATOR ASSY, FUEL PRESSURE

main23280-73010i3YEC,4YEC..YR2#,3#198308-198708

main23280-73040i4YEC..YR2#,3#198708-198808

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i3YEC,4YEC..YR2#,3#198308-198808

23291INSULATOR, INJECTOR VIBRATION

main23291-73010i3YEC,4YEC..YR2#,3#198308-198808

23293GASKET, COLD START INJECTOR

main23293-70010i3YEC..YR2#198308-198508

main23293-73010i4YEC..YR2#,3#198508-198808

sub23293-73011

23802BPIPE SUB-ASSY, FUEL, NO.2

main23802-73010i3YEC..YR2#198308-198508

main23802-73011i4YEC..YR2#,3#198508-198708

main23802-73020i4YEC..YR2#,3#198708-198808

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-08003i3YEC,4YEC..YR2#198308-198605

main90401-08004i4YEC..YR2#,3#198605-198808

23802DGASKET(FOR FUEL PIPE NO.2)

main90430-08007i3YEC,4YEC..YR2#198308-198605

main90430-08011i4YEC..YR2#,3#198605-198808

23803BPIPE SUB-ASSY, FUEL, NO.3

main23803-73010i3YEC..YR2#198308-198508

main23803-73011i4YEC..YR2#,3#198508-198808

23803CGASKET(NOZZLE LEKAGE PIPE NO.3)

main90401-08003i3YEC,4YEC..YR2#198308-198605

main90401-08004i4YEC..YR2#,3#198605-198808

23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)

main90430-08005i3YEC,4YEC..YR2#198308-198605

main90430-08009i4YEC..YR2#,3#198605-198808

sub90430-08014

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-73010i3YEC,4YEC..YR2#,3#198308-198808

8404

2182115010SCREW, 2ND THROTTLE VALVE SET

main21821-15010

2221673020SCREW, DASH POT ADJUSTING

main22216-73020

2221674010SCREW, DASH POT ADJUSTING

main22216-74010

2384273010CLAMP, FUEL PIPE(HOSE), NO.2

main23842-73010

2384273020CLAMP, FUEL PIPE(HOSE), NO.2

main23842-73020

9017908146

main90179-08146

9056008024

main90560-08024

9056108010

main90561-08010

9161160840

main91611-60840

9165140610

main91651-40610

9165140814

main91651-40814

9165140855

main91651-40855

9212240850

main92122-40850

9213240835

main92132-40835

9331514010

main93315-14010

9338116014

main93381-16014

9411540500

main94115-40500

9461210800

main94612-10800

51 parts on this diagram · 3 diagrams in section
