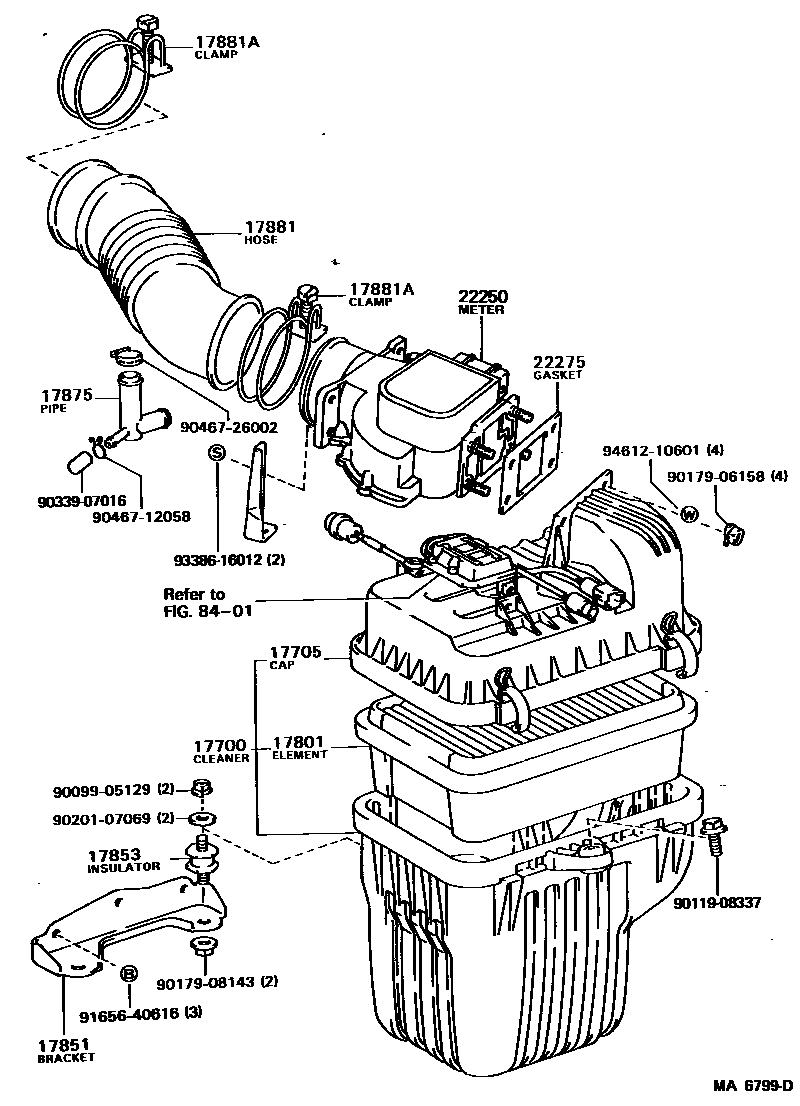

AIR CLEANER

0001 1 0002 1

17700CLEANER ASSY, AIR

main17700-73040i3YEC..YR2#198308-198505

sub17700-73041

main17700-73041i3YEC,4YEC..YR2#,3#198505-198708

sub17700-73042

main17700-73042i4YEC..YR2#,3#198708-198808

sub17700-73043

17705CAP SUB-ASSY, AIR CLEANER

main17705-73010i3YEC..YR2#198308-198505

sub17705-73011

main17705-73011i3YEC,4YEC..YR2#,3#198505-198808

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-70010i3YEC,4YEC..YR2#,3#198308-198808

17851BRACKET, AIR CLEANER SUPPORT

main17851-73020i3YEC,4YEC..YR2#,3#198308-198808

17853INSULATOR, AIR CLEANER BRACKET

main17853-73020i3YEC,4YEC..YR2#,3#198308-198808

17875PIPE, INTAKE AIR CONNECTOR

main17875-73010i3YEC..YR2#198308-198508

sub17875-73011

sub90339-03002

main17875-73011i4YEC..YR2#,3#198508-198808

17881HOSE, AIR CLEANER, NO.1

main17881-73020i3YEC,4YEC..YR2#,3#198308-198808

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10710i3YEC,4YEC..YR2#,3#198308-198808

INTAKE MANIFOLD SIDE

main96111-10800i3YEC,4YEC..YR2#,3#198308-198808

AIR CLEANER SIDE

22250METER ASSY, INTAKE AIR FLOW

main22250-73010i3YEC,4YEC..YR2#,3#198308-198808

22275GASKET, AIR FLOW METER

main22275-41010i3YEC,4YEC..YR2#,3#198308-198808

8401

9009905129

main90099-05129

9011908337

main90119-08337

9017906158

main90179-06158

9017908143

main90179-08143

9020107069

main90201-07069

9033907016

main90339-07016

9046712058

main90467-12058

9046726002

main90467-26002

9165640616

main91656-40616

9338616012

main93386-16012

9461210601

main94612-10601

22 parts on this diagram · 2 diagrams in section
