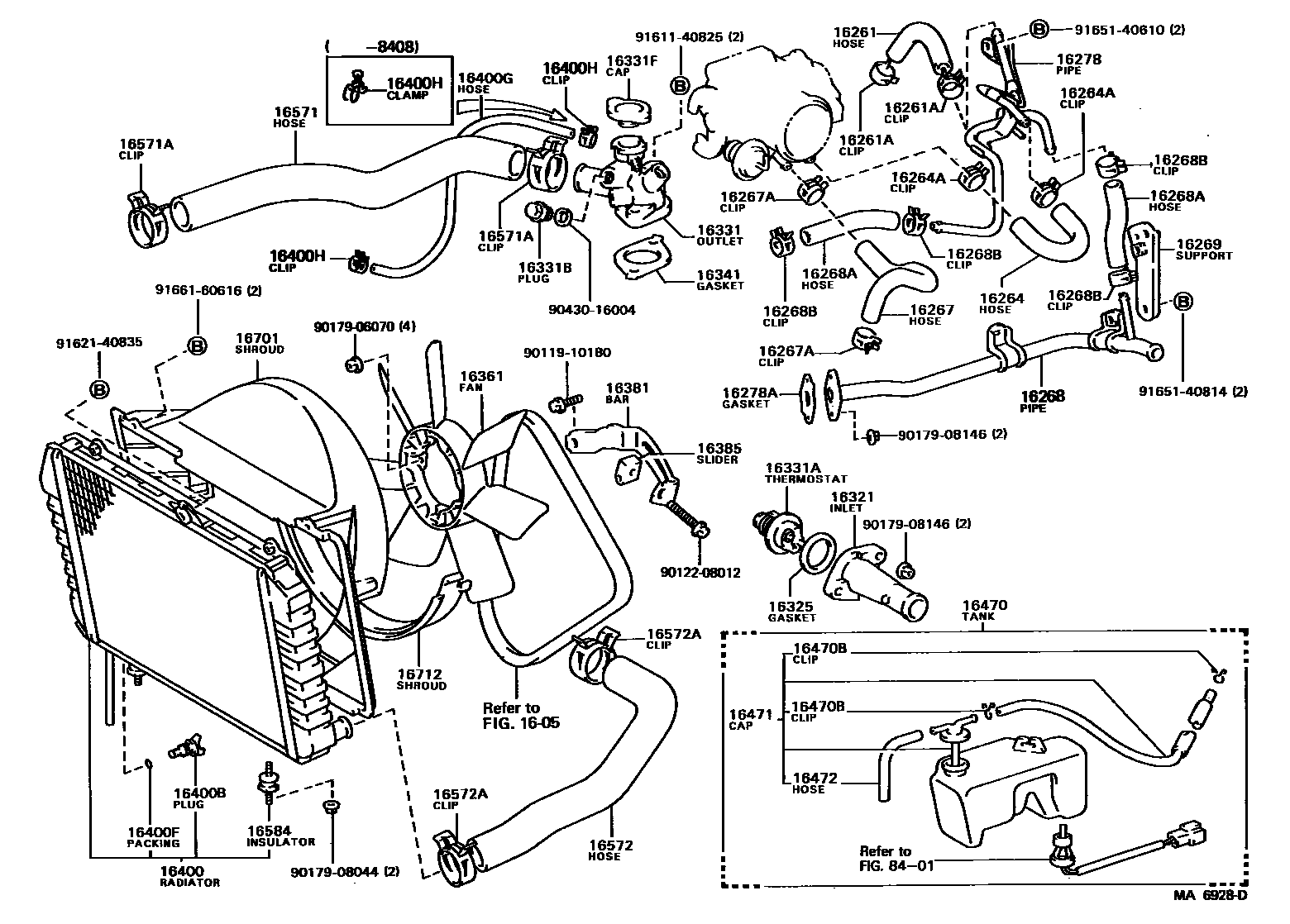

RADIATOR & WATER OUTLET

0001 1 0002 1

1605

16261HOSE, WATER BY-PASS

main16261-73070i4YEC..YR2#,3#198508-198808

main99556-10110i3YEC..YR2#198308-198508

*H,L=110

sub99556-10185

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13001i3YEC,4YEC..YR2#,3#198308-198808

sub96135-51300

16264HOSE, WATER BY-PASS, NO.2

main16264-73020i3YEC..YR2#198308-198508

main16264-73021i4YEC..YR2#,3#198508-198808

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13001i3YEC,4YEC..YR2#,3#198308-198808

sub96135-51300

16267HOSE, WATER BY-PASS, NO.3

main16267-73010i3YEC,4YEC..YR2#,3#198308-198808

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-13001i3YEC,4YEC..YR2#,3#198308-198808

sub96135-51300

16268PIPE, WATER BY-PASS, NO.1

main16268-73010i3YEC..YR2#198308-198502

main16268-73011i4YEC..YR2#198508-198808

main16268-73060i4YEC..YR3#..4FC198608-198808

main16268-73070i3YEC..YR2#198502-198508

16268AHOSE(FOR WATER BY-PASS PIPE)

main99556-10110i3YEC,4YEC..YR2#,3#198308-198808

*H,L=110

sub99556-10185

16268BCLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)

main90467-13001i3YEC,4YEC..YR2#,3#198308-198808

sub96135-51300

16269SUPPORT, WATER BY-PASS PIPE

main16269-73010i3YEC..YR2#198308-198508

main16269-73011i4YEC..YR2#,3#198508-198808

sub16269-73020

16278PIPE, WATER BY-PASS, NO.2

main16278-73010i3YEC..YR2#198308-198508

main16278-73011i4YEC..YR2#,3#198508-198808

16278AGASKET, WATER BY-PASS

main17175-72010i3YEC,4YEC..YR2#,3#198308-198808

sub17175-72011

16321INLET, WATER

main16321-71010i3YEC,4YEC..YR2#,3#198308-198808

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i3YEC,4YEC..YR2#,3#198308-198808

sub16325-63011

16331OUTLET, WATER

main16304-73010i3YEC,4YEC..YR2#,3#198308-198808

16331ATHERMOSTAT

main90916-03046i3YEC..YR2#198308-198502

*WAX 82-95

main90916-03069i3YEC,4YEC..YR2#,3#198502-198808

*WAX 82-95

sub90916-03046

16331BPLUG(FOR WATER OUTLET)

main90341-16008i3YEC,4YEC..YR2#,3#198311-198808

main90341-16009i3YEC..YR21198308-198311

16331FCAP SUB-ASSY(FOR WATER OUTLET)

main16401-15210i4YEC..YR2#,3#198510-198808

TOYO RADIATOR

main16401-63010i3YEC,4YEC..YR2#,3#198308-198808

DENS0

16341GASKET, WATER OUTLET

main16341-71010i3YEC,4YEC..YR2#,3#198308-198808

sub16341-71011

16361FAN

main16361-38010i3YEC,4YEC..YR2#,3#198308-198708

main16361-73030i4YEC..YR2#,3#198708-198808

16381BAR, FAN BELT ADJUSTING

main16381-73010i3YEC..YR2#198308-198508

sub16381-73011

main16381-73011i4YEC..YR2#,3#198508-198808

16385SLIDER, FAN BELT ADJUSTING

main16385-71010i3YEC,4YEC..YR2#,3#198308-198808

16400RADIATOR ASSY

main16400-73040i3YEC..YR2#..5F198308-198408

sub16400-73120

main16400-73050i3YEC..YR2#..4FC198308-198408

sub16400-73120

main16400-73110i3YEC..YR2#..5F198408-198508

main16400-73120i3YEC..YR2#..4FC198408-198508

main16400-73150i4YEC..YR2#..5F198508-198808

sub16400-73160

main16400-73160i4YEC..YR2#..4FC198508-198808

main16400-73170i4YEC..YR3#..5F198608-198808

sub16400-73190

main16400-73190i4YEC..YR3#..4FC198608-198808

16400BPLUG, RADIATOR DRAIN COCK

main16417-24200i3YEC..YR2#..5F198408-198808

main90910-09054i3YEC..YR2#..4FC198308-198808

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24200i4YEC..YR3#198408-198808

main96711-19007i3YEC..YR2#..4FC198308-198808

16400GHOSE(FOR RADIATOR BREATHER)

main99552-10400i3YEC..YR2#198308-198508

TOKAI GOMU

sub99556-10460

main99553-10400i3YEC..YR2#198308-198508

TOYOTA GOSEI

sub99555-10500

main99555-10400i4YEC..YR2#198508-198808

*H,L=400

sub99555-10500

main99555-10500i4YEC..YR3#198608-198808

L=500

16400HCLAMP OR CLIP(FOR RADIATOR BREATHER HOSE)

main90460-14001i3YEC..YR2#198308-198408

OUTLET SIDE

main90467-13001i3YEC..YR2#198308-198408

RADIATOR SIDE

sub96135-51300

main90467-13001i3YEC,4YEC..YR2#,3#198408-198808

sub96135-51300

16470TANK ASSY, RADIATOR RESERVE

main16470-71010i3YEC..YR27..CND198308-198408

main16470-71020i3YEC..YR21..LE198308-198508

main16470-73010i4YEC..YR2#,3#198508-198808

sub16470-73011

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i3YEC,4YEC..YR2#,3#198308-198808

16471CAP SUB-ASSY, RESERVE TANK

main16471-71010i3YEC..YR2#198308-198508

main16471-73010i4YEC..YR2#,3#198508-198808

sub16471-73011

16472HOSE, BREATHER

main85338-30010i4YEC..YR2#,3#198608-198808

main90099-33393i3YEC..YR2#198308-198508

16571HOSE, RADIATOR, INLET

main16571-71040i3YEC,4YEC..YR2#198408-198808

main16571-73020i3YEC..YR2#198308-198408

main16571-73050i4YEC..YR3#198608-198808

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i3YEC,4YEC..YR2#,3#198308-198808

sub90467-37003

16572HOSE, RADIATOR, OUTLET

main16572-71010i3YEC,4YEC..YR2#198308-198808

main16572-73040i4YEC..YR3#198608-198808

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37001i3YEC,4YEC..YR2#,3#198308-198808

sub90467-37003

16584INSULATOR, RADIATOR MOUNTING

main17853-38010i3YEC,4YEC..YR2#198308-198808

16701SHROUD SUB-ASSY, FAN

main16711-73020i3YEC,4YEC..YR2#198308-198808

main16711-73040i4YEC..YR3#198608-198808

16712SHROUD, FAN, NO.2

main16712-71010i3YEC,4YEC..YR2#198308-198808

main16712-73020i4YEC..YR3#198608-198808

8401

9011910180

main90119-10180

9012208012

main90122-08012

9017906070

main90179-06070

9017908044

main90179-08044

9017908146

main90179-08146

9043016004

main90430-16004

9161140825

main91611-40825

9162140835

main91621-40835

9165140610

main91651-40610

9165140814

main91651-40814

9166160616

main91661-60616

51 parts on this diagram · 2 diagrams in section
