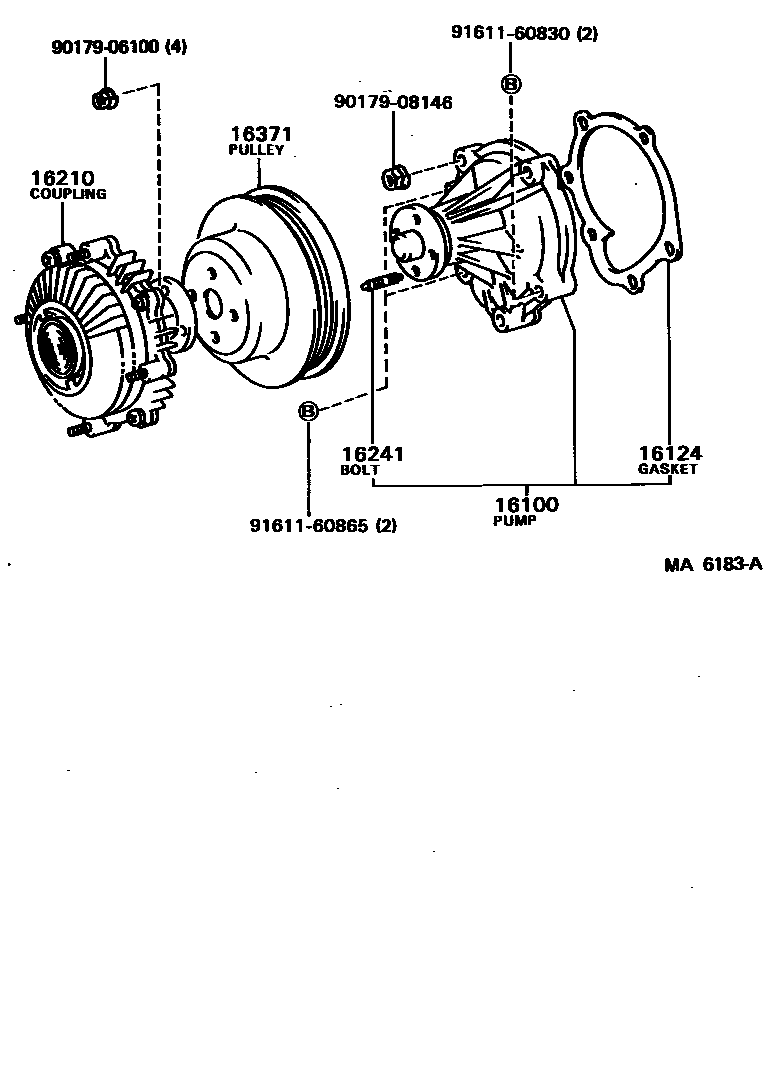

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-79035i3YEC,4YEC..YR2#,3#198308-198704

sub16100-79036

main16100-79036i4YEC..YR2#,3#198704-198808

sub16100-79037

16124GASKET, WATER PUMP COVER

main16124-71010i3YEC,4YEC..YR2#,3#198308-198808

sub16124-71011

16210COUPLING ASSY, FLUID

main16210-31010i3YEC..YR2#198308-198408

main16210-73010i3YEC,4YEC..YR2#,3#198408-198808

main16210-73020i4YEC..YR3#..4FC198708-198808

sub16210-73041

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16192-70010i3YEC,4YEC..YR2#,3#198308-198808

16371PULLEY, FAN

main16371-73010i3YEC..YR21198308-198309

sub16371-73011

main16371-73011i3YEC,4YEC..YR2#,3#198309-198808

9017906100

main90179-06100

9017908146

main90179-08146

9161160830

main91611-60830

9161160865

main91611-60865

9 parts on this diagram · 1 diagram in section
