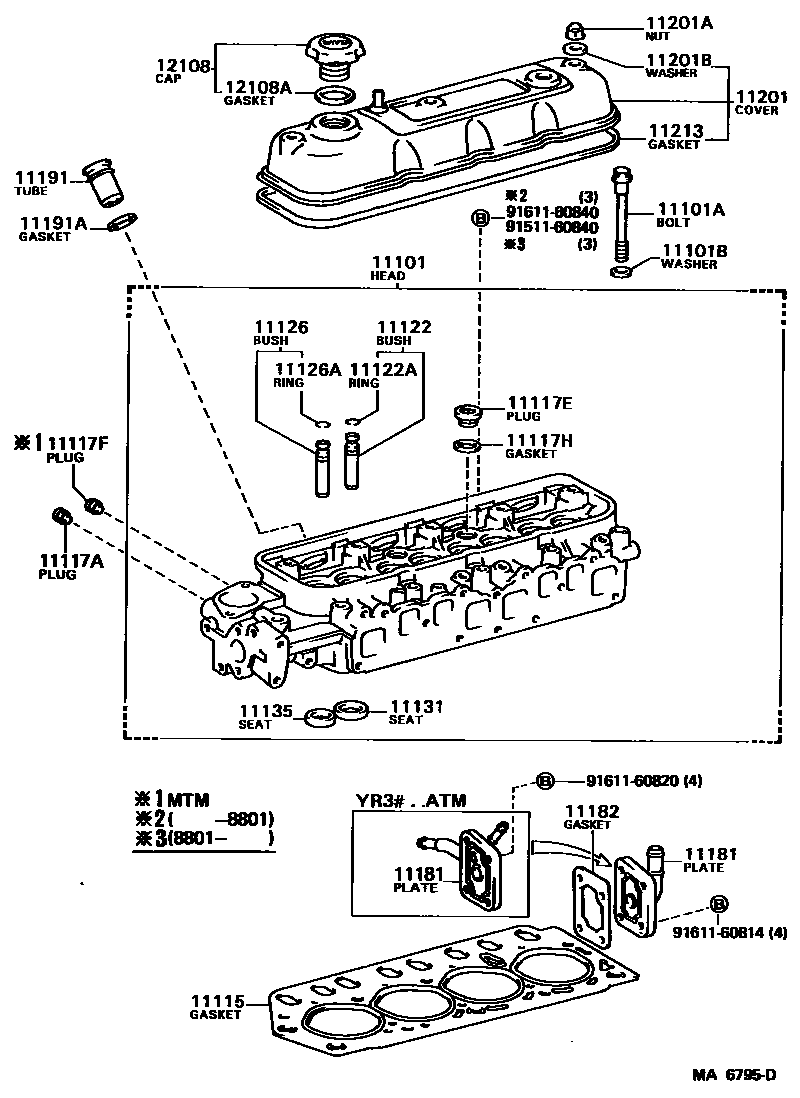

CYLINDER HEAD

11101HEAD SUB-ASSY, CYLINDER

main11101-71020i3YEC..YR2#198308-198508

sub11101-71010

sub90340-18003

main11101-73020i4YEC..YR2#,3#198508-198808

11101ABOLT(FOR CYLINDER HEAD SET)

main90105-12056i3YEC,4YEC..YR2#,3#198308-198808

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-13021i3YEC,4YEC..YR2#,3#198308-198808

11115GASKET, CYLINDER HEAD

main11115-71010i3YEC..YR2#198308-198508

sub11115-71011

main11115-73010i4YEC..YR2#,3#198508-198808

sub11115-73030

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53002i3YEC..YR2#198308-198407

main90344-53011i3YEC,4YEC..YR2#,3#198407-198808

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-20002i3YEC,4YEC..YR2#,3#198308-198808

11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2

main90340-16002i3YEC,4YEC..YR2#,3#..5F198308-198808

11117HGASKET(FOR WATER HOLE)

main90430-20004i3YEC,4YEC..YR2#,3#198308-198808

11122BUSH, INTAKE VALVE GUIDE

main11122-71020i3YEC,4YEC..YR2#,3#198308-198808

STD,STD

main11123-71020i3YEC,4YEC..YR2#,3#198308-198808

O/S 0.05,O/S 0.05

11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)

main90520-12049i3YEC,4YEC..YR2#,3#198308-198808

11126BUSH, EXHAUST VALVE GUIDE

main11126-71020i3YEC,4YEC..YR2#,3#198308-198808

STD,STD

main11127-71020i3YEC,4YEC..YR2#,3#198308-198808

O/S 0.05,O/S 0.05

11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)

main90520-12049i3YEC,4YEC..YR2#,3#198308-198808

11131SEAT, INTAKE VALVE

main11131-63010i3YEC,4YEC..YR2#,3#198308-198808

STD,STD

main11132-63010i3YEC,4YEC..YR2#,3#198308-198808

O/S 0.03,O/S 0.03

11135SEAT, EXHAUST VALVE

main11135-71010i3YEC,4YEC..YR2#,3#198308-198808

STD,STD

main11136-71010i3YEC,4YEC..YR2#,3#198308-198808

O/S 0.03,O/S 0.03

11181PLATE, CYLINDER HEAD, REAR

main11181-73010i3YEC,4YEC..YR2#198308-198808

main11181-73050i4YEC..YR3#..4FC198608-198808

11182GASKET, CYLINDER HEAD REAR PLATE

main11182-71010i3YEC,4YEC..YR2#,3#198308-198808

sub11182-71011

11191TUBE, SPARK PLUG

main11191-22010i3YEC,4YEC..YR2#,3#198308-198808

11191AGASKET(FOR SPARK PLUG TUBE)

main90430-31141i3YEC,4YEC..YR2#,3#198308-198808

sub90430-31003

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-79035i3YEC,4YEC..YR2#,3#198308-198808

sub11201-71011

sub11213-71020

sub90210-09001

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90176-08007i3YEC,4YEC..YR2#,3#198308-198808

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-09001i3YEC,4YEC..YR2#,3#198308-198808

sub90210-09019

11213GASKET, CYLINDER HEAD COVER

main11213-71020i3YEC,4YEC..YR2#,3#198308-198808

12108CAP SUB-ASSY, OIL FILLER

main12180-61010i4YEC..YR2#,3#198705-198808

sub12180-70020

main12180-71010i3YEC..YR2#198308-198506

sub12180-71011

main12180-71011i3YEC,4YEC..YR2#,3#198506-198705

sub12180-61010

12108AGASKET(FOR OIL FILLER CAP)

main12195-71010i3YEC..YR2#198308-198506

sub12195-71020

main12195-71020i3YEC,4YEC..YR2#,3#198506-198808

9151160840

main91511-60840

9161160814

main91611-60814

9161160820

main91611-60820

9161160840

main91611-60840

28 parts on this diagram · 1 diagram in section
