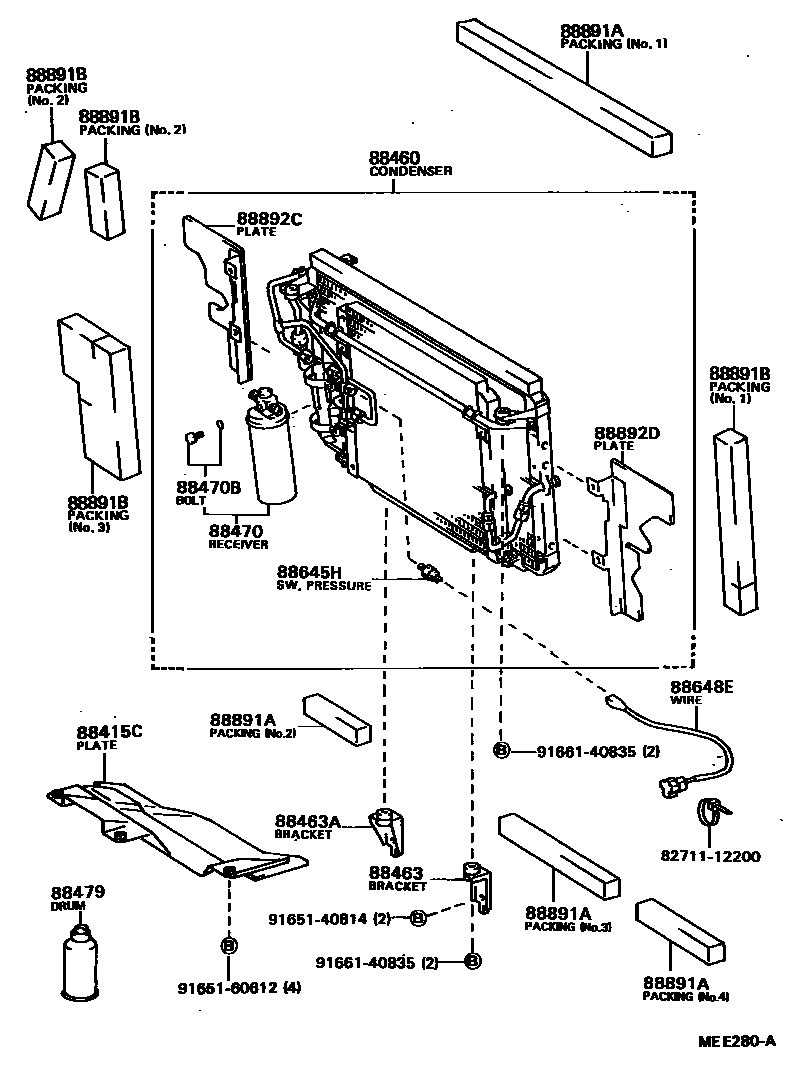

HEATING & AIR CONDITIONING - COOLER PIPING
88415CCOVER, DUST, NO.1
88460CONDENSER ASSY, COOLER
RADIATOR
RADIATOR
FLOOR
SINGLE AIR CONDITIONER
FLOOR
88463BRACKET, COOLER CONDENSER, NO.1
SINGLE AIR CONDITIONER
88463ABRACKET, COOLER CONDENSER, NO.2
SINGLE AIR CONDITIONER
88470RECEIVER & DRYER ASSY, COOLER
sub04884-33110
88470BBOLT, FUSE
88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
88645HSWITCH, PRESSURE NO.1
88648EWIRING, COOLER
88891APACKING A (FOR COOLER)
NO.3
NO.4
NO.2
NO.4
NO.2
NO.5
NO.3
88891BPACKING B (FOR COOLER)
NO.1
NO.2
NO.3
NO.1
NO.2
NO.3
88892CPLATE, CONDENSER, NO.1
88892DPLATE, CONDENSER, NO.2
8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12200
9165140814
main91651-40814
9165160612
main91651-60612
9166140835
main91661-40835
17 parts on this diagram · 10 diagrams in section
