RADIO RECEIVER & AMPLIFIER & CONDENSER

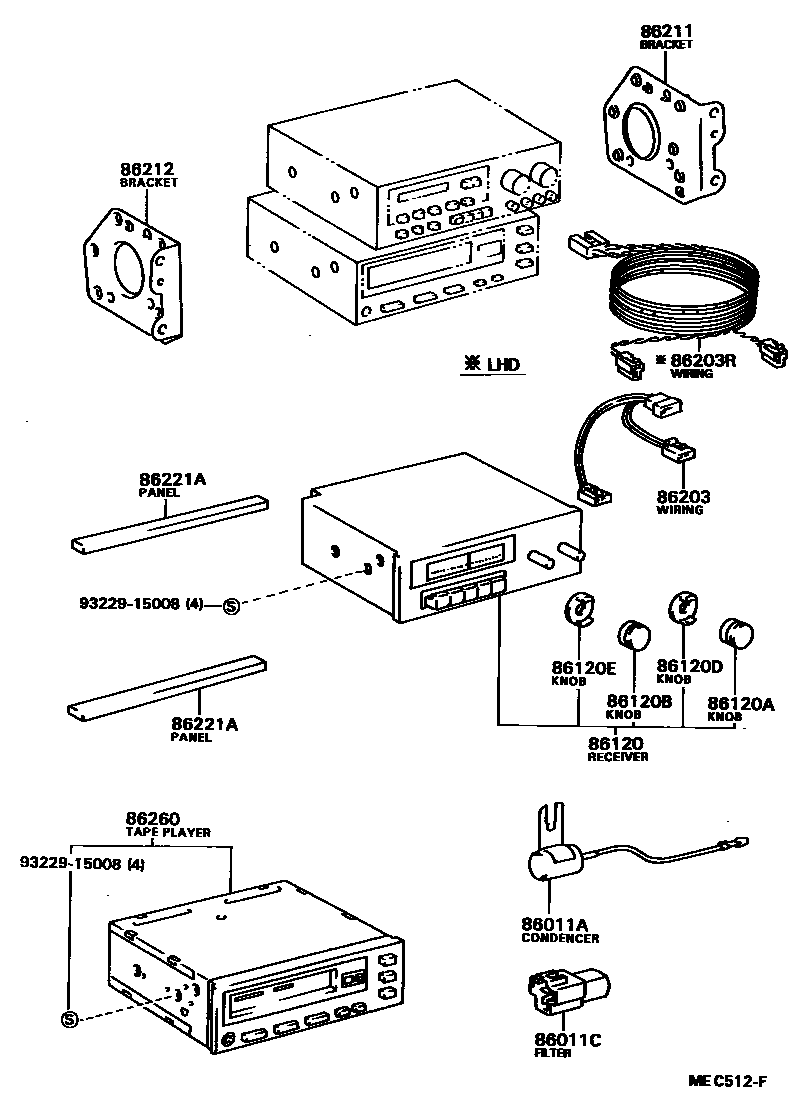

Parts diagram
86011ACONDENSER, RADIO SETTING
main90980-04010i198211-198808
REGULATOR
86011CFILTER, NOISE
main90980-05073i198601-198808
86120RECEIVER ASSY, RADIO
main86120-14391i198211-198408
MW/SW
sub86120-30670
main86120-14392i198408-198608
MW/SW
main86120-14420i198211-198406
AM
sub86120-14421
main86120-14421i198406-198608
AM
sub86120-10260
sub86203-20180
main86120-14460i198211-198412
AM/FM
sub86120-14461
main86120-14461i198412-198608
AM/FM
sub86120-16430
sub86203-20180
main86120-16350i198608-198808
FUJITSU TEN,AM
sub86120-10290
main86120-16430i198608-198808
FUJITSU TEN,AM/FM
main86120-16440i198608-198808
AM/FM MPX,W/CASSETTE
main86120-16460i198608-198808
MATSUSHITA,ID=5108,MW/SW
main86120-17090i198408-198608
LW/MW/UKW
main86120-22400i198211-198508
LW/MW/UKW,W/ARI
sub86120-22401
main86120-22401i198508-198603
LW/MW/UKW,W/ARI
sub86120-22402
main86120-22402i198603-198608
FUJITSU TEN,LW/MW/UKW,W/ARI
main86120-22451i198508-198608
*18
main86120-22780i198608-198808
AM/FM MPX
main86120-30650i198408-198508
*21
main86120-30651i198508-198604
*21
sub86120-30652
main86120-30652i198604-198608
*21
main86120-32050i198508-198608
AM/FM,W/CASSETTE
sub86120-16440
sub86203-20180
main86120-32100i198608-198708
LW/MW/UKW,MPX,W/CASSETE
sub86120-32102
main86120-32100i198608-198708
LW/MW/UKW MPX,W/CASSET
sub86120-32102
main86120-32102i198708-198808
MATSUSHITA,LW/MW/UKW MPX,W/CASSET
main86120-32102i198708-198808
MATSUSHITA,LW/MW/UKW,MPX,W/CASSETE
main86120-32110i198608-198708
LW/MW/UKW MPX
main86120-32111i198708-198808
FUJITSU TEN,LW/MW/UKW MPX
main86120-32240i198608-198708
LW/MW/UKW
main86120-32241i198708-198808
FUJITSU TEN,LW/MW/UKW
main86120-32260i198608-198708
*71
sub86120-32261
main86120-32261i198708-198808
*71
main86120-87004i198211-198408
LW/MW/UKW
sub86120-17090
86120AKNOB, RADIO RECEIVER SWITCH
main86128-14240i198211-198608
LW/MW/UKW,W/ARI
main86128-14500i198211-198406
AM,AM/FM
main86128-14580i198406-198608
AM,AM/FM
86120BKNOB, RADIO RECEIVER TUNING, NO.1
main86128-14240i198211-198608
LW/MW/UKW,W/ARI
main86128-14500i198211-198406
AM,AM/FM
main86128-14580i198406-198608
AM,AM/FM
86120DKNOB, RADIO RECEIVER TONE
main86128-14200i198211-198406
AM,AM/FM
main86128-14260i198211-198608
LW/MW/UKW,W/ARI
main86128-14600i198406-198608
AM,AM/FM
86120EKNOB, RADIO RECEIVER BALANCE
main86128-14200i198211-198406
AM/FM
main86128-14600i198406-198608
AM/FM
86203WIRE, RADIO
main86203-28010i198408-198608
86203RWIRE SUB-ASSY, RR
main86205-28010i198510-198808
86211BRACKET, RADIO, NO.1
main86211-87003i198211-198808
main86211-87006i198211-198408
LW/MW/UKW
86212BRACKET, RADIO, NO.2
main86212-87002i198211-198808
main86212-87005i198211-198408
LW/MW/UKW
86221APANEL, RADIO RECEIVER
main86221-12020i198211-198308
86260TAPE PLAYER ASSY
main86260-16140i198608-198808
main86260-19015i198211-198608
sub86260-90B09
sub86203-16100
sub86203-20180
9322915008
main93229-15008

14 parts on this diagram · 1 diagram in section
