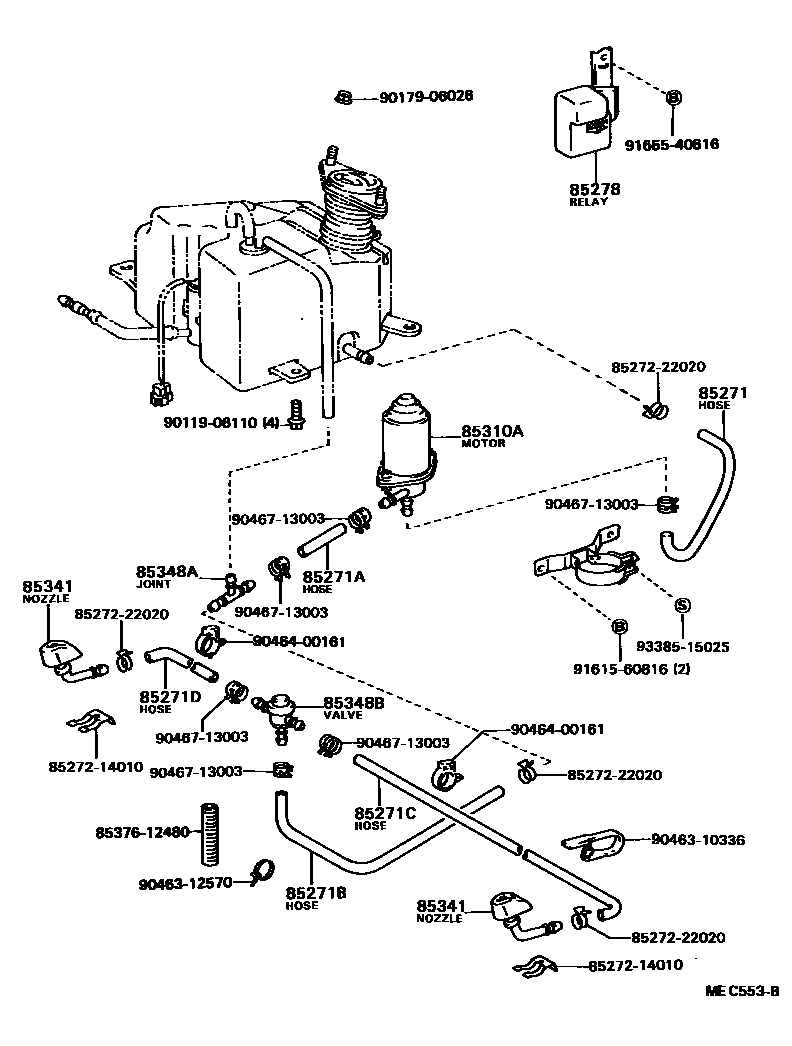

HEADLAMP CLEANER
85271HOSE, HEADLAMP CLEANER, NO.1
85271AHOSE, HEADLAMP CLEANER, NO.2
L=50
85271BHOSE, HEADLAMP CLEANER, NO.3
L=240
85271CHOSE, HEADLAMP CLEANER, NO.4
85271DHOSE, HEADLAMP CLEANER, NO.5
L=640
85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85341NOZZLE, HEADLAMP CLEANER WASHER
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
8527214010CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-14010
8527222020CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-22020
8537612480PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
main85376-12480
9011906110
main90119-06110
9017906026
main90179-06026
9046310336
main90463-10336
9046312570
main90463-12570
9046400161
main90464-00161
9046713003
main90467-13003
9161560816
main91615-60816
9165540616
main91655-40616
9338515025
main93385-15025
22 parts on this diagram · 2 diagrams in section
