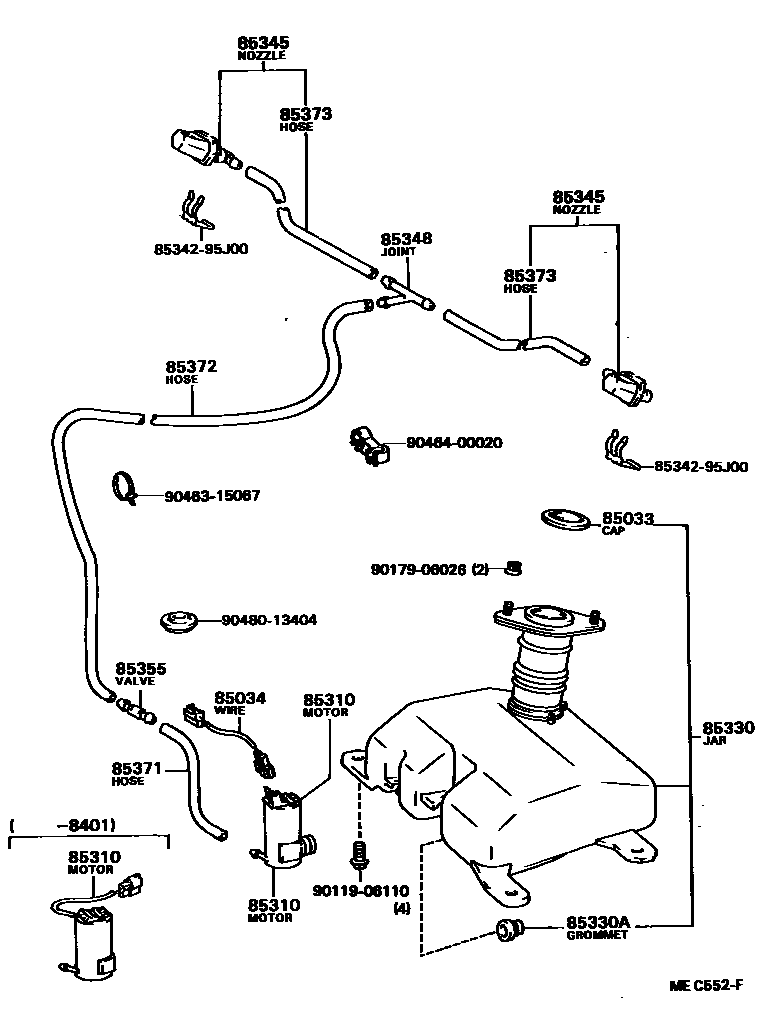

WINDSHIELD WASHER
85034WIRE, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
W/HEADLAMP CLEANER
85330ABUSH, WINDSHIELD WASHER JAR
85345NOZZLE, WINDSHIELD WASHER
RH
LH
RH
LH
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
3 WAY
3 WAY
2 WAY
3 WAY
85355VALVE, WINDSHIELD WASHER HOSE
sub85031-12250
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
W/HEADLAMP CLEANER
L=650
L=1000(*H,L=360)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
L=2300
(NO.2)
(NO.1)
L=1000(*H,L=560)
L=1000(*H,L=550)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=360)
L=600(*H,L=270)
L=1000(*H,L=360)
L=1100(*H,L=150)
8534295J00HOLDER, WASHER NOZZLE
main85342-95J00
9011906110
main90119-06110
9017906026
main90179-06026
9046315067
main90463-15067
9046400020
main90464-00020
9048013404
main90480-13404
17 parts on this diagram · 4 diagrams in section
