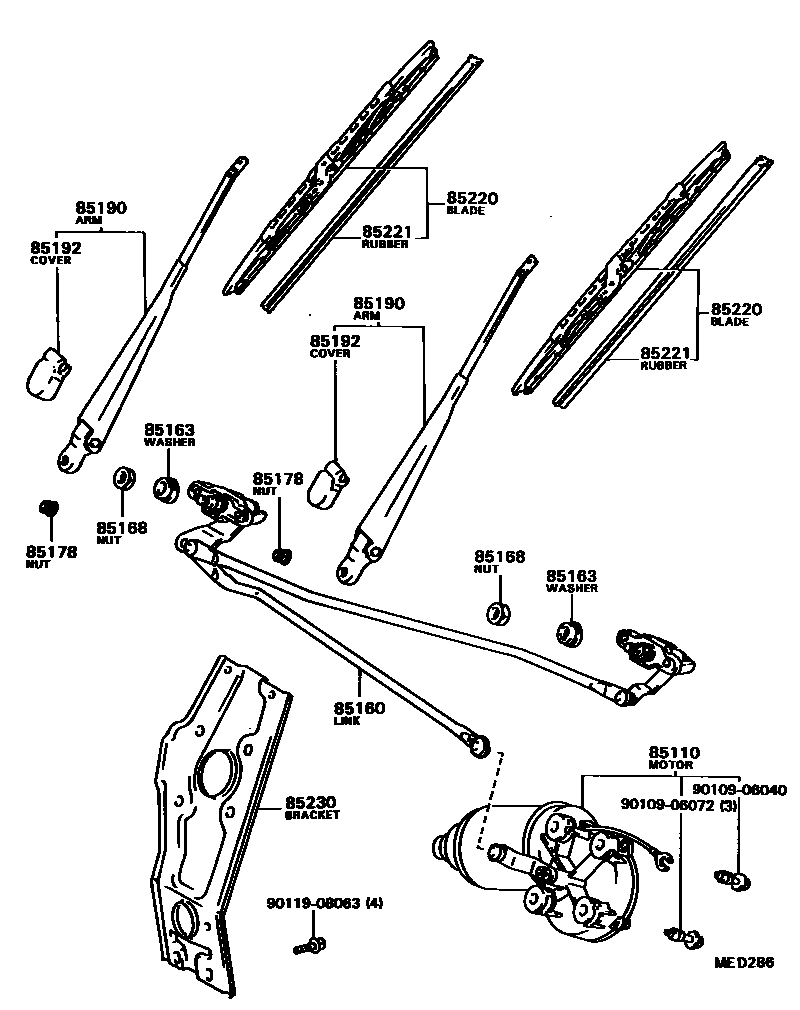

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-28010iCR21,YR20..LHD198211-198308

main85110-28011iCR21,YR2#,31..LHD198308-198808

sub85110-28020

main85110-87006iCR21,YR2#,31..RHD..(ARL,GEN)198308-198808

sub85110-87011

main85110-87007iCR21,YR20..RHD..(ARL,GEN)198211-198308

main85110-87010iCR21,YR20..RHD..EUR198211-198308

main85110-87011iCR21,YR20,21..RHD..EUR198308-198808

85160LINK ASSY, WINDSHIELD WIPER

main85160-28010iCR21,YR2#,31..LHD198211-198808

main85160-87003iCR21,YR2#,31..RHD198211-198808

85163PACKING, WINDSHIELD WIPER PIVOT

main85179-87002iCR21,YR2#,31198211-198808

85168NUT, WINDSHIELD WIPER LINK PIVOT

main90099-05141iCR21,YR2#,31198211-198808

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08123iCR21,YR2#,31198211-198808

85190ARM ASSY, WINDSHIELD WIPER

main85190-28010iYR20..LHD198211-198301

RH

sub85190-28011

main85190-28011iCR21,YR20..LHD198301-198310

RH

sub85190-28030

main85190-28020iYR20..RHD..EUR198211-198301

RH

sub85190-28021

main85190-28021iCR21,YR20..RHD..EUR198301-198401

RH

sub85190-87013

main85190-28030iCR21,YR2#,31..LHD198310-198808

RH

main85190-87003iYR20..RHD..(ARL,GEN)198211-198301

RH

sub85190-87010

main85190-87010iCR21,YR20..RHD..(ARL,GEN)198301-198401

RH

main85190-87012iYR21..RHD..EUR198601-198808

RH

main85190-87013iCR21,YR2#..RHD..(ARL,GEN)198401-198601

RH

main85210-28010iYR20..LHD198211-198301

LH

sub85210-28011

main85210-28011iCR21,YR20..LHD198301-198310

LH

sub85210-28020

main85210-28020iCR21,YR2#,31..LHD198310-198808

LH

main85210-87001iYR20..RHD198211-198301

LH

sub85210-87002

main85210-87002iCR21,YR20..RHD198301-198401

LH

sub85210-87006

main85210-87006iCR21,YR2#,31..RHD198401-198808

LH

85192COVER, WINDSHIELD WIPER ARM

main85192-28020iCR21,YR2#,31..LHD198310-198808

main85195-28010iCR21,YR20..RHD198211-198401

85220BLADE ASSY, WINDSHIELD WIPER

main85220-12540iCR21,YR20,21..RHD..EUR198401-198808

RH

sub85220-30240

main85220-16140iCR21,YR20..LHD198211-198310

LH

sub85220-16270

main85220-16150iCR21,YR20..LHD198211-198310

RH

sub85220-16640

main85220-16160iCR21,YR20..RHD198211-198401

RH

sub85220-16410

main85220-16170iCR21,YR20..RHD198211-198401

LH

sub85220-16420

main85220-16270iCR21,YR2#,31..LHD198310-198808

LH

sub85220-16640

main85220-16290iCR21,YR2#,31..LHD198310-198808

RH

sub85220-16640

main85220-16410iCR21,YR2#,31..RHD..(ARL,GEN)198401-198808

RH

sub85220-16411

main85220-16420iCR21,YR2#,31..RHD198401-198808

LH

sub85220-16421

85221BLADE, WINDSHIELD WIPER

main85221-12120iYR20..LHD198211-198303

sub85214-24H90

main85221-30080iCR21,YR20..RHD198211-198309

sub85223-12690

main85221-30100iCR21,YR20..RHD..EUR198401-198808

RH

sub85221-40040

main85221-30100iCR21,YR2#,31..LHD198303-198808

sub85221-40040

main85221-30120iCR21,YR20..RHD198309-198401

sub85221-40040

main85221-30120iCR21,YR20..RHD..EUR198401-198808

LH

sub85221-40040

85230BRACKET ASSY, WINDSHIELD WIPER

main85230-87003iCR21,YR2#,31..RHD198211-198808

main85231-28010iCR21,YR2#,31..LHD198211-198808

9010906040

main90109-06040

9010906072

main90109-06072

9011908063

main90119-08063

13 parts on this diagram · 1 diagram in section
