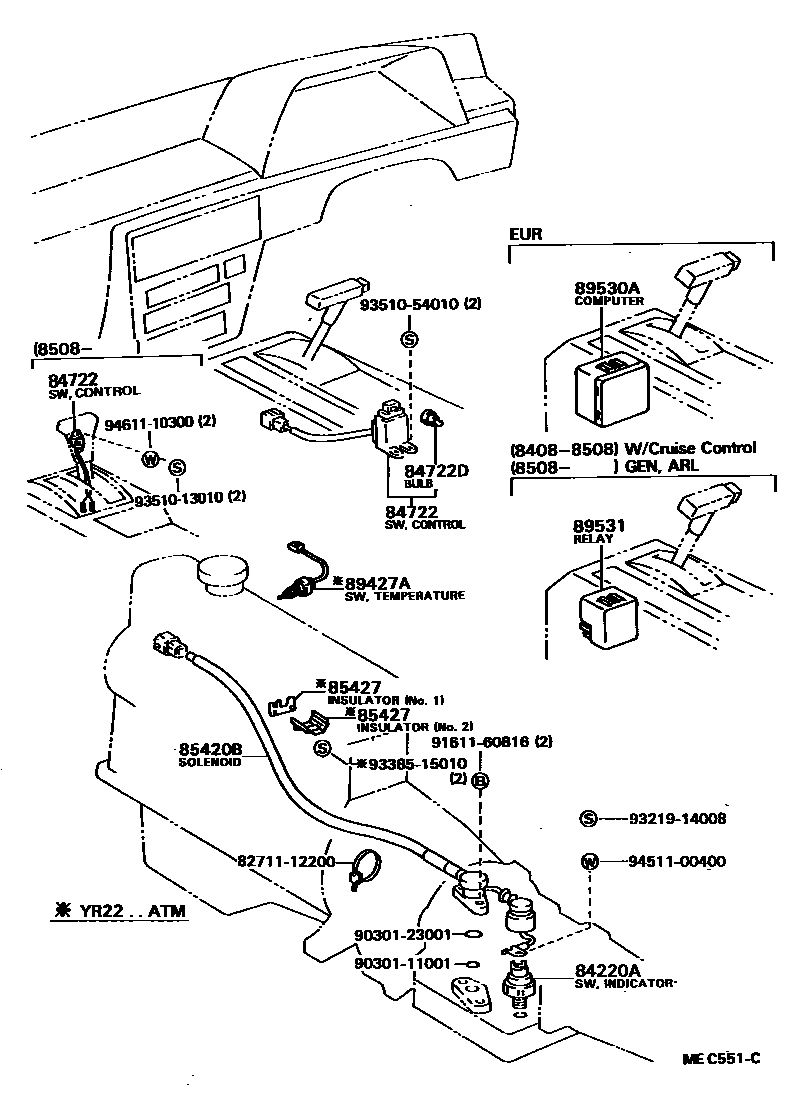

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

84220ASWITCH ASSY, TRANSMISSION POSITION INDICATOR

main84220-30050iYR2#..4FC..EUR198211-198808

84722SWITCH, TRANSMISSION CONTROL

main84722-20040-05iYR2#,31..4FC198508-198808

BROWN,BEIGE,TRIM4#

sub84722-20040

main84722-20040-14iYR2#,31..4FC198508-198808

BLUE,BLUE,TRIM8#

sub84722-20040

main84722-28010iYR2#..4FC198211-198508

84722DBULB, TRANSMISSION CONTROL SWITCH

main90981-11024iYR2#..4FC198211-198508

12V 1.4W

85420BSOLENOID ASSY, TRANSMISSION

main85420-28010iYR2#..4FC..EUR198211-198808

main85420-28020iYR2#..4FC..ARL198211-198808

85427INSULATOR, OVERDRIVE SOLENOID

main85427-28020iYR22..4FC198508-198808

NO.1

main85427-28030iYR22..4FC198508-198808

NO.2

89427ASWITCH, TEMPERATURE

main89428-20050iYR22,31..4FC198508-198808

89530ACOMPUTER ASSY, TRANSMISSION CONTROL

main89530-28010iYR20..4FC..EUR198211-198408

main89530-28020iYR21..4FC..EUR198408-198808

main89530-28070iYR22..4FC..EUR198701-198808

89531RELAY, TRANSMISSION CONTROL

main89531-28010iYR21..4FC..GL..ARL198408-198508

W/CRUISE CONTROL

main89531-28010iYR2#..4FC..(ARL,GEN)198508-198808

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9030111001

main90301-11001

9030123001

main90301-23001

9161160816

main91611-60816

9321914008

main93219-14008

9338515010

main93385-15010

9351013010

main93510-13010

9351054010

main93510-54010

9451100400

main94511-00400

9461110300

main94611-10300

18 parts on this diagram · 1 diagram in section
