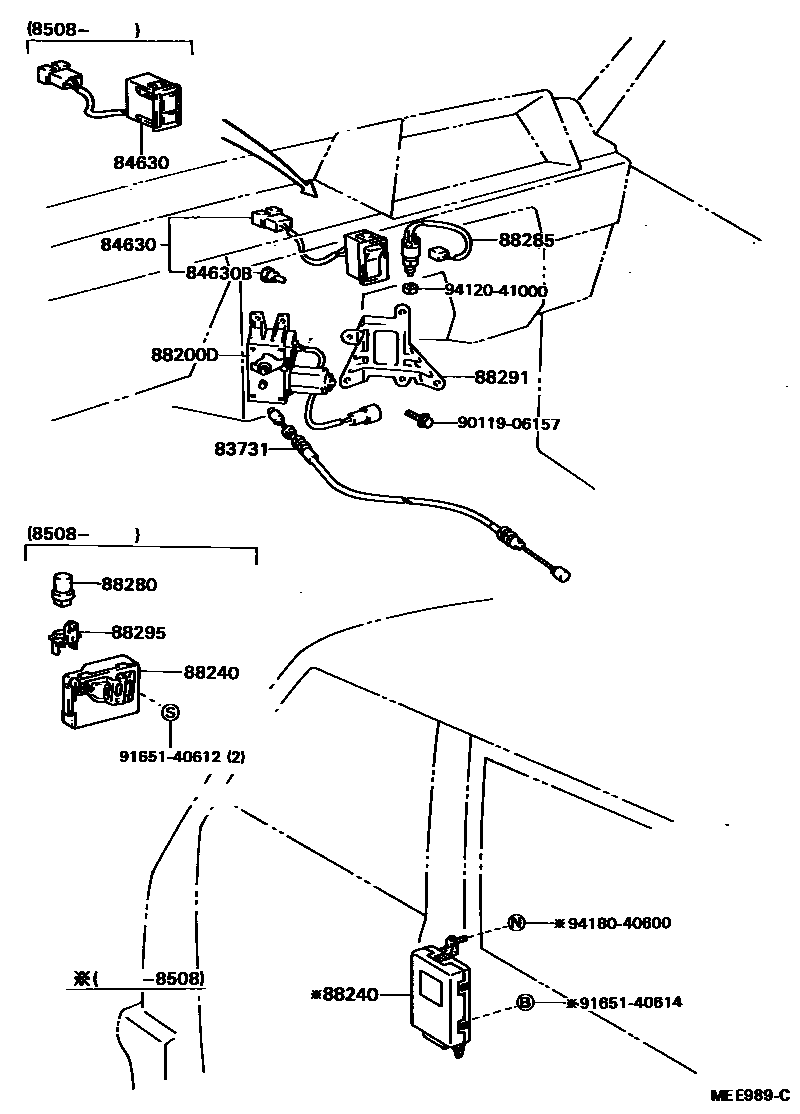

CRUISE CONTROL (AUTO DRIVE)

83731CABLE, CRUISE CONTROL

main83731-28030iYR21..4FC..GL..ARL198408-198808

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-28010iYR22..4FC..ARL198508-198808

main84630-32020iYR21..4FC..GL..ARL198408-198508

84630BBULB(FOR CRUISE CONTROL SWITCH)

main84999-10110iYR21..4FC..GL..ARL198408-198508

12V 1.12W

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-28050iYR21..4FC..GL..ARL198408-198808

88240COMPUTER ASSY, CRUISE CONTROL

main88240-28010iYR21..4FC..GL..ARL198408-198508

sub88240-28030

main88240-28050iYR22..4FC..ARL198508-198708

sub88240-28080

main88240-28080iYR22..4FC..ARL198708-198808

88280RELAY ASSY, CRUISE CONTROL(AUTO DRIVE), B

main90987-02004iYR22..4FC..ARL198508-198808

88285SWITCH, CRUISE CONTROL

main88282-28010iYR21..4FC..GL..ARL198408-198808

sub84340-24010

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-28020iYR21..4FC..GL..ARL198408-198808

88295BRACKET, CRUISE CONTROL(AUTO DRIVE) RELAY

main85999-12050iYR22..4FC..ARL198508-198808

9011906157

main90119-06157

9165140612

main91651-40612

9165140614

main91651-40614

9412041000

main94120-41000

9418040600

main94180-40600

14 parts on this diagram · 1 diagram in section
