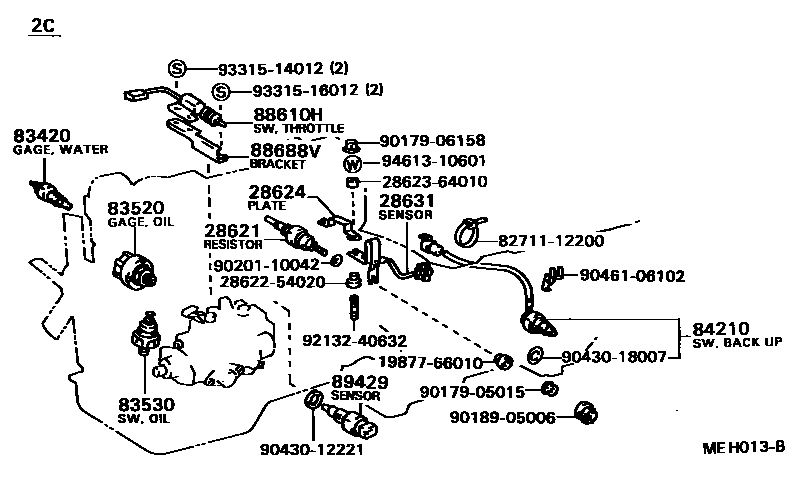

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

28621RESISTOR, GLOW PLUG

main28621-64011i2C..CR21198508-198808

main28621-64020i2C..CR21..EUR198305-198405

28624PLATE, CURRENT SENSOR

main28624-64010i2C..CR21..EUR198305-198408

28631SENSOR, GLOW PLUG CURRENT

main28631-64021i2C..CR21198508-198808

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iCR21,YR2#,31198211-198808

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14021iCR21,YR2#..GL198211-198407

main83520-14022iCR21,YR2#,31..GL198407-198705

main83520-14023iYR2#,31..GL198705-198808

sub83520-35030

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iYR2#..DLX198211-198508

main83530-14030iYR2#,31..DLX..EUR198508-198808

sub83530-28030

main83530-30042iCR21198409-198503

sub83530-30050

main83530-30060iCR21198508-198808

sub83530-60030

main83530-36011iCR21..DLX198305-198409

84210SWITCH ASSY, BACK-UP LAMP

main84210-60021iCR21,YR2#,31..5F198211-198808

88610HSWITCH ASSY, THROTTLE POSITION

main88601-28010iYR21..ARL,GEN198508-198808

main88610-12060iCR21198508-198808

88688VBRACKET, THROTTLE POSITION SWITCH

main88688-28040iYR21..GEN198508-198808

main88688-28070iCR21198508-198808

main88688-87028iYR21..ARL198508-198808

89429SENSOR, OIL TEMPERATURE

main89422-30020iCR21198305-198808

sub89422-12010

1987766010

main19877-66010

2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-54020

2862364010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-64010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9017905015

main90179-05015

9017906158

main90179-06158

9018905006

main90189-05006

9020110042

main90201-10042

9043012221

main90430-12221

9043018007

main90430-18007

9046106102

main90461-06102

9213240632

main92132-40632

9331514012

main93315-14012

9331516012

main93315-16012

9461310601

main94613-10601

25 parts on this diagram · 7 diagrams in section
