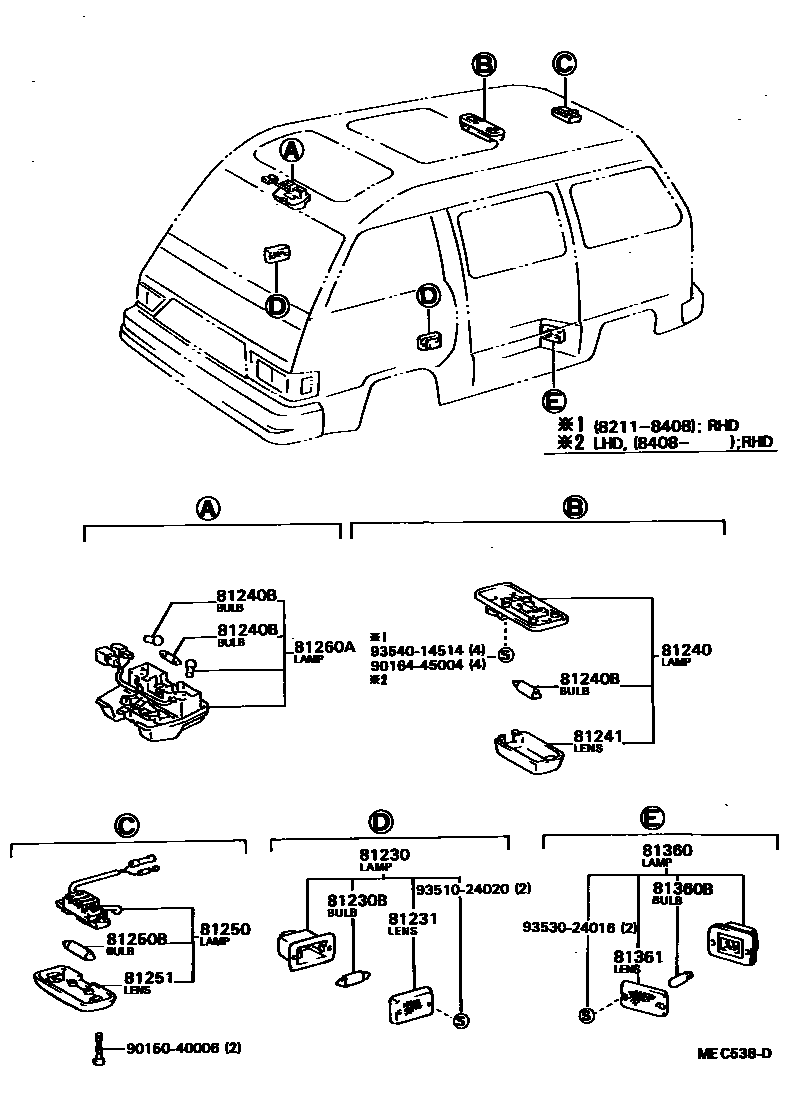

INTERIOR LAMP

81230LAMP ASSY, COURTESY

main81230-28010×2iYR2#,31..GL198508-198808

81230BBULB(FOR COURTESY LAMP)

main99132-12050×2iYR2#,31..GL198508-198808

12V 5W,12V 5W

main99132-13050×2iCR21,YR2#..GL198211-198508

12V 5W,12V 5W

81231LENS, COURTESY LAMP

main81231-30100×2iCR21,YR2#..GL198211-198508

81240LAMP ASSY, ROOM, NO.1

main81240-16010-23iYR2#..GL198211-198508

W/*PSR,GRAY,GRAY,TRIM1#

sub81240-22060

main81240-16010-25iYR2#..GL198211-198508

W/*PSR,BEIGE,BEIGE,TRIM4#

sub81240-22060

main81240-20060-23iCR21,YR2#..GL198211-198508

GRAY,GRAY,TRIM1#

sub81240-22050

main81240-20060-25iCR21,YR2#198211-198508

BEIGE,BEIGE,TRIM4#

sub81240-22050

main81240-22070-03iCR21,YR21,31198508-198808

GRAY,GRAY,TRIM1#,8#

main81240-22070-25iCR21,YR21,31198508-198808

BEIGE,BEIGE,TRIM4#

main81240-22080-03iYR2#..GL198508-198608

W/*PSR,GRAY,GRAY,TRIM8#

main81240-22080-25iYR2#..GL198508-198608

W/*PSR,BEIGE,BEIGE,TRIM4#

main81240-22081-03iYR2#..GL198608-198808

W/*PSR,GRAY,GRAY,TRIM1#,8#

main81240-22081-25iYR2#..GL198608-198808

W/*PSR,BEIGE,BEIGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-12005×2iYR2#,31..GL198211-198808

12V 8W,12V 8W

main99132-12100iCR21,YR2#,31198211-198808

12V 10W,12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-16010iYR2#..GL198211-198508

W/*PSR

main81241-20060iCR21,YR2#198211-198808

81250LAMP ASSY, ROOM, NO.2

main81240-87003iYR2#,31..GL198608-198808

main81240-87004iCR21,YR2#..GL198211-198408

main81240-87009iYR2#,31..GL198408-198608

81250BBULB, ROOM LAMP, NO.2

main90981-11004iCR21,YR2#,31..GL198211-198808

12V 10W,12V 10W

81251LENS, ROOM LAMP, NO.2

main81241-87004iCR21,YR2#,31..GL198211-198808

81260ALAMP ASSY, MAP

main81240-87005-03iYR20..GL198211-198307

GRAY,GRAY,TRIM1#

main81240-87005-05iYR20..GL198211-198307

BEIGE,BEIGE,TRIM4#

main81240-87008-03iYR2#..GL198307-198408

GRAY,GRAY,TRIM1#

main81240-87008-05iYR2#..GL198307-198408

BEIGE,BEIGE,TRIM4#

main81240-87010-03iYR2#,31..GL198508-198808

GRAY,GRAY,TRIM1#,8#

main81240-87010-05iYR21..GL198408-198508

BEIGE,BEIGE,TRIM4#

main81240-87010-15iYR2#,31..GL198508-198808

BEIGE,BEIGE,TRIM4#

81360LAMP ASSY, STEP OR SPOT

main81230-24010iYR2#,31..GL198408-198808

main81230-87003iCR21,YR2#..GL198211-198408

81360BBULB, STEP OR SPOT LAMP

main90981-11013iCR21,YR2#..GL198211-198408

12V 5W T10

main99132-13050iYR2#,31..GL198408-198808

12V 5W,12V 5W

81361LENS, STEP LAMP

main81231-30080iYR2#,31..GL198408-198808

9015040006

main90150-40006

9016445004

main90164-45004

9351024020

main93510-24020

9353024016

main93530-24016

9354014514

main93540-14514

18 parts on this diagram · 1 diagram in section
