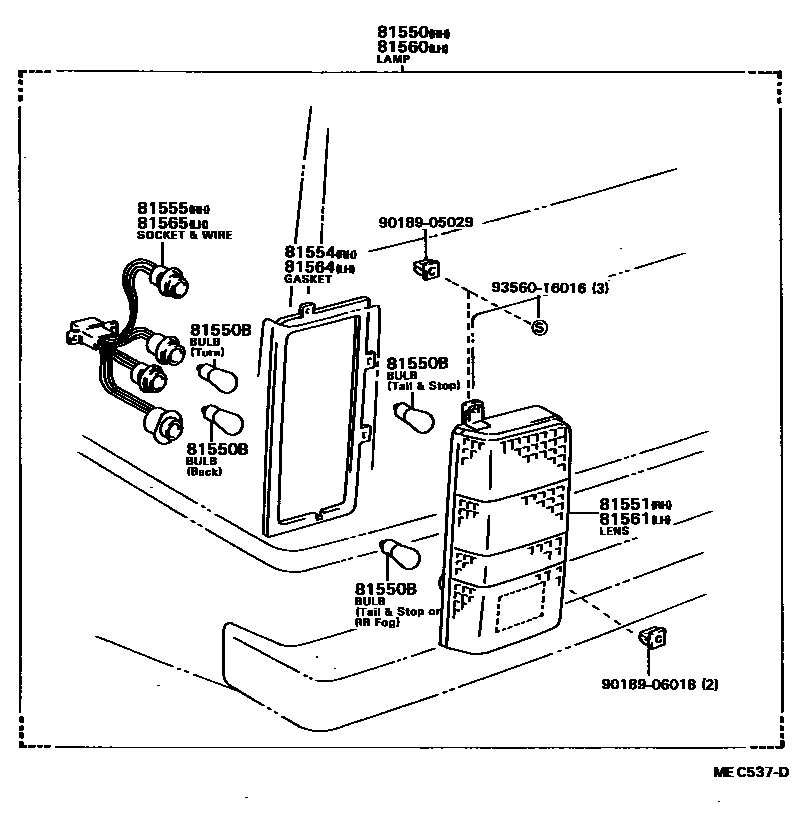

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-80149iCR21,YR2#..ARL,GEN198211-198408

sub81550-80243

main81550-80150iCR21,YR2#,31..EUR198211-198808

W/FOG LAMP

sub81550-87004

main81550-80151iCR21,YR2#..EUR198211-198508

main81550-80243iCR21,YR21..ARL,GEN198408-198608

sub81550-87006

main81550-87006iYR21..GEN198608-198808

main81550-87007iCR21,YR2#,31..ARL198508-198808

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210iCR21,YR2#,31..EUR198211-198808

12V 21W,12V 21W

main99132-11230iCR21,YR2#,31..ARL,GEN198211-198808

12V 23W,12V 23W

main99132-21210iCR21,YR2#,31198211-198808

12V 21/5W,12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-87003iCR21,YR2#..ARL,GEN198211-198408

sub81551-87006

main81551-87004iCR21,YR2#,31..EUR198211-198808

W/FOG LAMP

main81551-87005iCR21,YR2#..EUR198211-198508

main81551-87006iCR21,YR21..ARL,GEN198408-198808

main81551-87007iCR21,YR2#,31..ARL198508-198808

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-87003iCR21,YR2#198211-198808

main81554-87007iCR21,YR2#,31..ARL198508-198808

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-87003iCR21,YR2#..ARL,GEN198211-198808

main81555-87004iCR21,YR2#,31..EUR198211-198808

W/FOG LAMP

main81555-87005iCR21,YR2#..EUR198211-198508

main81555-87007iCR21,YR2#,31..ARL198508-198808

81560LAMP ASSY, REAR COMBINATION, LH

main81560-80154iCR21,YR2#..ARL,GEN198211-198408

sub81560-80251

main81560-80155iCR21,YR2#,31..EUR198211-198808

W/FOG LAMP

sub81560-87004

main81560-80156iCR21,YR2#..EUR198211-198508

main81560-80251iCR21,YR21..ARL,GEN198408-198608

sub81560-87006

main81560-87006iYR21..GEN198608-198808

main81560-87007iCR21,YR2#,31..ARL198508-198808

81561LENS, REAR COMBINATION LAMP, LH

main81561-87003iCR21,YR2#..ARL,GEN198211-198408

sub81561-87006

main81561-87004iCR21,YR2#,31..EUR198211-198808

W/FOG LAMP

main81561-87005iCR21,YR2#..EUR198211-198508

main81561-87006iYR21..GEN198408-198808

main81561-87007iCR21,YR2#,31..ARL198508-198808

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-87003iCR21,YR2#198211-198808

main81564-87007iCR21,YR2#,31..ARL198508-198808

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-87003iCR21,YR2#..ARL,GEN198211-198808

main81555-87004iCR21,YR2#,31..EUR198211-198808

W/FOG LAMP

main81555-87005iCR21,YR2#..EUR198211-198508

main81555-87007iCR21,YR2#,31..ARL198508-198808

9018905029

main90189-05029

9018906018

main90189-06018

9356016016

main93560-16016

12 parts on this diagram · 2 diagrams in section
