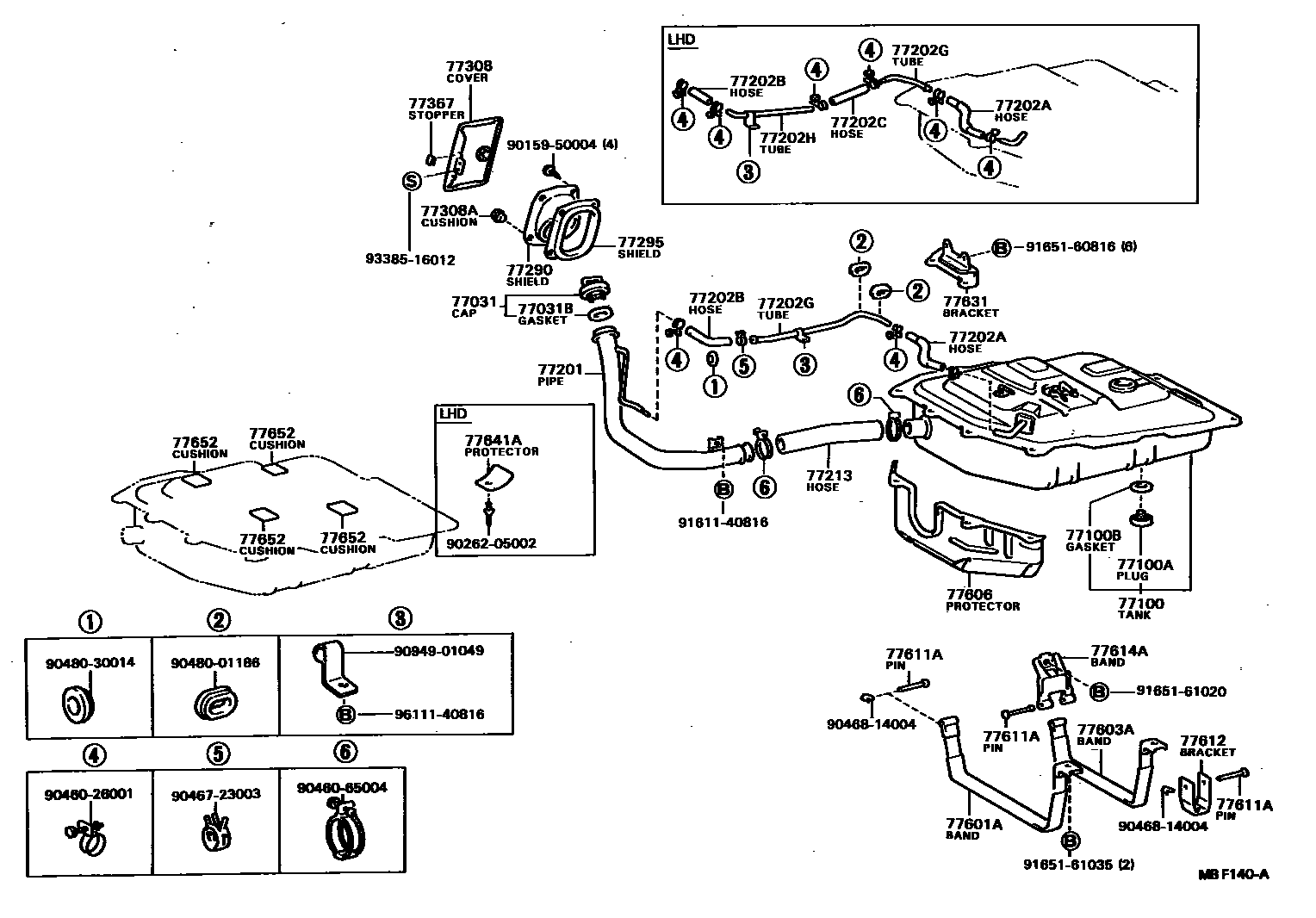

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1 0009 1 0010 1 0011 1 0012 1

77031CAP ASSY, FUEL TANK

main77310-12100iYR21..GL..ARL198511-198808

NEW ZEALAND SPEC,

main77310-12100iYR21..EUR,GEN198211-198808

main77310-16010iYR2#,31..ARL198508-198706

sub77310-16011

main77310-16011iYR22,31..EUR198706-198808

sub77310-12140

main77310-35061iCR21198305-198808

77031BGASKET (FOR FUEL TANK CAP)

main77316-12050iCR21,YR2#198211-198808

main77316-12050iYR21..GL..ARL198511-198808

NEW ZEALAND SPEC,

main77316-16010iYR22,31..EUR198508-198808

77100TANK ASSY, FUEL

main77001-28060iCR21,YR2#198211-198508

sub77001-28190

main77001-28080iYR22..ARL198508-198803

sub77001-28200

main77001-28110iYR22..EUR198608-198803

sub77001-28270

main77001-28120iCR21,YR21..ARL,GEN198508-198803

sub77001-28280

main77001-28130iYR31198601-198803

sub77001-28230

main77001-28150iYR31..EUR198608-198803

sub77001-28300

main77001-28160iYR21..EUR198508-198803

sub77001-28290

main77001-28200iYR22..ARL198803-198808

main77001-28210iCR21198803-198808

main77001-28230iYR31..ARL198803-198808

main77001-28270iYR22..EUR198803-198808

main77001-28280iYR21..ARL,GEN198803-198808

main77001-28290iYR21..EUR198803-198808

main77001-28300iYR31..EUR198803-198808

main77100-28020iCR21198305-198312

77100APLUG(FOR FUEL TANK)

main90105-12116iCR21,YR22,31198803-198808

main90341-20003iCR21,YR2#198211-198503

sub90341-20004

main90341-20004iCR21,YR2#,31198503-198803

77100BGASKET(FOR FUEL TANK)

main90430-12245iCR21,YR2#,31198803-198808

main90430-20006iCR21,YR2#198211-198503

main90430-20007iCR21,YR2#,31198503-198803

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-28050iCR21198211-198808

main77201-28050iYR21..GL..ARL198511-198808

NEW ZEALAND SPEC

main77201-28070iYR22,31..EUR198508-198808

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main77259-28030iCR21,YR2#,31198211-198808

L=290

77202BHOSE, FUEL, NO.2 (FOR BREATHER TUBE)

main77279-28010iCR21,YR2#,31..RHD198211-198808

main90445-24029iCR21,YR2#,31..LHD198211-198808

77202CHOSE, FUEL, NO.3 (FOR BREATHER TUBE)

main90445-24010iCR21,YR2#,31..LHD198211-198808

L=130

77202GTUBE, FUEL, NO.2 (FOR BREATHER TUBE)

main77222-28020iCR21,YR2#,31..RHD198211-198808

sub77013-28020

main77222-28030iCR21,YR2#,31..LHD198211-198808

77202HTUBE, FUEL, NO.3 (FOR BREATHER TUBE)

main77223-28030iCR21,YR2#,31..LHD198211-198808

sub77014-28010

77213HOSE, FUEL TANK SUB INLET

main77217-28010iCR21,YR2#,31198211-198808

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-28010iCR21,YR2#,31198211-198808

77295SHIELD, FUEL FILLER PIPE

main77293-28010iCR21,YR2#,31198211-198808

77308COVER SUB-ASSY, FUEL INLET BOX

main77305-87002iCR21,YR2#,31198211-198808

main77305-87003iCR21,YR2#,31..RHD198708-198808

sub77305-87005

main77305-87003iCR21,YR2#,31..ARL198508-198708

W/FUEL LID OPENER

sub77305-87005

main77305-87004iYR2#,31..LHD198608-198808

W/FUEL LID OPENER

sub77305-87006

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-06001iCR21,YR2#,31198211-198808

77367STOPPER, FUEL FILLER OPENING LID

main77358-87001iCR21,YR2#,31198211-198808

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-28030iYR20198211-198301

sub77601-28031

main77601-28031iCR21,YR2#198301-198508

main77601-28040iCR21,YR2#198508-198808

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77603-28020iYR20198211-198301

sub77603-28021

main77603-28021iCR21,YR2#198301-198508

main77603-28050iCR21,YR2#198508-198808

main77603-28060iYR31198601-198808

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77161-28010iYR31198601-198808

main77606-28010iCR21,YR2#198211-198508

main77606-28020iCR21,YR2#198508-198808

77611APIN (FOR FUEL TANK BAND)

main77653-28010iCR21,YR2#,31198211-198808

RR RH,L=73

main90240-08020iCR21,YR2#198211-198808

FR RH,L=69.5

main90240-08047iCR21,YR2#198211-198808

FR LH,L=81

77612BRACKET SUB-ASSY, FUEL TANK

main77613-28030iCR21,YR20198211-198308

main77613-28040iCR21,YR2#198308-198808

77614ABAND, FUEL TANK, NO.2 RH

main77614-28010iCR21,YR2#,31198211-198808

77631BRACKET, FUEL TANK, NO.1

main77501-28030iCR21,YR20198211-198308

main77511-28050iCR21,YR2#198308-198808

main77511-28060iYR31198601-198808

77641APROTECTOR, FUEL TANK, NO.1

main77641-28010iCR21,YR20,21..LHD198211-198808

77652CUSHION, FUEL TANK, NO.1

main77651-28010iCR21,YR20198211-198808

70X70

main77651-28020iCR21,YR2#,31198308-198808

70X110

9015950004

main90159-50004

9026205002

main90262-05002

9046026001

main90460-26001

9046065004

main90460-65004

9046723003

main90467-23003

9046814004

main90468-14004

9048001186

main90480-01186

9048030014

main90480-30014

9094901049

main90949-01049

9161140816

main91611-40816

9165160816

main91651-60816

9165161020

main91651-61020

9165161035

main91651-61035

9338516012

main93385-16012

9611140816

main96111-40816

41 parts on this diagram · 10 diagrams in section
