E
EPC Data

SEAT BELT

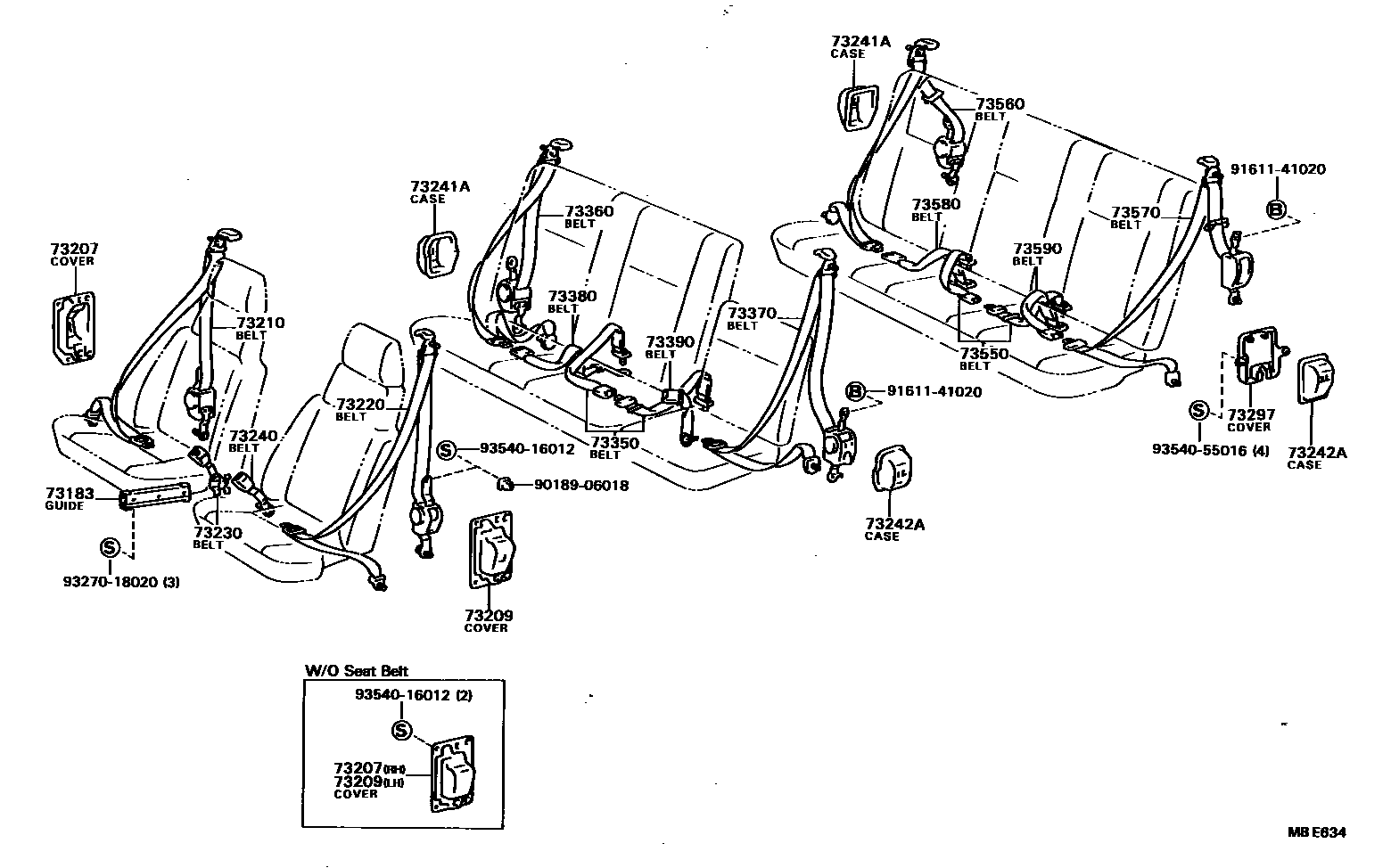

Parts diagram
73183GUIDE, FRONT SEAT LAP BELT, INNER
main73183-28010i198211-198808
main73183-87001i198211-198808
73207COVER SUB-ASSY, SEAT BELT RETRACTOR, RH
main73207-87003i198211-198808
sub73207-87004
73209COVER SUB-ASSY, SEAT BELT RETRACTOR, LH
main73209-28010i198401-198408
main73209-28010i198308-198508
*SAA OR S.OMAN SPEC
main73209-28010i198508-198608
S.OMAN SPEC
main73209-87003i198211-198808
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-28020-02i198308-198508
*SAA OR S.OMAN SPEC,WINE,RED/MAROON,TRIM4#
sub73210-28020
main73210-28020-02i198401-198408
WINE,RED/MAROON,TRIM4#
sub73210-28020
main73210-28020-04i198308-198508
*SAA OR S.OMAN SPEC,BLUE,BLUE,TRIM1#
sub73210-28020
main73210-28020-04i198401-198408
BLUE,BLUE,TRIM1#
sub73210-28020
main73210-28040-02i198408-198508
WINE,WINE,TRIM4#
main73210-28040-04i198408-198508
BLUE,BLUE,TRIM1#
main73210-28050-02i198408-198508
WINE,WINE,TRIM4#
main73210-28050-04i198408-198508
BLUE,BLUE,TRIM1#
main73210-28060-02i198408-198508
WINE,WINE,TRIM4#
sub73210-28060
main73210-28060-04i198408-198508
BLUE,BLUE,TRIM1#
sub73210-28060
main73210-28061-04i198508-198608
BLUE,BLUE,TRIM8#
sub73210-28061
main73210-28061-06i198508-198608
BROWN,BROWN,TRIM4#
sub73210-28061
main73210-28080-04i198508-198608
S.OMAN SPEC,BLUE,BLUE,TRIM8#
sub73210-28210
main73210-28080-06i198508-198608
S.OMAN SPEC,BROWN,BROWN,TRIM4#
sub73210-28210
main73210-28090-04i198508-198608
BLUE,BLUE,TRIM8#
sub73210-28091
main73210-28090-06i198508-198608
BROWN,BROWN,TRIM4#
sub73210-28091
main73210-28091-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub73210-28091
main73210-28091-04i198608-198808
BLUE,BLUE,TRIM8#
sub73210-28091
main73210-28091-06i198608-198808
BROWN,BROWN,TRIM4#
sub73210-28091
main73210-87017-02i198211-198408
WINE,RED/MAROON,TRIM4#
sub73210-87017
main73210-87017-04i198211-198408
BLUE,BLUE,TRIM1#
sub73210-87017
main73210-87018-02i198211-198404
WINE,RED/MAROON,TRIM4#
sub73210-87023
main73210-87018-04i198211-198404
BLUE,BLUE,TRIM1#
sub73210-87023
main73210-87023-02i198404-198408
WINE,RED/MAROON,TRIM4#
main73210-87023-04i198404-198408
BLUE,BLUE,TRIM1#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-28010-02i198211-198404
WINE,RED/MAROON,TRIM4#
sub73220-28011
main73220-28010-04i198211-198404
BLUE,BLUE,TRIM1#
sub73220-28011
main73220-28011-02i198404-198408
WINE,RED/MAROON,TRIM4#
main73220-28011-04i198404-198408
BLUE,BLUE,TRIM1#
main73220-28020-02i198401-198408
WINE,RED/MAROON,TRIM4#
sub73220-28020
main73220-28020-02i198308-198508
*SAA OR S.OMAN SPEC,WINE,RED/MAROON,TRIM4#
sub73220-28020
main73220-28020-04i198308-198508
*SAA OR S.OMAN SPEC,BLUE,BLUE,TRIM1#
sub73220-28020
main73220-28020-04i198401-198408
BLUE,BLUE,TRIM1#
sub73220-28020
main73220-28040-02i198408-198508
WINE,WINE,TRIM4#
main73220-28040-04i198408-198508
BLUE,BLUE,TRIM1#
main73220-28050-02i198408-198508
WINE,WINE,TRIM4#
main73220-28050-04i198408-198508
BLUE,BLUE,TRIM1#
main73220-28060-02i198408-198508
WINE,WINE,TRIM4#
sub73220-28060
main73220-28060-04i198408-198508
BLUE,BLUE,TRIM1#
sub73220-28060
main73220-28061-04i198508-198608
BLUE,BLUE,TRIM8#
sub73220-28061
main73220-28061-06i198508-198608
BROWN,BROWN,TRIM4#
sub73220-28061
main73220-28062-04i198608-198808
BLUE,BLUE,TRIM8#
sub73220-28062
main73220-28062-06i198608-198808
BROWN,BROWN,TRIM4#
sub73220-28062
main73220-28070-04i198508-198608
BLUE,BLUE,TRIM8#
sub73220-28070
main73220-28070-06i198508-198608
BROWN,BROWN,TRIM4#
sub73220-28070
main73220-28071-03i198608-198808
GRAY,SHADOW GRAY,TRIM4#
sub73220-28071
main73220-28071-04i198608-198808
BLUE,BLUE,TRIM8#
sub73220-28071
main73220-28071-06i198608-198808
BROWN,BROWN,TRIM4#
sub73220-28071
main73220-28090-04i198508-198608
S.OMAN SPEC,BLUE,BLUE,TRIM8#
sub73220-28230
main73220-28090-06i198508-198608
S.OMAN SPEC,BROWN,BROWN,TRIM4#
sub73220-28230
main73220-87009-02i198211-198408
WINE,RED/MAROON,TRIM4#
sub73220-87009
main73220-87009-04i198211-198408
BLUE,BLUE,TRIM1#
sub73220-87009
main73220-87010-02i198211-198404
WINE,RED/MAROON,TRIM4#
sub73220-87014
main73220-87010-04i198211-198404
BLUE,BLUE,TRIM1#
sub73220-87014
main73220-87014-02i198404-198408
WINE,RED/MAROON,TRIM4#
sub73220-87014
main73220-87014-04i198404-198408
BLUE,BLUE,TRIM1#
sub73220-87014
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-28010-02i198211-198404
WINE,RED/MAROON,TRIM4#
sub73230-28011
main73230-28010-04i198211-198404
BLUE,BLUE,TRIM1#
sub73230-28011
main73230-28011-02i198404-198408
WINE,RED/MAROON,TRIM4#
main73230-28011-04i198404-198408
BLUE,BLUE,TRIM1#
main73230-28012-02i198408-198508
WINE,WINE,TRIM4#
sub73230-28012
main73230-28012-04i198408-198508
BLUE,BLUE,TRIM1#
sub73230-28012
main73230-28020-02i198308-198508
*SAA OR S.OMAN SPEC,WINE,RED/MAROON,TRIM4#
sub73230-28020
main73230-28020-02i198401-198408
WINE,RED/MAROON,TRIM4#
sub73230-28020
main73230-28020-04i198401-198408
BLUE,BLUE,TRIM1#
sub73230-28020
main73230-28020-04i198308-198508
*SAA OR S.OMAN SPEC,BLUE,BLUE,TRIM1#
sub73230-28020
main73230-28030-02i198408-198508
WINE,WINE,TRIM4#
sub73230-28030
main73230-28030-04i198408-198508
BLUE,BLUE,TRIM1#
sub73230-28030
main73230-28040-04i198508-198608
BLUE,BLUE,TRIM8#
sub73230-28040
main73230-28040-06i198508-198608
BROWN,BROWN,TRIM4#
sub73230-28040
main73230-28041-04i198608-198808
BLUE,BLUE,TRIM8#
sub73230-28041
main73230-28041-06i198608-198808
BROWN,BROWN,TRIM4#
sub73230-28041
main73230-28050-04i198508-198608
BLUE,BLUE,TRIM8#
sub73230-28050
main73230-28050-06i198508-198608
BROWN,BROWN,TRIM4#
sub73230-28050
main73230-28051-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub73230-28051
main73230-28051-06i198608-198808
BROWN,BROWN,TRIM4#
sub73230-28051
main73230-28060-04i198508-198608
BLUE,BLUE,TRIM8#
sub73230-28060
main73230-28060-06i198508-198608
BROWN,BROWN,TRIM4#
sub73230-28060
main73230-28070-04i198508-198608
S.OMAN SPEC,BLUE,BLUE,TRIM8#
sub73230-28070
main73230-28070-06i198508-198608
S.OMAN SPEC,BROWN,BROWN,TRIM4#
sub73230-28070
main73230-28080-04i198703-198808
BLUE,BLUE,TRIM8#
sub73230-28080
main73230-28080-06i198703-198808
BROWN,BROWN,TRIM4#
sub73230-28080
main73230-87012-02i198211-198404
WINE,RED/MAROON,TRIM4#
sub73230-87015
main73230-87012-04i198211-198404
BLUE,BLUE,TRIM1#
sub73230-87015
main73230-87015-02i198404-198408
WINE,RED/MAROON,TRIM4#
sub73230-87015
main73230-87015-04i198404-198408
BLUE,BLUE,TRIM1#
sub73230-87015
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-28010-02i198211-198404
WINE,RED/MAROON,TRIM4#
sub73230-28011
main73230-28010-04i198211-198404
BLUE,BLUE,TRIM1#
sub73230-28011
main73230-28011-02i198404-198408
WINE,RED/MAROON,TRIM4#
main73230-28011-04i198404-198408
BLUE,BLUE,TRIM1#
main73230-28012-02i198408-198508
WINE,WINE,TRIM4#
sub73230-28012
main73230-28012-04i198408-198508
BLUE,BLUE,TRIM1#
sub73230-28012
main73230-28051-04i198608-198808
BLUE,BLUE,TRIM8#
sub73230-28051
main73230-28051-06i198608-198808
BROWN,BROWN,TRIM4#
sub73230-28051
main73240-28010-02i198211-198404
WINE,RED/MAROON,TRIM4#
sub73240-28011
main73240-28010-04i198211-198404
BLUE,BLUE,TRIM1#
sub73240-28011
main73240-28011-02i198404-198408
WINE,RED/MAROON,TRIM4#
main73240-28011-04i198404-198408
BLUE,BLUE,TRIM1#
main73240-28030-02i198308-198508
*SAA OR S.OMAN SPEC,WINE,RED/MAROON,TRIM4#
main73240-28030-02i198401-198408
WINE,RED/MAROON,TRIM4#
main73240-28030-04i198308-198508
*SAA OR S.OMAN SPEC,BLUE,BLUE,TRIM1#
main73240-28030-04i198401-198408
BLUE,BLUE,TRIM1#
main73240-28031-04i198508-198608
S.OMAN SPEC,BLUE,BLUE,TRIM8#
main73240-28031-06i198508-198608
S.OMAN SPEC,BROWN,BROWN,TRIM4#
main73240-28040-04i198508-198608
BLUE,BLUE,TRIM8#
sub73240-28040
main73240-28040-06i198508-198608
BROWN,BROWN,TRIM4#
sub73240-28040
main73240-28041-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub73240-28041
main73240-28041-06i198608-198808
BROWN,BROWN,TRIM4#
sub73240-28041
main73240-28050-04i198508-198608
BLUE,BLUE,TRIM8#
sub73240-28050
main73240-28050-06i198508-198608
BROWN,BROWN,TRIM4#
sub73240-28050
73241ACASE, SEAT BELT RETRACTOR, RH
main73241-28010i198211-198805
RR NO.1 SEAT
sub73241-28040
main73241-28020i198211-198808
RR NO.2 SEAT
main73241-28040i198805-198808
RR NO.1 SEAT
73242ACASE, SEAT BELT RETRACTOR, LH
main73241-28020i198211-198808
RR NO.2 SEAT
main73241-28040i198211-198808
RR NO.1 SEAT
main73242-28010i198211-198808
RR NO.1 SEAT
73297COVER, QUARTER TRIM OR CENTER PILLAR BELT HOLE
main73297-28010-02i198408-198508
RH,WINE,WINE,TRIM4#
sub73297-28010
main73297-28010-03i198211-198408
RH,GRAY,GRAY,TRIM1#
sub73297-28010
main73297-28010-04i198408-198508
RH,BLUE,BLUE,TRIM1#
sub73297-28010
main73297-28010-05i198211-198408
RH,BEIGE,BEIGE,TRIM4#
sub73297-28010
main73297-28010-06i198508-198808
RH,BROWN,BROWN,TRIM4#
sub73297-28010
main73297-28010-13i198608-198808
RH,GRAY,SHADOW GRAY,TRIM1#
sub73297-28010
main73297-28010-14i198508-198808
RH,BLUE,BLUE,TRIM8#
sub73297-28010
main73298-28010-02i198408-198508
LH,WINE,WINE,TRIM4#
sub73298-28010
main73298-28010-03i198211-198408
LH,GRAY,GRAY,TRIM1#
sub73298-28010
main73298-28010-04i198408-198508
LH,BLUE,BLUE,TRIM1#
sub73298-28010
main73298-28010-05i198211-198408
LH,BEIGE,BEIGE,TRIM4#
sub73298-28010
main73298-28010-06i198508-198808
LH,BROWN,BROWN,TRIM4#
sub73298-28010
main73298-28010-13i198608-198808
LH,GRAY,SHADOW GRAY,TRIM1#
sub73298-28010
main73298-28010-14i198508-198808
LH,BLUE,BLUE,TRIM8#
sub73298-28010
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
main73350-28010-02i198211-198404
WINE,RED/MAROON,TRIM4#
sub73350-28011
main73350-28010-04i198211-198404
BLUE,BLUE,TRIM1#
sub73350-28011
main73350-28011-02i198404-198408
WINE,RED/MAROON,TRIM4#
sub73350-28011
main73350-28011-04i198404-198408
BLUE,BLUE,TRIM1#
sub73350-28011
main73350-28020-02i198211-198408
WINE,RED/MAROON,TRIM4#
sub73350-28020
main73350-28020-04i198211-198408
BLUE,BLUE,TRIM1#
sub73350-28020
main73350-28050-02i198408-198508
WINE,WINE,TRIM4#
sub73350-28050
main73350-28050-04i198408-198508
BLUE,BLUE,TRIM1#
sub73350-28050
main73350-28050-06i198508-198608
BROWN,BROWN,TRIM4#
sub73350-28050
main73350-28050-14i198508-198608
BLUE,BLUE,TRIM8#
sub73350-28050
main73350-28051-03i198608-198801
GRAY,SHADOW GRAY,TRIM1#
sub73350-28052
main73350-28051-06i198608-198801
BROWN,BROWN,TRIM4#
sub73350-28052
main73350-28052-03i198801-198808
GRAY,SHADOW GRAY,TRIM1#
sub73350-28052
main73350-28052-06i198801-198808
BROWN,BROWN,TRIM4#
sub73350-28052
main73350-28060-02i198408-198508
WINE,WINE,TRIM4#
sub73350-28060
main73350-28060-04i198408-198508
BLUE,BLUE,TRIM1#
sub73350-28060
main73350-28060-06i198508-198608
BROWN,BROWN,TRIM4#
sub73350-28060
main73350-28060-14i198508-198608
BLUE,BLUE,TRIM8#
sub73350-28060
main73350-28061-04i198608-198808
BLUE,BLUE,TRIM8#
sub73350-28061
main73350-28061-06i198608-198808
BROWN,BROWN,TRIM4#
sub73350-28061
main73350-28070-02i198408-198508
WINE,WINE,TRIM4#
sub73350-28070
main73350-28070-04i198408-198508
BLUE,BLUE,TRIM1#
sub73350-28070
main73350-28080-04i198508-198608
BLUE,BLUE,TRIM8#
sub73350-28080
main73350-28080-06i198508-198608
BROWN,BROWN,TRIM4#
sub73350-28080
main73350-28081-04i198608-198808
BLUE,BLUE,TRIM8#
sub73350-28081
main73350-28081-06i198608-198808
BROWN,BROWN,TRIM4#
sub73350-28081
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
main73360-28010-02i198211-198404
WINE,RED/MAROON,TRIM4#
sub73360-28011
main73360-28010-04i198211-198404
BLUE,BLUE,TRIM1#
sub73360-28011
main73360-28011-02i198404-198408
WINE,RED/MAROON,TRIM4#
sub73360-28011
main73360-28011-04i198404-198408
BLUE,BLUE,TRIM1#
sub73360-28011
main73360-28020-02i198211-198408
WINE,RED/MAROON,TRIM4#
main73360-28020-04i198211-198408
BLUE,BLUE,TRIM1#
main73360-28030-02i198408-198508
WINE,WINE,TRIM4#
sub73360-28030
main73360-28030-04i198408-198508
BLUE,BLUE,TRIM1#
sub73360-28030
main73360-28040-02i198408-198508
WINE,WINE,TRIM4#
sub73360-28040
main73360-28040-04i198408-198508
BLUE,BLUE,TRIM1#
sub73360-28040
main73360-28041-04i198508-198608
BLUE,BLUE,TRIM8#
sub73360-28041
main73360-28041-04i198508-198608
FR,W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
sub73360-28041
main73360-28041-06i198508-198608
BROWN,BROWN,TRIM4#
sub73360-28041
main73360-28041-06i198508-198608
FR,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub73360-28041
main73360-28042-04i198608-198808
BLUE,BLUE,TRIM8#
sub73360-28042
main73360-28042-04i198608-198808
FR,W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
sub73360-28042
main73360-28042-06i198608-198808
FR,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub73360-28042
main73360-28042-06i198608-198808
BROWN,BROWN,TRIM4#
sub73360-28042
main73360-28050-04i198508-198608
BLUE,BLUE,TRIM1#
sub73360-28051
main73360-28050-06i198508-198608
BROWN,BROWN,TRIM4#
sub73360-28051
main73360-28051-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub73360-28051
main73360-28051-04i198608-198808
BLUE,BLUE,TRIM8#
sub73360-28051
main73360-28051-06i198608-198808
BROWN,BROWN,TRIM4#
sub73360-28051
main73360-28060-04i198508-198608
RR,W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
sub73360-28061
main73360-28060-06i198508-198608
RR,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub73360-28061
main73360-28061-04i198608-198808
RR,W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
sub73360-28061
main73360-28061-06i198608-198808
RR,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub73360-28061
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
main73370-28010-02i198211-198404
WINE,RED/MAROON,TRIM4#
sub73370-28011
main73370-28010-04i198211-198404
BLUE,BLUE,TRIM8#
sub73370-28011
main73370-28011-02i198404-198408
WINE,RED/MAROON,TRIM4#
main73370-28011-04i198404-198408
BLUE,BLUE,TRIM8#
main73370-28020-02i198211-198408
WINE,RED/MAROON,TRIM4#
sub73370-28020
main73370-28020-04i198211-198408
BLUE,BLUE,TRIM8#
sub73370-28020
main73370-28030-02i198408-198508
WINE,WINE,TRIM4#
main73370-28030-04i198408-198508
BLUE,BLUE,TRIM8#
main73370-28040-02i198408-198508
WINE,WINE,TRIM4#
main73370-28040-04i198408-198508
BLUE,BLUE,TRIM8#
main73370-28041-04i198508-198608
FR,W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
sub73370-28041
main73370-28041-04i198508-198608
BLUE,BLUE,TRIM8#
sub73370-28041
main73370-28041-06i198508-198608
BROWN,BROWN,TRIM4#
sub73370-28041
main73370-28041-06i198508-198608
FR,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub73370-28041
main73370-28042-04i198608-198808
FR,W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
sub73370-28042
main73370-28042-04i198608-198808
BLUE,BLUE,TRIM8#
sub73370-28042
main73370-28042-06i198608-198808
GRAY,BROWN,TRIM1#
sub73370-28042
main73370-28042-06i198608-198808
FR,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub73370-28042
main73370-28050-04i198508-198608
BLUE,BLUE,TRIM8#
sub73370-28051
main73370-28050-06i198508-198608
BROWN,BROWN,TRIM4#
sub73370-28051
main73370-28051-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub73370-28051
main73370-28051-04i198608-198808
BLUE,BLUE,TRIM8#
sub73370-28051
main73370-28051-06i198608-198808
BROWN,BROWN,TRIM4#
sub73370-28051
main73370-28060-04i198508-198608
RR,W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
main73370-28060-06i198508-198608
RR,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
main73370-28061-04i198608-198808
RR,W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
sub73370-28061
main73370-28061-06i198608-198808
RR,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub73370-28061
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
main73380-28010-02i198211-198404
WINE,RED/MAROON,TRIM4#
sub73380-28011
main73380-28010-04i198211-198404
BLUE,BLUE,TRIM1#
sub73380-28011
main73380-28011-02i198404-198408
WINE,RED/MAROON,TRIM4#
main73380-28011-04i198404-198408
BLUE,BLUE,TRIM1#
main73380-28012-02i198408-198508
WINE,WINE,TRIM4#
main73380-28012-04i198408-198508
BLUE,BLUE,TRIM1#
main73380-28020-02i198211-198408
WINE,RED/MAROON,TRIM4#
main73380-28020-04i198211-198408
BLUE,BLUE,TRIM1#
main73380-28021-02i198408-198508
WINE,WINE,TRIM4#
main73380-28021-04i198408-198508
BLUE,BLUE,TRIM1#
main73380-28030-04i198508-198608
W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
main73380-28030-06i198508-198608
W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
main73380-28031-03i198608-198808
W/SWIVEL SEAT,GRAY,SHADOW GRAY,TRIM1#
sub73380-28031
main73380-28031-06i198608-198808
W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub73380-28031
main73380-28040-04i198508-198608
BLUE,BLUE,TRIM8#
sub73380-28040
main73380-28040-06i198508-198608
BROWN,BROWN,TRIM4#
sub73380-28040
main73380-28041-04i198608-198808
BLUE,BLUE,TRIM8#
sub73380-28041
main73380-28041-06i198608-198808
BROWN,BROWN,TRIM4#
sub73380-28041
main73380-28051-04i198508-198608
FR,W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
main73380-28051-06i198508-198608
FR,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
main73380-28052-04i198608-198808
FR,W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
main73380-28052-06i198608-198808
FR,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
main73380-28060-04i198508-198608
BLUE,BLUE,TRIM8#
sub73380-28060
main73380-28060-06i198508-198608
BROWN,BROWN,TRIM4#
sub73380-28060
main73380-28061-04i198608-198808
BLUE,BLUE,TRIM8#
sub73380-28061
main73380-28061-06i198608-198808
BROWN,BROWN,TRIM4#
sub73380-28061
main73380-28070-04i198508-198608
BLUE,BLUE,TRIM8#
sub73380-28070
main73380-28070-06i198508-198608
BROWN,BROWN,TRIM4#
sub73380-28070
main73380-28071-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub73380-28071
main73380-28071-06i198608-198808
BROWN,BROWN,TRIM4#
sub73380-28071
main73380-28080-04i198508-198608
RR,W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
main73380-28080-06i198508-198608
RR,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
main73380-28081-04i198608-198808
RR,W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
main73380-28081-06i198608-198808
RR,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
main73390-28010-02i198211-198404
WINE,RED/MAROON,TRIM4#
sub73390-28011
main73390-28010-04i198211-198404
BLUE,BLUE,TRIM1#
sub73390-28011
main73390-28011-02i198404-198408
WINE,RED/MAROON,TRIM4#
main73390-28011-04i198404-198408
BLUE,BLUE,TRIM1#
main73390-28012-02i198408-198508
WINE,WINE,TRIM4#
main73390-28012-04i198408-198508
BLUE,BLUE,TRIM1#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
main73380-28030-04i198508-198608
W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
main73380-28030-06i198508-198608
W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
main73380-28031-03i198608-198808
W/SWIVEL SEAT,GRAY,SHADOW GRAY,TRIM1#
sub73380-28031
main73380-28031-06i198608-198808
W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub73380-28031
main73380-28040-04i198508-198608
BLUE,BLUE,TRIM8#
sub73380-28040
main73380-28040-06i198508-198608
BROWN,BROWN,TRIM4#
sub73380-28040
main73380-28041-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub73380-28041
main73380-28041-06i198608-198808
BROWN,BROWN,TRIM4#
sub73380-28041
main73380-28051-04i198508-198608
FR,W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
main73380-28051-06i198508-198608
FR,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
main73380-28052-04i198608-198808
FR,W/SWIVEL SEAT,GRAY,BLUE,TRIM1#
main73380-28052-06i198608-198808
FR,W/SWIVEL SEAT,BROWN,BROWN,TRIM8#
main73380-28080-04i198508-198608
RR,W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
main73380-28080-06i198508-198608
RR,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
main73380-28081-04i198608-198808
RR,W/SWIVEL SEAT,GRAY,BLUE,TRIM1#
main73380-28081-06i198608-198808
RR,W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
main73390-28010-02i198211-198404
WINE,RED/MAROON,TRIM4#
sub73390-28011
main73390-28010-04i198211-198404
BLUE,BLUE,TRIM1#
sub73390-28011
main73390-28011-02i198404-198408
WINE,RED/MAROON,TRIM4#
main73390-28011-04i198404-198408
BLUE,BLUE,TRIM1#
main73390-28012-02i198408-198508
WINE,WINE,TRIM4#
main73390-28012-04i198408-198508
BLUE,BLUE,TRIM1#
main73390-28020-02i198211-198408
WINE,RED/MAROON,TRIM4#
sub73390-28020
main73390-28020-04i198211-198408
BLUE,BLUE,TRIM1#
sub73390-28020
main73390-28021-02i198408-198508
WINE,WINE,TRIM4#
main73390-28021-04i198408-198508
BLUE,BLUE,TRIM1#
main73390-28030-02i198211-198404
WINE,RED/MAROON,TRIM4#
sub73390-28031
main73390-28030-04i198211-198404
BLUE,BLUE,TRIM1#
sub73390-28031
main73390-28031-02i198404-198408
WINE,RED/MAROON,TRIM4#
main73390-28031-04i198404-198408
BLUE,BLUE,TRIM1#
main73390-28032-02i198408-198508
WINE,WINE,TRIM4#
main73390-28032-04i198408-198508
BLUE,BLUE,TRIM1#
main73390-28040-04i198508-198608
BLUE,BLUE,TRIM8#
sub73390-28040
main73390-28040-06i198508-198608
BROWN,BROWN,TRIM4#
sub73390-28040
main73390-28041-04i198608-198808
BLUE,BLUE,TRIM8#
sub73390-28041
main73390-28041-06i198608-198808
BROWN,BROWN,TRIM4#
sub73390-28041
main73390-28050-04i198508-198608
BLUE,BLUE,TRIM8#
main73390-28050-06i198508-198608
BROWN,BROWN,TRIM4#
main73390-28051-04i198608-198808
BLUE,BLUE,TRIM8#
sub73390-28051
main73390-28051-06i198608-198808
BROWN,BROWN,TRIM4#
sub73390-28051
73550BELT ASSY, REAR NO.2 SEAT LAP TYPE, CENTER
main73550-28010-02i198211-198404
WINE,RED/MAROON,TRIM4#
sub73550-28011
main73550-28010-04i198211-198404
BLUE,BLUE,TRIM1#
sub73550-28011
main73550-28011-02i198404-198408
WINE,RED/MAROON,TRIM4#
main73550-28011-04i198404-198408
BLUE,BLUE,TRIM1#
main73550-28020-02i198211-198408
WINE,RED/MAROON,TRIM4#
main73550-28020-04i198211-198408
BLUE,BLUE,TRIM1#
main73550-28040-02i198408-198508
WINE,WINE,TRIM4#
sub73550-28040
main73550-28040-04i198408-198508
BLUE,BLUE,TRIM1#
sub73550-28040
main73550-28050-02i198408-198508
WINE,WINE,TRIM4#
sub73550-28050
main73550-28050-04i198408-198508
BLUE,BLUE,TRIM1#
sub73550-28050
main73550-28060-04i198508-198608
BLUE,BLUE,TRIM8#
sub73550-28060
main73550-28060-06i198508-198608
BROWN,BROWN,TRIM4#
sub73550-28060
main73550-28061-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub73550-28061
main73550-28061-04i198608-198808
BLUE,BLUE,TRIM8#
sub73550-28061
main73550-28061-06i198608-198808
BROWN,BROWN,TRIM4#
sub73550-28061
main73550-28070-04i198508-198608
BLUE,BLUE,TRIM8#
sub73550-28070
main73550-28070-06i198508-198608
BROWN,BROWN,TRIM4#
sub73550-28070
main73550-28071-04i198608-198808
BLUE,BLUE,TRIM8#
sub73550-28071
main73550-28071-06i198608-198808
BROWN,BROWN,TRIM4#
sub73550-28071
73560BELT ASSY, REAR NO.2 SEAT, OUTER RH
main73560-28010-02i198211-198404
WINE,RED/MAROON,TRIM4#
sub73560-28011
main73560-28010-04i198211-198404
BLUE,BLUE,TRIM1#
sub73560-28011
main73560-28011-02i198404-198408
WINE,RED/MAROON,TRIM4#
main73560-28011-04i198404-198408
BLUE,BLUE,TRIM1#
main73560-28020-02i198211-198408
WINE,RED/MAROON,TRIM4#
main73560-28020-04i198211-198408
BLUE,BLUE,TRIM1#
main73560-28030-02i198408-198508
WINE,WINE,TRIM4#
main73560-28030-04i198408-198508
BLUE,BLUE,TRIM1#
main73560-28040-02i198408-198508
WINE,WINE,TRIM4#
main73560-28040-04i198408-198508
BLUE,BLUE,TRIM1#
main73560-28041-04i198508-198608
BLUE,BLUE,TRIM8#
main73560-28041-06i198508-198608
BROWN,BROWN,TRIM4#
main73560-28042-04i198608-198808
BLUE,BLUE,TRIM8#
sub73560-28042
main73560-28042-06i198608-198808
BROWN,BROWN,TRIM4#
sub73560-28042
main73560-28050-04i198508-198608
BLUE,BLUE,TRIM8#
sub73560-28050
main73560-28050-06i198508-198608
BROWN,BROWN,TRIM4#
sub73560-28050
main73560-28051-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub73560-28051
main73560-28051-04i198608-198808
BLUE,BLUE,TRIM8#
sub73560-28051
main73560-28051-06i198608-198808
BROWN,BROWN,TRIM4#
sub73560-28051
73570BELT ASSY, REAR NO.2 SEAT, OUTER LH
main73570-28010-02i198211-198404
WINE,RED/MAROON,TRIM4#
sub73570-28011
main73570-28010-04i198211-198404
BLUE,BLUE,TRIM1#
sub73570-28011
main73570-28011-02i198404-198408
WINE,RED/MAROON,TRIM4#
sub73570-28011
main73570-28011-04i198404-198408
BLUE,BLUE,TRIM1#
sub73570-28011
main73570-28020-02i198211-198408
WINE,RED/MAROON,TRIM4#
sub73570-28021
main73570-28020-04i198211-198408
BLUE,BLUE,TRIM1#
sub73570-28021
main73570-28030-02i198408-198508
WINE,WINE,TRIM4#
sub73570-28030
main73570-28030-04i198408-198508
BLUE,BLUE,TRIM1#
sub73570-28030
main73570-28040-02i198408-198508
WINE,WINE,TRIM4#
main73570-28040-04i198408-198508
BLUE,BLUE,TRIM1#
main73570-28041-04i198508-198608
BLUE,BLUE,TRIM8#
sub73570-28041
main73570-28041-06i198508-198608
BROWN,BROWN,TRIM4#
sub73570-28041
main73570-28042-04i198608-198808
BLUE,BLUE,TRIM8#
sub73570-28042
main73570-28042-06i198608-198808
BROWN,BROWN,TRIM4#
sub73570-28042
main73570-28050-04i198508-198608
BLUE,BLUE,TRIM8#
sub73570-28050
main73570-28050-06i198508-198608
BROWN,BROWN,TRIM4#
sub73570-28050
main73570-28051-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub73570-28051
main73570-28051-04i198608-198808
BLUE,BLUE,TRIM8#
sub73570-28051
main73570-28051-06i198608-198808
BROWN,BROWN,TRIM4#
sub73570-28051
73580BELT ASSY, REAR NO.2 SEAT, INNER RH
main73580-28010-02i198211-198404
WINE,RED/MAROON,TRIM4#
sub73580-28011
main73580-28010-04i198211-198404
BLUE,BLUE,TRIM1#
sub73580-28011
main73580-28011-02i198404-198408
WINE,RED/MAROON,TRIM4#
sub73580-28011
main73580-28011-04i198404-198408
BLUE,BLUE,TRIM1#
sub73580-28011
main73580-28012-02i198408-198508
WINE,WINE,TRIM4#
sub73580-28012
main73580-28012-04i198408-198508
BLUE,BLUE,TRIM1#
sub73580-28012
main73580-28020-04i198508-198608
BLUE,BLUE,TRIM8#
sub73580-28020
main73580-28020-06i198508-198608
BROWN,BROWN,TRIM4#
sub73580-28020
main73580-28021-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub73580-28021
main73580-28021-04i198608-198808
BLUE,BLUE,TRIM8#
sub73580-28021
main73580-28021-06i198608-198808
BROWN,BROWN,TRIM4#
sub73580-28021
main73580-28030-04i198508-198608
BLUE,BLUE,TRIM8#
sub73580-28030
main73580-28030-06i198508-198608
BROWN,BROWN,TRIM4#
sub73580-28030
73590BELT ASSY, REAR NO.2 SEAT, INNER LH
main73580-28010-02i198211-198404
WINE,RED/MAROON,TRIM4#
sub73580-28011
main73580-28010-04i198211-198404
BLUE,BLUE,TRIM1#
sub73580-28011
main73580-28011-02i198404-198408
WINE,RED/MAROON,TRIM4#
sub73580-28011
main73580-28011-04i198404-198408
BLUE,BLUE,TRIM1#
sub73580-28011
main73580-28012-02i198408-198508
WINE,WINE,TRIM4#
sub73580-28012
main73580-28012-04i198408-198508
BLUE,BLUE,TRIM1#
sub73580-28012
main73580-28020-04i198508-198608
BLUE,BLUE,TRIM8#
sub73580-28020
main73580-28020-06i198508-198608
BROWN,BROWN,TRIM4#
sub73580-28020
main73580-28021-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub73580-28021
main73580-28021-04i198608-198808
BLUE,BLUE,TRIM8#
sub73580-28021
main73580-28021-06i198608-198808
BROWN,BROWN,TRIM4#
sub73580-28021
main73580-28030-04i198508-198608
BLUE,BLUE,TRIM8#
sub73580-28030
main73580-28030-06i198508-198608
BROWN,BROWN,TRIM4#
sub73580-28030
9018906018
main90189-06018
9161141020
main91611-41020
9327018020
main93270-18020
9354016012
main93540-16012
9354055016
main93540-55016

25 parts on this diagram · 2 diagrams in section

SEAT BELT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
