FRONT DOOR WINDOW REGULATOR & HINGE

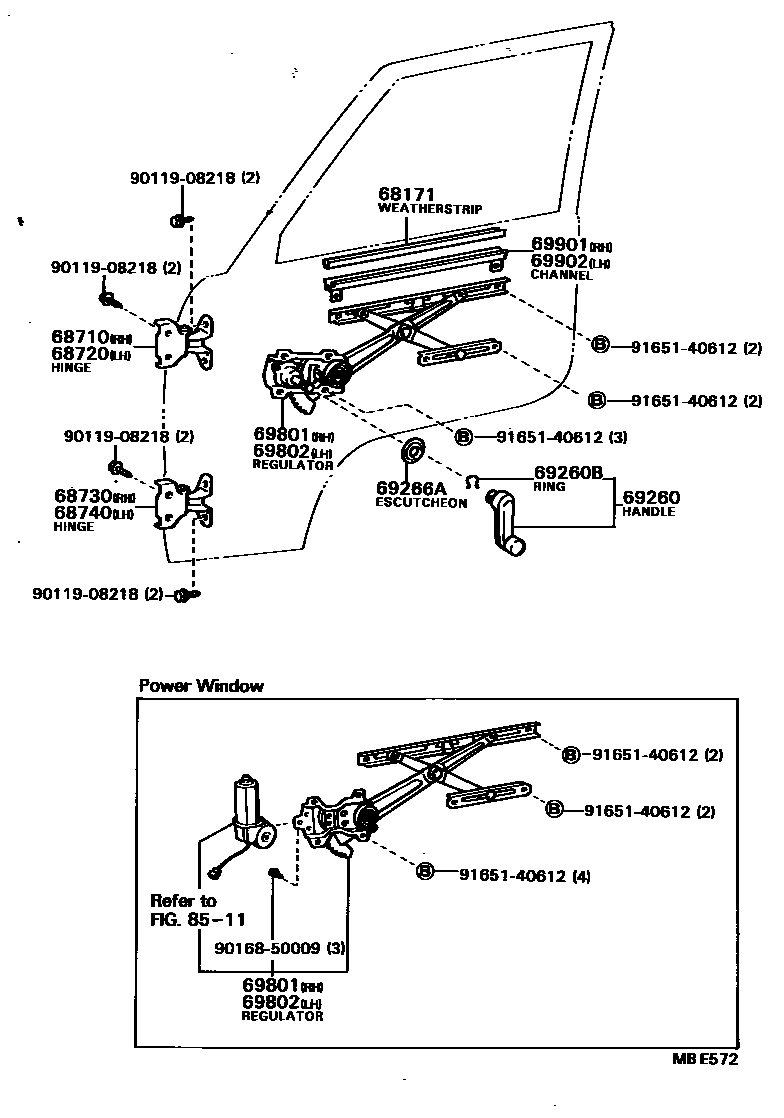

Parts diagram
68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
main68171-22020i198211-198808
sub69971-22010
68710HINGE ASSY, FRONT DOOR, UPPER RH
main68710-87002i198211-198808
68720HINGE ASSY, FRONT DOOR, UPPER LH
main68720-87001i198211-198808
68730HINGE ASSY, FRONT DOOR, LOWER RH
main68720-87001i198211-198808
68740HINGE ASSY, FRONT DOOR, LOWER LH
main68710-87002i198211-198808
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-10040-02i198408-198508
WINE,RED/MAROON,TRIM4#
sub69260-10040
sub69260-16010
main69260-10040-20i198508-198808
BROWN,BROWN,TRIM4#
sub69260-10040
sub69260-16010
main69260-10040-23i198308-198408
GRAY,GRAY,TRIM1#
sub69260-10040
sub69260-16010
main69260-10040-25i198308-198408
BEIGE,BEIGE,TRIM4#
sub69260-10040
sub69260-16010
main69260-10040-30i198508-198808
BEIGE,BEIGE,TRIM4#
sub69260-10040
sub69260-16010
main69260-10040-33i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub69260-10040
sub69260-16010
main69260-10040-34i198408-198508
BLUE,BLUE,TRIM1#
sub69260-10040
sub69260-16010
main69260-10040-54i198508-198808
BLUE,BLUE,TRIM8#
sub69260-10040
sub69260-16010
main69260-14020-05i198211-198308
BEIGE,BEIGE,TRIM4#
sub69260-14020
sub69260-22030
main69260-14020-23i198211-198308
GRAY,GRAY,TRIM1#
sub69260-14020
sub69260-22030
main69260-14030-02i198408-198508
WINE,RED/MAROON,TRIM4#
sub69260-14030
main69260-14030-05i198211-198408
BEIGE,BEIGE,TRIM4#
sub69260-14030
main69260-14030-20i198508-198808
BLUE,BLUE,TRIM8#
sub69260-14030
main69260-14030-23i198211-198408
GRAY,GRAY,TRIM1#
sub69260-14030
main69260-14030-33i198608-198808
GRAY,GRAY,TRIM1#
sub69260-14030
main69260-14030-35i198508-198808
BEIGE,BEIGE,TRIM4#
sub69260-14030
main69260-14030-54i198408-198508
BLUE,BEIGE,TRIM1#
sub69260-14030
main69260-14030-56i198508-198808
BROWN,BROWN,TRIM4#
sub69260-14030
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90520-01002i198211-198808
sub90520-01274
69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)
main69285-22010i198211-198808
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69810-87002i198211-198808
main69810-87003i198211-198608
W/*PW
main69810-87004i198608-198808
W/*PW
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69820-87002i198211-198808
main69820-87003i198211-198608
W/*PW
main69820-87004i198608-198808
W/*PW
69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
main69901-12080i198211-198308
main69901-87002i198308-198808
69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
main69901-12080i198211-198308
main69901-87002i198308-198808
8511
9011908218
main90119-08218
9016850009
main90168-50009
9165140612
main91651-40612

16 parts on this diagram · 1 diagram in section
