FRONT DOOR LOCK & HANDLE

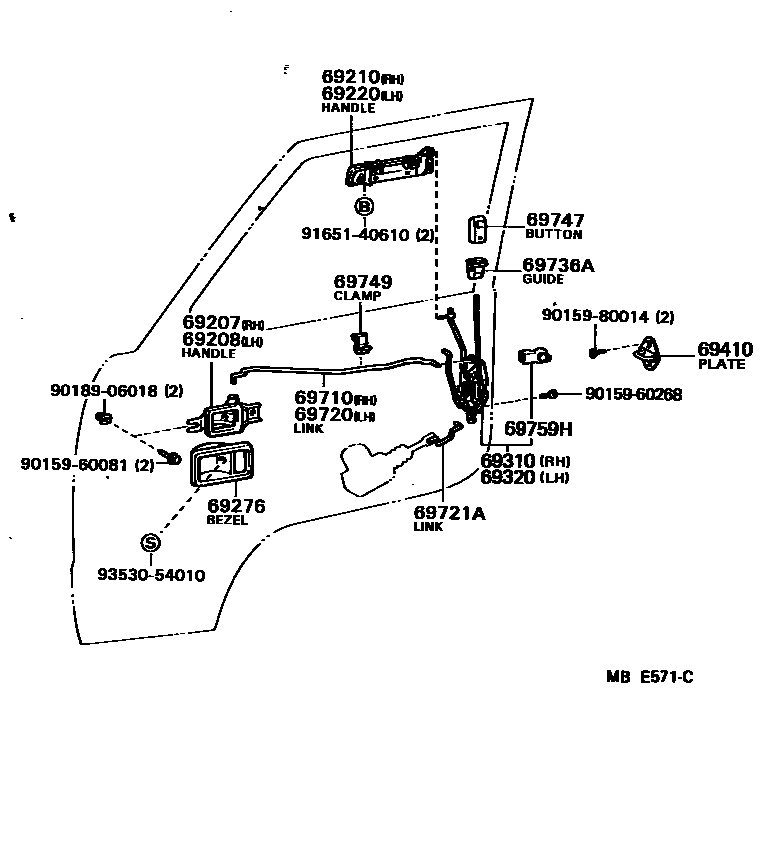

Parts diagram
69207HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-12070-03i198608-198808
GRAY,GRAY,TRIM1#
sub69205-12070
main69205-12070-12i198408-198508
WINE,WINE,TRIM4#
sub69205-12070
main69205-12070-26i198508-198808
BROWN,BROWN,TRIM4#
sub69205-12070
main69205-12070-34i198408-198508
GRAY,BLUE,TRIM1#
sub69205-12070
main69205-12070-36i198508-198808
BROWN,BROWN,TRIM4#
sub69205-12070
main69205-12070-44i198508-198808
BLUE,BLUE,TRIM8#
sub69205-12070
main69205-32010-05i198211-198408
BEIGE,BEIGE,TRIM4#
sub69205-32010
main69205-32010-23i198211-198408
GRAY,GRAY,TRIM1#
sub69205-32010
69208HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-12070-03i198608-198808
GRAY,GRAY,TRIM1#
sub69206-16040
sub69206-12070
main69206-12070-12i198408-198508
WINE,WINE,TRIM4#
sub69206-16040
sub69206-12070
main69206-12070-26i198508-198808
BROWN,BROWN,TRIM4#
sub69206-16040
sub69206-12070
main69206-12070-34i198408-198508
BLUE,BLUE,TRIM1#
sub69206-16040
sub69206-12070
main69206-12070-36i198508-198808
BROWN,BROWN,TRIM4#
sub69206-16040
sub69206-12070
main69206-12070-44i198508-198808
BLUE,BLUE,TRIM8#
sub69206-16040
sub69206-12070
main69206-32010-05i198211-198408
BEIGE,BEIGE,TRIM4#
sub69206-32010
main69206-32010-23i198211-198408
GRAY,GRAY,TRIM1#
sub69206-32010
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-87001i198211-198304
sub69210-87002
main69210-87002i198304-198808
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-87001i198211-198304
sub69220-87002
main69220-87002i198304-198808
69276BEZEL, FRONT DOOR INSIDE HANDLE
main69277-32020-05i198211-198311
BEIGE,BEIGE,TRIM4#
sub69277-32020
sub69277-89104
main69277-32020-23i198211-198311
GRAY,GRAY,TRIM1#
sub69277-32020
sub69277-89104
main69277-89104-02i198408-198508
WINE,WINE,TRIM4#
sub69277-32020
sub69277-89104
main69277-89104-05i198311-198408
BEIGE,BEIGE,TRIM4#
sub69277-32020
sub69277-89104
main69277-89104-13i198311-198408
GRAY,GRAY,TRIM1#
sub69277-32020
sub69277-89104
main69277-89104-14i198408-198508
BLUE,BLUE,TRIM1#
sub69277-32020
sub69277-89104
main69277-89104-23i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub69277-32020
sub69277-89104
main69277-89104-24i198508-198808
BLUE,BLUE,TRIM8#
sub69277-32020
sub69277-89104
main69277-89104-26i198508-198808
BROWN,BROWN,TRIM4#
sub69277-32020
sub69277-89104
main69277-89104-46i198508-198808
BROWN,BROWN,TRIM4#
sub69277-32020
sub69277-89104
69310LOCK ASSY, FRONT DOOR, RH
main69310-87001i198211-198408
main69310-87003i198408-198708
main69310-87004i198408-198508
main69310-87005i198508-198708
main69310-87006i198708-198808
main69310-87007i198708-198808
69320LOCK ASSY, FRONT DOOR, LH
main69320-87001i198211-198408
main69320-87003i198408-198708
main69320-87004i198408-198708
main69320-87005i198708-198808
main69320-87006i198708-198808
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-87001i198211-198808
69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH
main69711-87001i198211-198408
main69711-87002i198408-198808
69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH
main69712-87001i198211-198408
main69712-87002i198408-198808
69721ALINK, FRONT DOOR LOCK ACTUATOR
main69721-87002i198408-198808
RH
main69722-87002i198408-198808
LH
69736AGUIDE, FRONT DOOR LOCK LINK
main69736-12030i198408-198808
main69736-22021i198211-198408
69747BUTTON, DOOR LOCKING
main69741-32010-01i198211-198808
BLACK,BLACK,TRIM1#,4#
sub69741-32010
sub69741-90K00
main69741-87003-03i198608-198808
GRAY,GRAY,TRIM1#
sub69741-87003
main69741-87003-04i198508-198808
BLUE,BLUE,TRIM8#
sub69741-87003
main69741-87003-06i198508-198808
BROWN,BROWN,TRIM4#
sub69741-87003
69749CLAMP, FRONT DOOR LOCK LINK
main69749-20010i198408-198808
main69749-30020i198211-198408
69759HSNAP, DOOR LOCK CONTROL LINK, NO.2
main69759-20040i198508-198808
LH
main69759-20050i198508-198808
RH
main69759-20100i198508-198808
RH
main69759-20110i198508-198808
LH
9015960081
main90159-60081
9015960268
main90159-60268
9015980014
main90159-80014
9018906018
main90189-06018
9165140610
main91651-40610
9353054010
main93530-54010

21 parts on this diagram · 1 diagram in section
