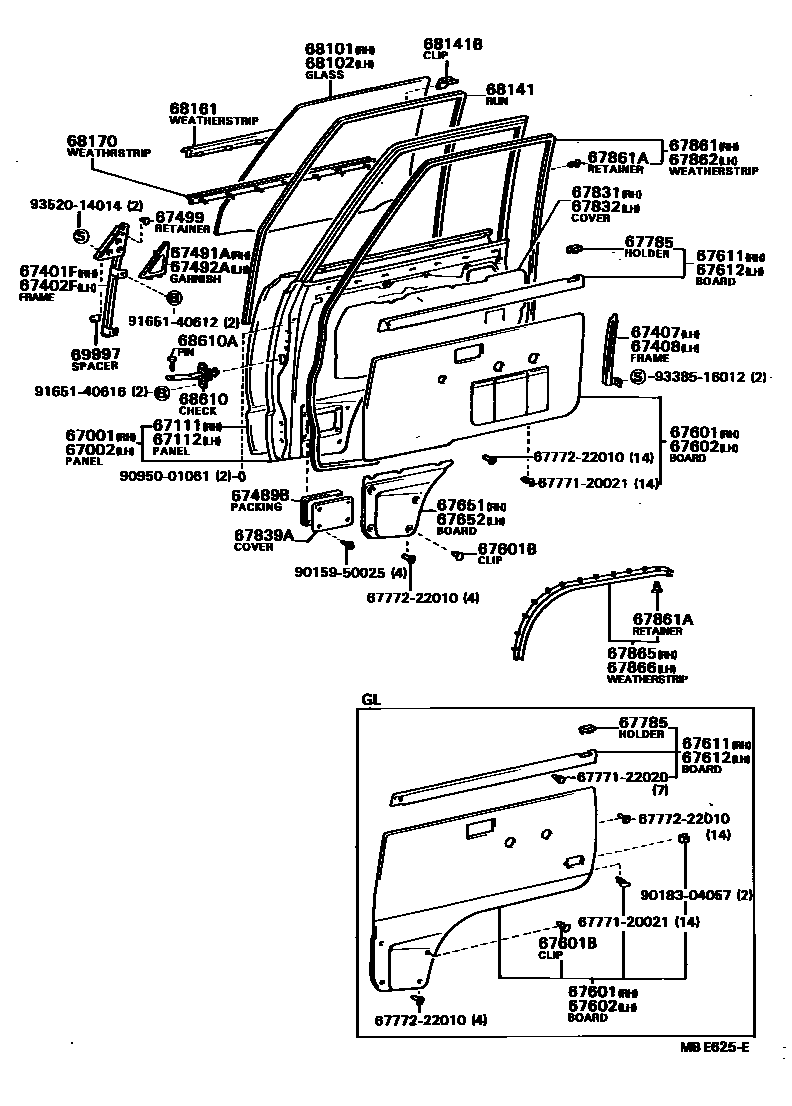

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
W/LARGE SIDE MOULDING
67002PANEL SUB-ASSY, FRONT DOOR, LH
W/LARGE SIDE MOULDING
67111PANEL, FRONT DOOR, OUTER RH
W/LARGE SIDE MOULDING
67112PANEL, FRONT DOOR, OUTER LH
W/LARGE SIDE MOULDING
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67489BPACKING, FRONT DOOR LOWER COVER
67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
BEIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
W/*PW,BLUE,BLUE,TRIM8#
W/*PW,BROWN,BROWN,TRIM4#
W/*PW,GRAY,SHADOW GRAY,TRIM1#
W/*PW,BROWN,BROWN,TRIM4#
W/*PW,GRAY,GRAY,TRIM1#
W/*PW,BROWN,BROWN,TRIM4#
BEIGE
W/*PW,BLUE,BLUE,TRIM8#
W/*PW,BROWN,BROWN,TRIM4#
GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
W/*PW,GRAY,GRAY,TRIM1#
W/*PW,BEIGE,BEIGE,TRIM4#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
W/*PW,BLUE,BLUE,TRIM8#
W/*PW,BROWN,BROWN,TRIM4#
W/*PW,BLUE,BLUE,TRIM8#
W/*PW,BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
67601BCLIP(FOR FRONT DOOR TRIM BOARD)
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
BEIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
W/*PW,BLUE,BLUE,TRIM8#
W/*PW,BROWN,BROWN,TRIM4#
W/*PW,GRAY,SHADOW GRAY,TRIM1#
W/*PW,BROWN,BROWN,TRIM4#
W/*PW,GRAY,SHADOW GRAY,TRIM1#
W/*PW,BROWN,BROWN,TRIM4#
W/*PW,GRAY,GRAY,TRIM1#
W/*PW,BROWN,BROWN,TRIM4#
BEIGE
GRAY,GRAY,TRIM1#
BEIGE,BEIGE,TRIM4#
W/*PW,GRAY,GRAY,TRIM1#
W/*PW,BEIGE,BEIGE,TRIM4#
W/*PW,BLUE,BLUE,TRIM8#
W/*PW,BROWN,BROWN,TRIM4#
GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
W/*PW,GRAY,GRAY,TRIM1#
W/*PW,BEIGE,BEIGE,TRIM4#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
W/*PW,BLUE,BLUE,TRIM8#
W/*PW,BROWN,BROWN,TRIM4#
W/*PW,BLUE,BLUE,TRIM8#
W/*PW,BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
W/*PW,BLUE,BLUE,TRIM8#
W/*PW,BROWN,BROWN,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
67611BOARD, FRONT DOOR TRIM, UPPER RH
WINE,RED/MAROON,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
67612BOARD, FRONT DOOR TRIM, UPPER LH
WINE,RED/MAROON,TRIM4#
GRAY,GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BEIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
BEIGE,BEIGE,TRIM4#
67651BOARD, FRONT DOOR TRIM, LOWER RH
GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
BEIGE
67652BOARD, FRONT DOOR TRIM, LOWER LH
GRAY,SHADOW GRAY,TRIM1#
BLUE,BLUE,TRIM8#
BROWN,BROWN,TRIM4#
BEIGE
67785HOLDER, FRONT DOOR LOCKING BUTTON COLLAR
67839ACOVER, FRONT DOOR SERVICE HOLE, LOWER
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
67862WEATHERSTRIP, FRONT DOOR, LH
67865WEATHERSTRIP, FRONT DOOR, LOWER RH
67866WEATHERSTRIP, FRONT DOOR LOWER, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TEM,T=4.0,*TEM,T=4.0
sub68111-87004
*TT,T=4.0,*TT,T=4.0
*TT,T=4.0,BRONZE,BRONZE,*TT,T=4.0
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TEM,T=4.0,*TEM,T=4.0
sub68112-87003
*TT,T=4.0,*TT,T=4.0
*TT,T=4.0,BRONZE,BRONZE,*TT,T=4.0
68141RUN, FRONT DOOR GLASS
W/NAPPED
68141BCLIP, DOOR GLASS RUN
68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
RH
LH
69997SPACER, FRONT DOOR GLASS GUIDE
6777120021WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20021
6777122020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-22020
6777222010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-22010
9015950025
main90159-50025
9018304057
main90183-04057
9095001061
main90950-01061
9165140612
main91651-40612
9165140616
main91651-40616
9338516012
main93385-16012
9352014014
main93520-14014
47 parts on this diagram · 4 diagrams in section
