ROOF HEADLINING & SILENCER PAD

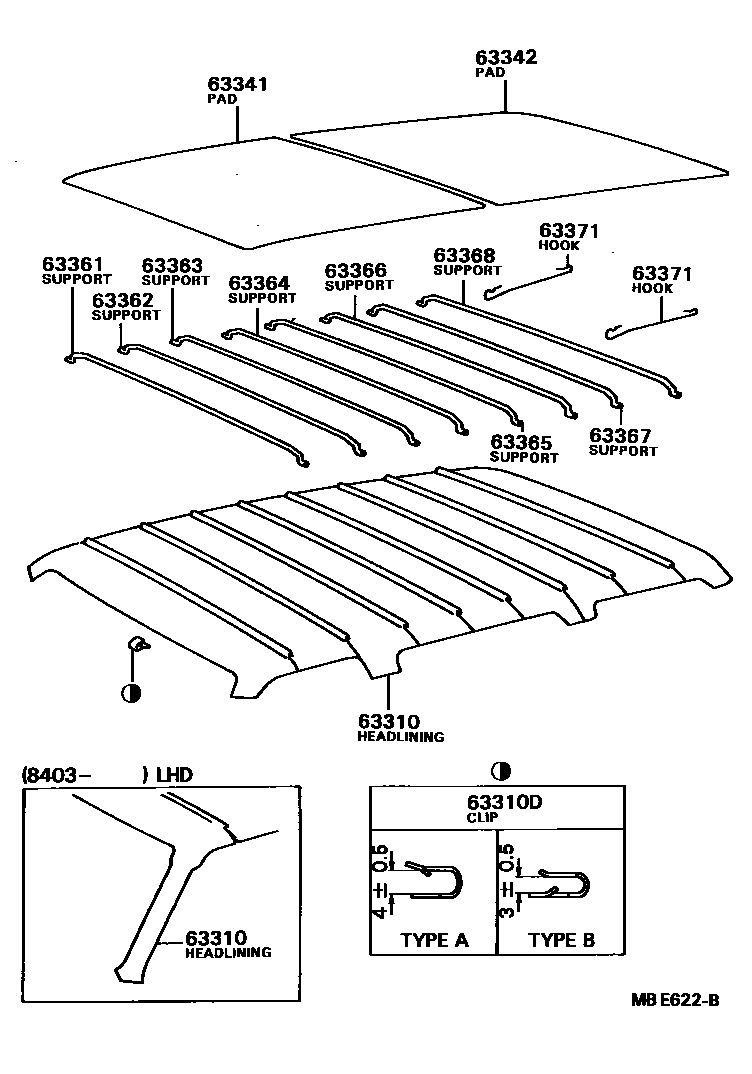

Parts diagram
63310HEADLINING ASSY, ROOF
main63310-28010-03i198508-198808
PLANT.C21-C24,GRAY,GRAY,TRIM1#,8#
main63310-28010-03i198211-198508
GRAY,GRAY,TRIM1#
main63310-28010-05i198211-198408
BEIGE,BEIGE,TRIM4#
main63310-28010-15i198408-198508
BEIGE,BEIGE,TRIM4#
main63310-28010-25i198508-198808
PLANT.C21-C24,BEIGE,BEIGE,TRIM4#
main63310-28030-03i198508-198808
PLANT.K11,GRAY,GRAY,TRIM1#,8#
main63310-28030-05i198508-198808
PLANT.K11,BEIGE,BEIGE,TRIM4#
main63310-87001-03i198605-198808
PLANT.K11,GRAY,GRAY,TRIM8#
main63310-87001-05i198605-198808
PLANT.K11,BEIGE,BEIGE,TRIM4#
main63310-87006-03i198508-198605
PLANT.K11,GRAY,GRAY,TRIM8#
sub63310-87001
main63310-87006-25i198508-198605
PLANT.K11,BEIGE,BEIGE,TRIM4#
sub63310-87001
main63310-87008-03i198211-198508
GRAY,GRAY,TRIM1#
main63310-87008-03i198508-198808
PLANT.C21-C24,GRAY,GRAY,TRIM8#
main63310-87008-05i198211-198408
BEIGE,BEIGE,TRIM4#
main63310-87008-15i198408-198508
BEIGE,BEIGE,TRIM4#
main63310-87008-25i198508-198808
PLANT.C21-C24,BEIGE,BEIGE,TRIM4#
63310DCLIP, ROOF HEADLINING
main90468-04008i198211-198808
TYPE B
main90468-04017i198211-198808
TYPE A
63341PAD, ROOF SILENCER, NO.1
main63342-87007i198211-198808
sub63341-22H92
63342PAD, ROOF SILENCER, NO.2
main63342-87007i198211-198808
sub63341-22H92
63361SUPPORT, ROOF HEADLINING, NO.1
main63361-87003i198211-198808
L=1100
sub63361-87006
main63361-87004i198211-198808
L=1110
sub63361-87006
main63361-87006i198211-198808
L=1105
63362SUPPORT, ROOF HEADLINING, NO.2
main63362-87003i198211-198808
L=1113
sub63362-87004
main63362-87004i198211-198808
L=1123
main63362-87006i198211-198808
L=1118
sub63362-87004
63363SUPPORT, ROOF HEADLINING, NO.3
main63363-87003i198211-198808
L=1122
sub63363-87004
main63363-87004i198211-198808
L=1132
main63363-87006i198211-198808
L=1127
sub63363-87004
63364SUPPORT, ROOF HEADLINING, NO.4
main63363-87003i198211-198808
L=1122
sub63363-87004
main63363-87004i198211-198808
L=1132
main63363-87006i198211-198808
L=1127
sub63363-87004
63365SUPPORT, ROOF HEADLINING, NO.5
main63363-87003i198211-198808
L=1122
sub63363-87004
main63363-87004i198211-198808
L=1132
main63363-87006i198211-198808
L=1127
sub63363-87004
63366SUPPORT, ROOF HEADLINING, NO.6
main63363-87003i198211-198808
L=1122
sub63363-87004
main63363-87004i198211-198808
L=1132
main63363-87006i198211-198808
L=1127
sub63363-87004
63367SUPPORT, ROOF HEADLINING, NO.7
main63363-87003i198211-198808
L=1122
sub63363-87004
main63363-87004i198211-198808
L=1132
main63363-87006i198211-198808
L=1127
sub63363-87004
63368SUPPORT, ROOF HEADLINING, NO.8
main63363-87003i198211-198808
L=1122
sub63363-87004
main63363-87004i198211-198808
L=1132
main63363-87006i198211-198808
L=1127
sub63363-87004
63371HOOK, ROOF HEADLINING SUPPORT
main63372-87002i198211-198808

13 parts on this diagram · 4 diagrams in section
