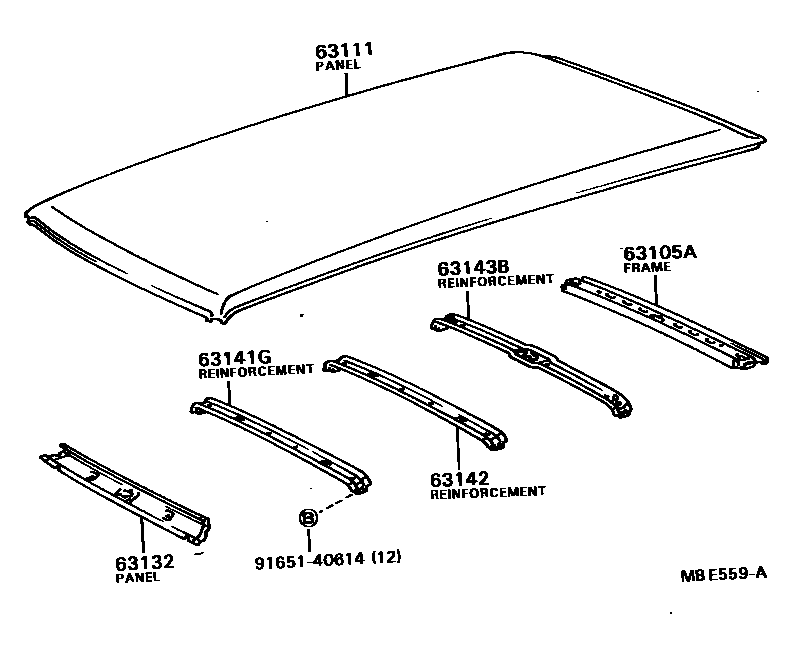

ROOF PANEL & BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-87003iCR21,YR2#,31..MRF..GL¥15,400198211-198808

sub63105-87012¥17,800

main63105-87006iYR2#..MRF..GL¥18,000198211-198808

W/SUN ROOF

sub63105-28020¥23,000

main63105-87009iCR21,YR2#..DLX¥12,800198211-198808

main63105-87010iYR22..HRF¥11,200198508-198808

63111PANEL, ROOF

main63111-87005iCR21,YR2#,31..MRF¥83,100198211-198808

main63111-87007iYR2#..MRF..GL¥82,600198211-198808

W/SUN ROOF

main63111-87013iYR2#..GL..EUR¥83,100198508-198808

W/SUN ROOF,ROOF RACK

main63111-87015iYR22..HRF¥87,000198508-198808

63132PANEL, WINDSHIELD HEADER, INNER

main63102-87005iYR2#,31..LHD..GL¥4,060198508-198808

W/O SUN ROOF

main63132-87004iCR21,YR2#,31¥3,920198211-198808

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-87009iCR21,YR2#,31..MRF¥3,960198211-198808

main63141-87014iYR22..HRF¥2,710198508-198808

63142REINFORCEMENT, ROOF PANEL, NO.2

main63141-87009iCR21,YR2#,31..MRF¥3,960198211-198808

main63142-87005iYR22..HRF¥3,860198508-198808

sub63142-87008¥4,350

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63103-87006iYR22..HRF¥6,600198508-198808

main63143-87003iCR21,YR2#,31..MRF¥5,700198211-198808

9165140614

main91651-40614¥160

7 parts on this diagram · 7 diagrams in section
