CONSOLE BOX & BRACKET

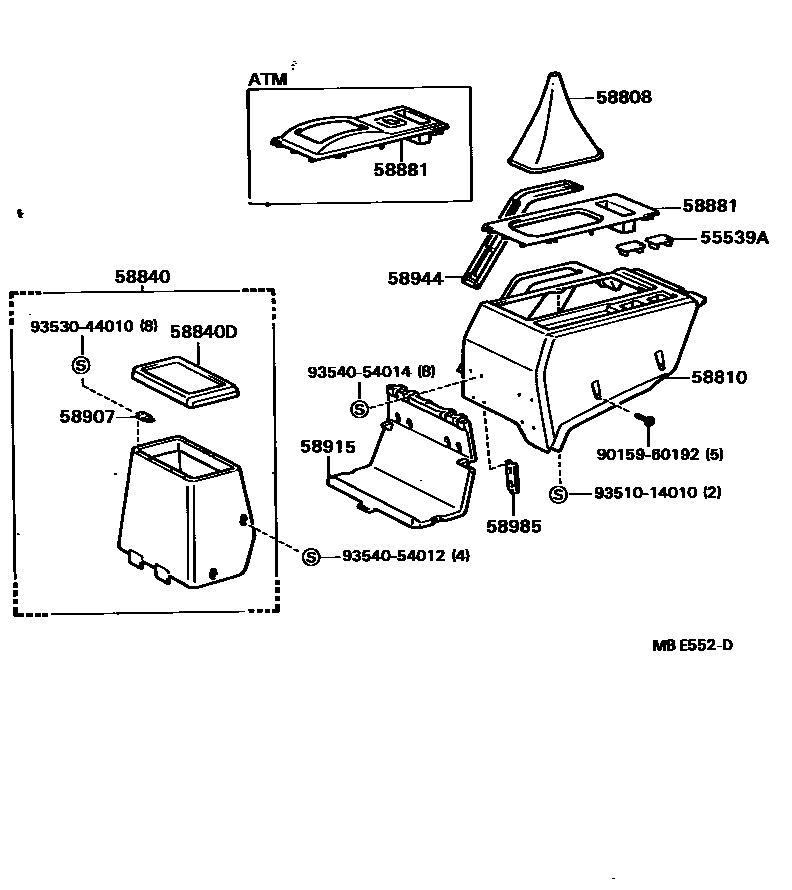

Parts diagram
55539ACOVER, SPARE SWITCH HOLE
main55539-87001-02×2i198408-198508
WINE,WINE,TRIM4#
main55539-87001-03×2i198211-198408
GRAY,GRAY,TRIM1#
main55539-87001-04×2i198408-198508
BLUE,BLUE,TRIM1#
main55539-87001-05×2i198211-198408
BEIGE,BEIGE,TRIM4#
58808COVER SUB-ASSY, SHIFTING HOLE
main58808-87001-02i198408-198508
WINE,WINE,TRIM4#
main58808-87001-03i198211-198408
GRAY,GRAY,TRIM1#
main58808-87001-04i198408-198508
BLUE,BLUE,TRIM1#
main58808-87001-05i198211-198408
BEIGE,BEIGE,TRIM4#
main58808-87002-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
main58808-87002-04i198608-198808
BLUE,BLUE,TRIM8#
main58808-87002-06i198508-198808
BROWN,BROWN,TRIM4#
58810CONSOLE ASSY
main58810-28010-03i198211-198404
W/COOL BOX,GRAY,GRAY,TRIM1#
main58810-28010-05i198211-198404
W/COOL BOX,BEIGE,BEIGE,TRIM4#
main58810-28011-02i198408-198508
WINE,WINE,TRIM4#
main58810-28011-03i198404-198408
W/COOL BOX,GRAY,GRAY,TRIM1#
main58810-28011-04i198408-198508
W/COOL BOX,BLUE,BLUE,TRIM1#
main58810-28011-05i198404-198408
W/COOL BOX,BEIGE,BEIGE,TRIM4#
main58810-28020-03i198211-198404
GRAY,GRAY,TRIM1#
main58810-28020-05i198211-198404
BEIGE,BEIGE,TRIM4#
main58810-28021-02i198408-198508
WINE,WINE,TRIM4#
main58810-28021-03i198404-198408
GRAY,GRAY,TRIM1#
main58810-28021-04i198408-198508
BLUE,BLUE,TRIM1#
main58810-28021-05i198404-198408
BEIGE,BEIGE,TRIM4#
main58810-28040-03i198211-198404
GRAY,GRAY,TRIM1#
main58810-28040-05i198211-198404
BEIGE,BEIGE,TRIM4#
main58810-28041-02i198408-198508
WINE,WINE,TRIM4#
main58810-28041-03i198404-198408
GRAY,GRAY,TRIM1#
main58810-28041-04i198408-198508
BLUE,BLUE,TRIM1#
main58810-28041-05i198404-198408
BEIGE,BEIGE,TRIM4#
main58811-28030-04i198508-198608
W/COOL BOX,BLUE,BLUE,TRIM8#
main58811-28030-06i198508-198608
BROWN,BROWN,TRIM4#
main58811-28031-03i198608-198808
W/COOL BOX,GRAY,SHADOW GRAY,TRIM1#
main58811-28031-06i198608-198808
W/COOL BOX,BROWN,BROWN,TRIM4#
main58811-28040-04i198508-198608
BLUE,BLUE,TRIM8#
main58811-28040-06i198508-198608
BROWN,BROWN,TRIM4#
main58811-28041-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
main58811-28041-06i198608-198808
BROWN,BROWN,TRIM4#
main58811-28050-06i198708-198808
BROWN,BROWN,TRIM4#
main58811-28060-03i198708-198808
DENMARK,NORWAY,SWEDEN,GRAY,SHADOW GRAY,TRIM1#
main58811-28060-06i198708-198808
DENMARK,NORWAY,SWEDEN,BROWN,BROWN,TRIM4#
main58811-87005-02i198408-198508
WINE,WINE,TRIM4#
main58811-87005-03i198211-198408
W/COOL BOX,GRAY,GRAY,TRIM1#
main58811-87005-04i198408-198508
W/COOL BOX,BLUE,BLUE,TRIM1#
main58811-87005-05i198211-198408
W/COOL BOX,BEIGE,BEIGE,TRIM4#
main58811-87007-02i198408-198508
WINE,WINE,TRIM4#
main58811-87007-03i198211-198408
GRAY,GRAY,TRIM1#
main58811-87007-04i198408-198508
BLUE,BLUE,TRIM1#
main58811-87007-05i198211-198408
BEIGE,BEIGE,TRIM4#
main58811-87011-04i198508-198808
W/COOL BOX,BLUE,BLUE,TRIM8#
main58811-87011-06i198508-198808
BROWN,BROWN,TRIM4#
main58811-87012-04i198508-198808
BLUE,BLUE,TRIM8#
main58811-87012-06i198508-198808
BROWN,BROWN,TRIM4#
58840BOX ASSY, CONSOLE COMPARTMENT
main58820-28010-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
main58820-28010-04i198608-198808
BLUE,BLUE,TRIM8#
main58820-28010-06i198608-198808
BROWN,BROWN,TRIM4#
main58820-87003-02i198408-198508
WINE,WINE,TRIM4#
main58820-87003-03i198211-198408
GRAY,GRAY,TRIM1#
main58820-87003-04i198408-198508
BLUE,BLUE,TRIM1#
main58820-87003-05i198211-198408
BEIGE,BEIGE,TRIM4#
main58820-87003-06i198508-198608
BROWN,BROWN,TRIM4#
main58820-87003-14i198508-198608
BLUE,BLUE,TRIM8#
58840DDOOR, CONSOLE COMPARTMENT BOX
main58951-28010-03i198608-198808
OUTER,GRAY,SHADOW GRAY,TRIM1#
main58951-28010-04i198608-198808
OUTER,BLUE,BLUE,TRIM8#
main58951-28010-06i198608-198808
OUTER,BROWN,BROWN,TRIM4#
main58951-87003-02i198408-198508
WINE,WINE,TRIM4#
main58951-87003-03i198211-198408
GRAY,GRAY,TRIM1#
main58951-87003-04i198408-198508
BLUE,BLUE,TRIM1#
main58951-87003-05i198211-198408
BEIGE,BEIGE,TRIM4#
main58951-87003-06i198508-198608
BROWN,BROWN,TRIM4#
main58951-87003-14i198508-198608
BLUE,BLUE,TRIM8#
main58952-28010-03i198608-198808
INNER,GRAY,SHADOW GRAY,TRIM1#
main58952-28010-04i198608-198808
INNER,BLUE,BLUE,TRIM8#
main58952-28010-06i198608-198808
INNER,BROWN,BROWN,TRIM4#
58881COVER, SHIFTING HOLE
main58848-87002-02i198408-198508
WINE,WINE,TRIM4#
main58848-87002-03i198211-198408
GRAY,GRAY,TRIM1#
main58848-87002-04i198408-198508
BLUE,BLUE,TRIM1#
main58848-87002-05i198211-198408
BEIGE,BEIGE,TRIM4#
main58848-87003-02i198408-198508
WINE,WINE,TRIM4#
main58848-87003-03i198211-198408
GRAY,GRAY,TRIM1#
main58848-87003-04i198408-198508
BLUE,BLUE,TRIM1#
main58848-87003-05i198211-198408
BEIGE,BEIGE,TRIM4#
58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
main58907-28010×2i198608-198808
main58907-87003×2i198211-198608
58915PANEL, BOX BOTTOM
main58915-87001-02i198408-198508
WINE,WINE,TRIM4#
main58915-87001-03i198211-198408
GRAY,GRAY,TRIM1#
main58915-87001-04i198408-198508
BLUE,BLUE,TRIM1#
main58915-87001-05i198211-198408
BEIGE,BEIGE,TRIM4#
main58915-87001-06i198508-198808
BROWN,BROWN,TRIM4#
main58915-87001-13i198608-198808
GRAY,SHADOW GRAY,TRIM1#
main58915-87001-14i198608-198808
BLUE,BLUE,TRIM8#
58944COVER, PARKING BRAKE HOLE
main58941-28010i198508-198608
main58941-28020i198608-198808
main58941-87005-01i198211-198508
BLACK,BLACK
main58941-87010-01i198508-198808
BLACK,BLACK
58985RETAINER, CONSOLE BOX
main58985-87001×4i198211-198808
9015960192
main90159-60192
9351014010
main93510-14010
9353044010
main93530-44010
9354054012
main93540-54012
9354054014
main93540-54014

15 parts on this diagram · 4 diagrams in section
