EPC Data

FLOOR MAT & SILENCER PAD

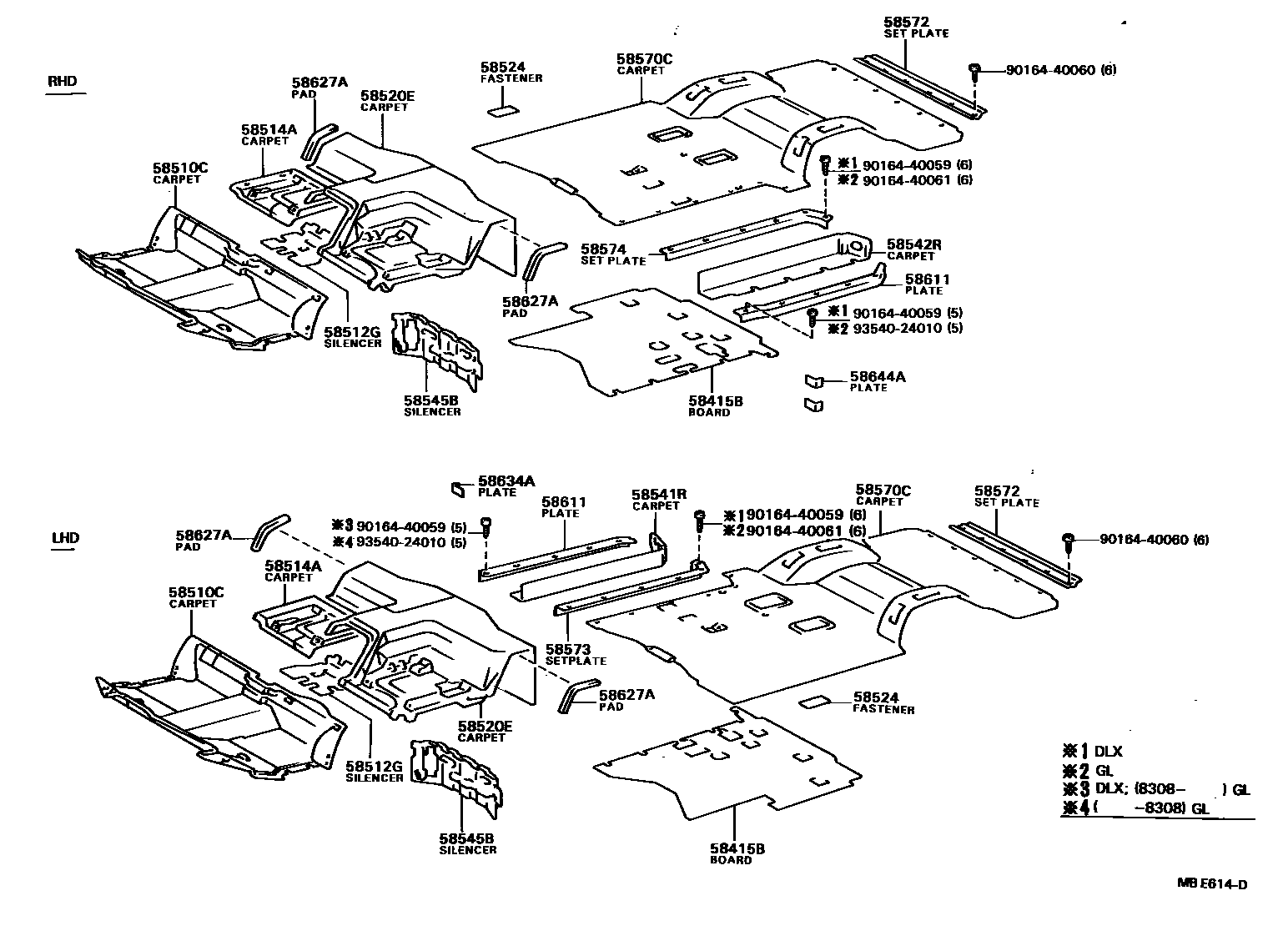

Parts diagram
58415BBOARD, REAR FLOOR, NO.1
main58415-28010i198211-198408
main58415-28011i198408-198808
main58415-28030i198508-198808
W/SWIVEL SEAT
main58415-28060i198701-198808
DENMARK SPEC
main58415-87001i198211-198408
main58415-87005i198408-198508
main58415-87006i198408-198808
main58415-87010i198508-198808
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-28010i198211-198408
main58510-28011-02i198408-198508
W/*HC,WINE,WINE,TRIM4#
main58510-28012-06i198508-198808
W/*HC,BROWN,BROWN,TRIM4#
main58510-28020-02i198211-198308
WINE,RED/MAROON,TRIM4#
main58510-28020-03i198211-198308
GRAY,GRAY,TRIM1#
main58510-28021-02i198308-198408
WINE,RED/MAROON,TRIM4#
main58510-28021-03i198308-198408
GRAY,GRAY,TRIM1#
main58510-28040i198211-198408
W/COOL BOX
main58510-28041-02i198408-198508
W/COOL BOX,WINE,WINE,TRIM4#
main58510-28042-06i198508-198808
W/COOL BOX,BROWN,BROWN,TRIM4#
main58510-28050i198211-198408
W/COOL BOX,*WS
main58510-28051-02i198408-198508
W/COOL BOX,*WS,WINE,WINE,TRIM4#
main58510-28052-06i198508-198808
W/COOL BOX,*WS,BROWN,BROWN,TRIM4#
main58510-28060-02i198211-198308
W/COOL BOX,WINE,RED/MAROON,TRIM4#
main58510-28060-03i198211-198308
W/COOL BOX,GRAY,GRAY,TRIM1#
main58510-28061-02i198308-198408
W/COOL BOX,WINE,RED/MAROON,TRIM4#
main58510-28061-03i198308-198408
W/COOL BOX,GRAY,GRAY,TRIM1#
main58510-28070-02i198211-198308
W/COOL BOX,*WS,WINE,RED/MAROON,TRIM4#
main58510-28070-03i198211-198308
W/COOL BOX,*WS,GRAY,GRAY,TRIM1#
main58510-28071-02i198308-198408
W/COOL BOX,*WS,WINE,RED/MAROON,TRIM4#
main58510-28071-03i198308-198408
W/COOL BOX,*WS,GRAY,GRAY,TRIM1#
main58510-28100-02i198308-198408
W/FOOTREST,WINE,RED/MAROON,TRIM4#
main58510-28100-03i198308-198408
W/FOOTREST,GRAY,GRAY,TRIM1#
main58510-28100-04i198408-198508
W/FOOTREST,*HC,BLUE,BLUE,TRIM1#
main58510-28101-03i198610-198808
W/FOOTREST,*HC,GRAY,SHADOW GRAY,TRIM1#
main58510-28101-04i198508-198608
W/FOOTREST,*HC,BLUE,BLUE,TRIM8#
main58510-28101-06i198610-198808
W/FOOTREST,*HC,BROWN,BROWN,TRIM4#
main58510-28111-02i198408-198508
W/FOOTREST,COOL BOX,WINE,WINE,TRIM4#
main58510-28111-04i198408-198508
W/FOOTREST,COOL BOX,BLUE,BLUE,TRIM1#
main58510-28112-03i198608-198808
W/FOOTREST,COOL BOX,GRAY,SHADOW GRAY,TRIM1#
main58510-28112-04i198508-198608
W/FOOTREST,COOL BOX,BLUE,BLUE,TRIM8#
main58510-28112-06i198508-198808
W/FOOTREST,COOL BOX,BROWN,BROWN,TRIM4#
main58510-28121-02i198408-198508
W/FOOTREST,COOL BOX,*WS,WINE,WINE,TRIM4#
main58510-28121-04i198408-198508
W/FOOTREST,COOL BOX,*WS,BLUE,BLUE,TRIM1#
main58510-28122-03i198608-198808
W/FOOTREST,COOL BOX,*WS,GRAY,SHADOW GRAY,TRIM1#
main58510-28122-04i198508-198608
W/FOOTREST,COOL BOX,*WS,BLUE,BLUE,TRIM8#
main58510-28122-06i198508-198808
W/FOOTREST,COOL BOX,*WS,BROWN,BROWN,TRIM4#
main58510-28140-02i198408-198508
WINE,WINE,TRIM4#
main58510-28141-06i198508-198808
BROWN,BROWN,TRIM4#
main58510-28150-02i198408-198508
W/FOOTREST,WINE,WINE,TRIM4#
main58510-28150-04i198408-198508
W/FOOTREST,BLUE,BLUE,TRIM1#
main58510-28151-03i198608-198808
W/FOOTREST,GRAY,SHADOW GRAY,TRIM1#
main58510-28151-04i198508-198608
W/FOOTREST,BLUE,BLUE,TRIM8#
main58510-28151-06i198508-198808
W/FOOTREST,BROWN,BROWN,TRIM4#
main58510-87040i198211-198408
main58510-87041-02i198211-198308
WINE,RED/MAROON,TRIM4#
main58510-87041-03i198211-198308
GRAY,GRAY,TRIM1#
main58510-87042i198211-198408
W/COOL BOX
main58510-87043i198211-198408
W/COOL BOX,*WS
main58510-87044-02i198211-198308
W/COOL BOX,WINE,RED/MAROON,TRIM4#
main58510-87044-03i198211-198308
W/COOL BOX,GRAY,GRAY,TRIM1#
main58510-87045-02i198211-198308
W/COOL BOX,*WS,WINE,RED/MAROON,TRIM4#
main58510-87045-03i198211-198308
W/COOL BOX,*WS,GRAY,GRAY,TRIM1#
main58510-87046-02i198308-198408
WINE,RED/MAROON,TRIM4#
main58510-87046-03i198308-198408
GRAY,GRAY,TRIM1#
main58510-87047-02i198308-198408
W/COOL BOX,WINE,RED/MAROON,TRIM4#
main58510-87047-03i198308-198408
W/COOL BOX,GRAY,GRAY,TRIM1#
main58510-87048-02i198308-198408
W/COOL BOX,*WS,WINE,RED/MAROON,TRIM4#
main58510-87048-03i198308-198408
W/COOL BOX,*WS,GRAY,GRAY,TRIM1#
main58510-87060-02i198408-198508
WINE,WINE,TRIM4#
main58510-87061-02i198408-198508
WINE,WINE,TRIM4#
main58510-87061-04i198408-198508
BLUE,BLUE,TRIM1#
main58510-87062-02i198408-198508
W/COOL BOX,WINE,WINE,TRIM4#
main58510-87063-02i198408-198508
W/COOL BOX,WINE,WINE,TRIM4#
main58510-87063-04i198408-198508
W/COOL BOX,BLUE,BLUE,TRIM1#
main58510-87064-02i198408-198508
W/COOL BOX,*WS,WINE,WINE,TRIM4#
main58510-87065-02i198408-198508
W/COOL BOX,*WS,WINE,WINE,TRIM4#
main58510-87065-04i198408-198508
W/COOL BOX,*WS,BLUE,BLUE,TRIM1#
main58510-87074-04i198508-198603
BLUE,BLUE,TRIM8#
main58510-87074-06i198508-198603
BROWN,BROWN,TRIM4#
main58510-87075-04i198508-198603
W/COOL BOX,BLUE,BLUE,TRIM8#
main58510-87075-06i198508-198603
W/COOL BOX,BROWN,BROWN,TRIM4#
main58510-87076-04i198508-198603
W/COOL BOX,*WS,BLUE,BLUE,TRIM8#
main58510-87076-06i198508-198603
W/COOL BOX,*WS,BROWN,BROWN,TRIM4#
main58510-87G01-06i198508-198603
BROWN,BROWN,TRIM4#
main58510-87G02-06i198508-198603
W/COOL BOX,BROWN,BROWN,TRIM4#
main58510-87G03-06i198508-198603
W/COOL BOX,*WS,BROWN,BROWN,TRIM4#
main58510-87G09-06i198603-198612
BROWN,BROWN,TRIM4#
main58510-87G10-06i198603-198808
W/COOL BOX,BROWN,BROWN,TRIM4#
main58510-87G11-04i198603-198808
BLUE,BLUE,TRIM8#
main58510-87G11-06i198603-198808
BROWN,BROWN,TRIM4#
main58510-87G12-04i198603-198808
W/COOL BOX,BLUE,BLUE,TRIM8#
main58510-87G12-06i198603-198808
W/COOL BOX,BROWN,BROWN,TRIM4#
main58510-87G13-06i198603-198808
W/COOL BOX,*WS,BROWN,BROWN,TRIM4#
main58510-87G14-04i198608-198808
W/COOL BOX,*WS,BLUE,BLUE,TRIM8#
main58510-87G14-06i198608-198808
W/COOL BOX,*WS,BROWN,BROWN,TRIM4#
main58510-87G16-06i198612-198808
BROWN,BROWN,TRIM4#
58512GSILENCER, FRONT FLOOR, NO.2
main58512-87004i198211-198508
main58512-87005i198508-198808
58514ACARPET, FLOOR, CENTER
main58530-28090i198211-198408
main58530-28091-02i198408-198508
WINE,WINE,TRIM4#
main58530-28092-06i198508-198808
BROWN,BROWN,TRIM4#
main58530-28100-02i198211-198308
WINE,RED/MAROON,TRIM4#
main58530-28100-03i198211-198308
GRAY,GRAY,TRIM1#
main58530-28101-02i198308-198408
WINE,RED/MAROON,TRIM4#
main58530-28101-03i198308-198408
GRAY,GRAY,TRIM1#
main58530-28101-04i198408-198508
BLUE,BLUE,TRIM1#
main58530-28101-12i198408-198508
WINE,WINE,TRIM4#
main58530-28102-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
main58530-28102-04i198508-198608
BLUE,BLUE,TRIM8#
main58530-28102-06i198508-198808
BROWN,BROWN,TRIM4#
main58530-28110i198211-198408
W/SEAT BELT
main58530-28111-02i198408-198508
W/SEAT BELT,WINE,WINE,TRIM4#
main58530-28112-06i198508-198808
W/SEAT BELT,BROWN,BROWN,TRIM4#
main58530-87035-02i198211-198305
WINE,RED/MAROON,TRIM4#
main58530-87035-03i198211-198305
GRAY,GRAY,TRIM1#
main58530-87067i198211-198305
main58530-87068i198211-198305
W/SEAT BELT
main58530-87070-02i198305-198308
WINE,RED/MAROON,TRIM4#
main58530-87070-03i198305-198308
GRAY,GRAY,TRIM1#
main58530-87072i198305-198408
W/SEAT BELT
main58530-87074i198305-198408
main58530-87076-02i198308-198408
WINE,RED/MAROON,TRIM4#
main58530-87076-03i198308-198408
GRAY,GRAY,TRIM1#
main58530-87076-04i198408-198508
BLUE,BLUE,TRIM1#
main58530-87076-12i198408-198508
WINE,WINE,TRIM4#
main58530-87079-02i198408-198508
W/SEAT BELT,WINE,WINE,TRIM4#
main58530-87079-06i198508-198603
BROWN,BROWN,TRIM4#
main58530-87G01-02i198408-198508
WINE,WINE,TRIM4#
main58530-87G03-04i198508-198603
BLUE,BLUE,TRIM8#
main58530-87G03-06i198508-198603
BROWN,BROWN,TRIM4#
main58530-87G04-06i198603-198808
BROWN,BROWN,TRIM4#
main58530-87G05-04i198603-198808
BLUE,BLUE,TRIM8#
main58530-87G05-06i198603-198808
BROWN,BROWN,TRIM4#
58520ECARPET ASSY, FRONT FLOOR, FRONT NO.2
main58520-28010i198211-198408
W/SEAT BELT
main58520-28011-02i198408-198508
W/SEAT BELT,WINE,WINE,TRIM4#
main58520-28012-06i198608-198808
W/SEAT BELT,BROWN,BROWN,TRIM4#
main58520-28020i198211-198408
W/*REH,SEAT BELT
main58520-28030-02i198211-198308
WINE,RED/MAROON,TRIM4#
main58520-28030-03i198211-198308
GRAY,GRAY,TRIM1#
main58520-28031-02i198308-198408
WINE,RED/MAROON,TRIM4#
main58520-28031-03i198308-198408
GRAY,GRAY,TRIM1#
main58520-28032-02i198408-198508
WINE,WINE,TRIM4#
main58520-28032-04i198408-198508
BLUE,BLUE,TRIM1#
main58520-28033-03i198608-198610
GRAY,SHADOW GRAY,TRIM1#
main58520-28033-06i198608-198610
BROWN,BROWN,TRIM4#
main58520-28040-02i198211-198308
W/*REH,WINE,RED/MAROON,TRIM4#
main58520-28040-03i198211-198308
W/*REH,GRAY,GRAY,TRIM1#
main58520-28041-02i198308-198408
W/*REH,WINE,RED/MAROON,TRIM4#
main58520-28041-03i198308-198408
W/*REH,GRAY,GRAY,TRIM1#
main58520-28042-02i198408-198508
W/*REH,WINE,WINE,TRIM4#
main58520-28042-04i198408-198508
W/*REH,BLUE,BLUE,TRIM1#
main58520-28043-03i198608-198610
W/*REH,GRAY,SHADOW GRAY,TRIM1#
main58520-28043-06i198608-198610
W/*REH,BROWN,BROWN,TRIM4#
main58520-28050i198211-198408
main58520-28051-02i198408-198508
WINE,WINE,TRIM4#
main58520-28052-06i198508-198608
BROWN,BROWN,TRIM4#
main58520-28053-06i198608-198808
BROWN,BROWN,TRIM4#
main58520-28060i198211-198408
W/*REH
main58520-28061-02i198408-198508
W/*REH,WINE,WINE,TRIM4#
main58520-28062-06i198508-198608
W/*REH,BROWN,BROWN,TRIM4#
main58520-28063-06i198608-198808
W/*REH,BROWN,BROWN,TRIM4#
main58520-28070i198211-198408
W/RR COOLER,SEAT BELT
main58520-28071-02i198408-198508
W/RR COOLER,SEAT BELT,WINE,WINE,TRIM4#
main58520-28080i198211-198408
W/RR COOLER
main58520-28081-02i198408-198508
W/RR COOLER,WINE,WINE,TRIM4#
main58520-28082-06i198508-198608
W/RR COOLER,BROWN,BROWN,TRIM4#
main58520-28083-06i198608-198808
W/RR COOLER,BROWN,BROWN,TRIM4#
main58520-28090-02i198211-198308
W/RR COOLER,WINE,RED/MAROON,TRIM4#
main58520-28090-03i198211-198308
W/RR COOLER,GRAY,GRAY,TRIM1#
main58520-28091-02i198308-198408
W/RR COOLER,WINE,RED/MAROON,TRIM4#
main58520-28091-03i198308-198408
W/RR COOLER,GRAY,GRAY,TRIM1#
main58520-28092-02i198408-198508
W/RR COOLER,WINE,WINE,TRIM4#
main58520-28092-04i198408-198508
W/RR COOLER,BLUE,BLUE,TRIM1#
main58520-28093-03i198608-198610
W/COOLER,GRAY,SHADOW GRAY,TRIM1#
main58520-28093-06i198608-198610
W/COOLER,BROWN,BROWN,TRIM4#
main58520-28140-02i198408-198508
W/*REH,SEAT BELT,WINE,WINE,TRIM4#
main58520-28141-06i198608-198808
W/*REH,SEAT BELT,BROWN,BROWN,TRIM4#
main58520-28160-06i198508-198608
W/SEAT BELT,BROWN,BROWN,TRIM4#
main58520-28170-06i198508-198608
W/RR COOLER,SEAT BELT,BROWN,BROWN,TRIM4#
main58520-28171-06i198608-198808
W/RR COOLER,SEAT BELT,BROWN,BROWN,TRIM4#
main58520-28180-04i198508-198608
BLUE,BLUE,TRIM8#
main58520-28180-06i198508-198608
BROWN,BROWN,TRIM4#
main58520-28190-04i198508-198608
W/COOLER,BLUE,BLUE,TRIM8#
main58520-28190-06i198508-198608
W/COOLER,BROWN,BROWN,TRIM4#
main58520-28200-04i198508-198608
W/*REH,BLUE,BLUE,TRIM8#
main58520-28200-06i198508-198608
W/*REH,BROWN,BROWN,TRIM4#
main58520-28210-06i198508-198608
W/*REH,SEAT BELT,BROWN,BROWN,TRIM4#
main58520-28220-03i198610-198808
GRAY,SHADOW GRAY,TRIM1#
main58520-28220-06i198610-198808
BROWN,BROWN,TRIM4#
main58520-28230-03i198610-198808
W/COOLER,GRAY,SHADOW GRAY,TRIM1#
main58520-28230-06i198610-198808
W/COOLER,BROWN,BROWN,TRIM4#
main58520-28240-03i198610-198808
W/*REH,GRAY,SHADOW GRAY,TRIM1#
main58520-28240-06i198610-198808
W/*REH,BROWN,BROWN,TRIM4#
main58520-87024-02i198211-198308
W/*REH,WINE,RED/MAROON,TRIM4#
main58520-87024-03i198211-198308
W/*REH,GRAY,GRAY,TRIM1#
main58520-87026i198211-198408
W/SEAT BELT
main58520-87027i198211-198408
W/*REH,SEAT BELT
main58520-87028i198211-198408
main58520-87029i198211-198408
W/*REH
main58520-87030i198211-198408
W/RR COOLER,SEAT BELT,BEIGE
main58520-87031i198211-198408
W/RR COOLER
main58520-87032-02i198211-198308
WINE,RED/MAROON,TRIM4#
main58520-87032-03i198211-198308
GRAY,GRAY,TRIM1#
main58520-87033-02i198211-198308
W/RR COOLER,WINE,RED/MAROON,TRIM4#
main58520-87033-03i198211-198308
W/RR COOLER,GRAY,GRAY,TRIM1#
main58520-87034-02i198308-198408
WINE,RED/MAROON,TRIM4#
main58520-87034-03i198308-198408
GRAY,GRAY,TRIM1#
main58520-87035-02i198308-198408
W/*REH,WINE,RED/MAROON,TRIM4#
main58520-87035-03i198308-198408
W/*REH,GRAY,GRAY,TRIM1#
main58520-87036-02i198308-198408
W/RR COOLER,WINE,RED/MAROON,TRIM4#
main58520-87036-03i198308-198408
W/RR COOLER,GRAY,GRAY,TRIM1#
main58520-87045-02i198408-198501
W/SEAT BELT,WINE,WINE,TRIM4#
main58520-87046-02i198408-198501
WINE,WINE,TRIM4#
main58520-87047-02i198408-198508
W/*REH,SEAT BELT,WINE,WINE,TRIM4#
main58520-87048-02i198408-198508
W/*REH,WINE,WINE,TRIM4#
main58520-87049-02i198408-198501
W/RR COOLER,WINE,WINE,TRIM4#
main58520-87050-02i198408-198501
W/RR COOLER,SEAT BELT,WINE,WINE,TRIM4#
main58520-87052-02i198408-198508
W/*REH,WINE,WINE,TRIM4#
main58520-87052-04i198408-198508
W/*REH,BLUE,BLUE,TRIM1#
main58520-87053-02i198408-198501
WINE,WINE,TRIM4#
main58520-87053-04i198408-198501
BLUE,BLUE,TRIM1#
main58520-87054-02i198408-198501
W/RR COOLER,WINE,WINE,TRIM4#
main58520-87054-04i198408-198501
W/RR COOLER,BLUE,BLUE,TRIM1#
main58520-87G03-06i198508-198603
W/*REH,BROWN,BROWN,TRIM4#
main58520-87G04-06i198508-198603
W/RR COOLER,BROWN,BROWN,TRIM4#
main58520-87G05-06i198508-198603
BROWN,BROWN,TRIM4#
main58520-87G07-04i198508-198603
W/RR COOLER,BLUE,BLUE,TRIM8#
main58520-87G07-06i198508-198603
W/RR COOLER,BROWN,BROWN,TRIM4#
main58520-87G08-04i198508-198603
W/RR COOLER,*REH,BLUE,BLUE,TRIM8#
main58520-87G08-06i198508-198603
W/RR COOLER,*REH,BROWN,BROWN,TRIM4#
main58520-87G15-02i198501-198508
W/SEAT BELT,WINE,WINE,TRIM4#
main58520-87G16-02i198501-198508
WINE,WINE,TRIM4#
main58520-87G17-02i198501-198508
W/RR COOLER,WINE,WINE,TRIM4#
main58520-87G18-02i198501-198508
W/RR COOLER,SEAT BELT,WINE,WINE,TRIM4#
main58520-87G20-02i198501-198508
WINE,WINE,TRIM4#
main58520-87G20-04i198501-198508
BLUE,BLUE,TRIM1#
main58520-87G21-02i198501-198508
W/RR COOLER,WINE,WINE,TRIM4#
main58520-87G21-04i198501-198508
W/RR COOLER,BLUE,BLUE,TRIM1#
main58520-87G25-04i198508-198603
W/*REH,BLUE,BLUE,TRIM8#
main58520-87G25-06i198508-198603
W/*REH,BROWN,BROWN,TRIM4#
main58520-87G27-04i198508-198603
W/*REH,BLUE,BLUE,TRIM8#
main58520-87G27-06i198508-198603
W/*REH,BROWN,BROWN,TRIM4#
main58520-87G28-04i198508-198603
BLUE,BLUE,TRIM8#
main58520-87G28-06i198508-198603
BROWN,BROWN,TRIM4#
main58520-87G29-04i198508-198603
W/RR COOLER,SWIVEL SEAT,BLUE,BLUE,TRIM8#
main58520-87G29-06i198508-198603
W/RR COOLER,SWIVEL SEAT,BROWN,BROWN,TRIM4#
main58520-87G30-04i198508-198603
W/RR COOLER,*REH,BLUE,BLUE,TRIM8#
main58520-87G30-06i198508-198603
W/RR COOLER,*REH,BROWN,BROWN,TRIM4#
main58520-87G37-06i198603-198808
BROWN,BROWN,TRIM4#
main58520-87G38-06i198603-198808
W/*REH,BROWN,BROWN,TRIM4#
main58520-87G39-06i198603-198808
W/RR COOLER,BROWN,BROWN,TRIM4#
main58520-87G41-04i198603-198608
W/RR COOLER,BLUE,BLUE,TRIM8#
main58520-87G41-06i198603-198608
W/RR COOLER,BROWN,BROWN,TRIM4#
main58520-87G42-04i198603-198808
W/RR COOLER,*REH,BLUE,BLUE,TRIM8#
main58520-87G42-06i198603-198808
W/RR COOLER,*REH,BROWN,BROWN,TRIM4#
main58520-87G43-04i198603-198808
W/*REH,BLUE,BLUE,TRIM8#
main58520-87G43-06i198603-198808
W/*REH,BROWN,BROWN,TRIM4#
main58520-87G44-04i198603-198808
W/*REH,BLUE,BLUE,TRIM8#
main58520-87G44-06i198603-198808
W/*REH,BROWN,BROWN,TRIM4#
main58520-87G45-04i198603-198808
BLUE,BLUE,TRIM8#
main58520-87G45-06i198603-198808
BROWN,BROWN,TRIM4#
main58520-87G46-04i198603-198808
W/RR COOLER,SWIVEL SEAT,BLUE,BLUE,TRIM8#
main58520-87G46-06i198603-198808
W/RR COOLER,SWIVEL SEAT,BROWN,BROWN,TRIM4#
main58520-87G47-04i198603-198808
W/RR COOLER,*REH,BLUE,BLUE,TRIM8#
main58520-87G47-06i198603-198808
W/RR COOLER,*REH,BROWN,BROWN,TRIM4#
58524FASTENER, FLOOR MAT, MALE
main90530-25004×2i198211-198808
58541RCARPET, STEP, RH
main58508-28010i198211-198408
main58508-28020-02i198211-198308
WINE,RED/MAROON,TRIM4#
main58508-28020-03i198211-198308
GRAY,GRAY,TRIM1#
main58508-28021-02i198308-198408
WINE,RED/MAROON,TRIM4#
main58508-28021-03i198308-198408
GRAY,GRAY,TRIM1#
58542RCARPET, STEP, LH
main58509-87002i198211-198408
main58509-87004-02i198211-198308
WINE,RED/MAROON,TRIM4#
main58509-87004-03i198211-198308
GRAY,GRAY,TRIM1#
main58509-87008-02i198308-198408
WINE,RED/MAROON,TRIM4#
main58509-87008-03i198308-198408
GRAY,GRAY,TRIM1#
58545BSILENCER, HEADER PANEL
main58545-87001i198211-198808
58570CCARPET ASSY, REAR FLOOR
main58540-28010i198211-198408
W/RR SEAT BELT
main58540-28011-02i198408-198501
W/RR SEAT BELT,WINE,WINE,TRIM4#
main58540-28012-02i198501-198508
W/RR SEAT BELT,WINE,WINE,TRIM4#
main58540-28013-06i198508-198608
BROWN,BROWN,TRIM4#
main58540-28020i198211-198408
main58540-28021-02i198408-198501
WINE,WINE,TRIM4#
main58540-28022-02i198501-198508
WINE,WINE,TRIM4#
main58540-28023-06i198508-198608
BROWN,BROWN,TRIM4#
main58540-28030-02i198211-198308
W/RR SEAT BELT,WINE,RED/MAROON,TRIM4#
main58540-28030-03i198211-198308
W/RR SEAT BELT,GRAY,GRAY,TRIM1#
main58540-28031-02i198308-198408
W/RR SEAT BELT,WINE,RED/MAROON,TRIM4#
main58540-28031-03i198308-198408
W/RR SEAT BELT,GRAY,GRAY,TRIM1#
main58540-28032-02i198408-198501
W/RR SEAT BELT,WINE,WINE,TRIM4#
main58540-28032-04i198408-198501
W/RR SEAT BELT,BLUE,BLUE,TRIM1#
main58540-28033-02i198501-198508
W/RR SEAT BELT,WINE,WINE,TRIM4#
main58540-28033-04i198501-198508
W/RR SEAT BELT,BLUE,BLUE,TRIM1#
main58540-28034-04i198508-198608
BLUE,BLUE,TRIM8#
main58540-28034-06i198508-198608
BROWN,BROWN,TRIM4#
main58540-28040-02i198211-198408
WINE,RED/MAROON,TRIM4#
main58540-28040-03i198211-198408
GRAY,GRAY,TRIM1#
main58540-28042-02i198408-198501
WINE,WINE,TRIM4#
main58540-28042-04i198408-198501
BLUE,BLUE,TRIM1#
main58540-28043-02i198501-198508
WINE,WINE,TRIM4#
main58540-28043-04i198501-198508
BLUE,BLUE,TRIM1#
main58540-28044-04i198508-198608
BLUE,BLUE,TRIM8#
main58540-28044-06i198508-198608
BROWN,BROWN,TRIM4#
main58540-28050i198211-198408
W/RR SEAT BELT
main58540-28060i198211-198408
main58540-28070i198211-198408
main58540-28071-02i198408-198501
WINE,WINE,TRIM4#
main58540-28072-02i198501-198508
WINE,WINE,TRIM4#
main58540-28080-02i198211-198308
WINE,RED/MAROON,TRIM4#
main58540-28080-03i198211-198308
GRAY,GRAY,TRIM1#
main58540-28081-02i198308-198408
WINE,RED/MAROON,TRIM4#
main58540-28081-03i198308-198408
GRAY,GRAY,TRIM1#
main58540-28082-02i198408-198501
WINE,WINE,TRIM4#
main58540-28082-04i198408-198501
BLUE,BLUE,TRIM1#
main58540-28083-02i198501-198508
WINE,WINE,TRIM4#
main58540-28083-04i198501-198508
BLUE,BLUE,TRIM1#
main58540-28130-03i198608-198808
W/SWIVEL SEAT,GRAY,SHADOW GRAY,TRIM1#
main58540-28130-04i198508-198608
W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
main58540-28130-06i198508-198808
W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
main58540-28140-06i198608-198808
BROWN,BROWN,TRIM4#
main58540-28150-03i198701-198808
DENMARK SPEC,GRAY,SHADOW GRAY,TRIM1#
main58540-28150-04i198508-198608
NORWAY SPEC,BLUE,BLUE,TRIM8#
main58540-28150-06i198701-198808
DENMARK SPEC,BROWN,BROWN,TRIM4#
main58540-28160-06i198608-198808
BROWN,BROWN,TRIM4#
main58540-28170-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
main58540-28170-06i198608-198808
BROWN,BROWN,TRIM4#
main58540-28180-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
main58540-28180-06i198608-198808
BROWN,BROWN,TRIM4#
main58540-87040i198211-198408
main58540-87042-02i198211-198308
WINE,RED/MAROON,TRIM4#
main58540-87042-03i198211-198308
GRAY,GRAY,TRIM1#
main58540-87049i198211-198408
main58540-87052i198211-198408
main58540-87053-02i198211-198308
WINE,RED/MAROON,TRIM4#
main58540-87053-03i198211-198308
GRAY,GRAY,TRIM1#
main58540-87054i198211-198408
W/RR SEAT BELT
main58540-87055-02i198211-198308
W/RR SEAT BELT,WINE,RED/MAROON,TRIM4#
main58540-87055-03i198211-198308
W/RR SEAT BELT,GRAY,GRAY,TRIM1#
main58540-87059-02i198308-198408
WINE,RED/MAROON,TRIM4#
main58540-87059-03i198308-198408
GRAY,GRAY,TRIM1#
main58540-87060-02i198308-198408
WINE,RED/MAROON,TRIM4#
main58540-87060-03i198308-198408
GRAY,GRAY,TRIM1#
main58540-87061-02i198308-198408
W/RR SEAT BELT,WINE,RED/MAROON,TRIM4#
main58540-87061-03i198308-198408
W/RR SEAT BELT,GRAY,GRAY,TRIM1#
main58540-87074-02i198408-198501
WINE,WINE,TRIM4#
main58540-87075-02i198408-198501
WINE,WINE,TRIM4#
main58540-87076-02i198408-198501
WINE,WINE,TRIM4#
main58540-87076-04i198408-198501
BLUE,BLUE,TRIM1#
main58540-87077-02i198408-198501
W/RR SEAT BELT,WINE,WINE,TRIM4#
main58540-87078-02i198408-198501
W/RR SEAT BELT,WINE,WINE,TRIM4#
main58540-87078-04i198408-198501
W/RR SEAT BELT,BLUE,BLUE,TRIM1#
main58540-87079-02i198408-198501
WINE,WINE,TRIM4#
main58540-87G01-02i198408-198501
WINE,WINE,TRIM4#
main58540-87G01-04i198408-198501
BLUE,BLUE,TRIM1#
main58540-87G08-06i198508-198608
BROWN,BROWN,TRIM4#
main58540-87G09-04i198508-198608
BLUE,BLUE,TRIM8#
main58540-87G09-06i198508-198608
BROWN,BROWN,TRIM4#
main58540-87G10-04i198508-198608
BLUE,BLUE,TRIM8#
main58540-87G10-06i198508-198608
BROWN,BROWN,TRIM4#
main58540-87G16-02i198501-198508
WINE,WINE,TRIM4#
main58540-87G17-02i198501-198508
WINE,WINE,TRIM4#
main58540-87G18-02i198501-198508
WINE,WINE,TRIM4#
main58540-87G18-04i198501-198508
BLUE,BLUE,TRIM1#
main58540-87G19-02i198501-198508
W/RR SEAT BELT,WINE,WINE,TRIM4#
main58540-87G20-02i198501-198508
W/RR SEAT BELT,WINE,WINE,TRIM4#
main58540-87G20-04i198501-198508
W/RR SEAT BELT,BLUE,BLUE,TRIM1#
main58540-87G21-02i198501-198508
WINE,WINE,TRIM4#
main58540-87G22-02i198501-198508
WINE,WINE,TRIM4#
main58540-87G22-04i198501-198508
BLUE,BLUE,TRIM1#
main58540-87G24-04i198508-198608
W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
main58540-87G24-06i198508-198608
W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
main58540-87G30-06i198608-198808
BROWN,BROWN,TRIM4#
main58540-87G31-04i198608-198808
BLUE,BLUE,TRIM8#
main58540-87G31-06i198608-198808
BROWN,BROWN,TRIM4#
main58540-87G32-04i198608-198808
BLUE,BLUE,TRIM8#
main58540-87G32-06i198608-198808
BROWN,BROWN,TRIM4#
main58540-87G41-04i198608-198808
W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
main58540-87G41-06i198608-198808
W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
58572SET PLATE, REAR FLOOR MAT, REAR
main58574-87001i198211-198808
sub58574-87004
58573SET PLATE, REAR FLOOR MAT SIDE, FRONT RH
main58577-28010i198211-198408
main58577-87001i198211-198408
58574SET PLATE, REAR FLOOR MAT SIDE, FRONT LH
main58578-87001i198211-198408
main58578-87004i198211-198408
58611PLATE, REAR FLOOR MAT SET, SIDE
main67917-28010i198211-198408
main67917-87001i198211-198408
main67918-87001i198211-198408
main67918-87003i198211-198408
58627APAD, CENTER FLOOR SILENCER, REAR
main58627-28010i198308-198608
RH
main58627-87002×2i198211-198308
main58628-28010i198608-198808
LH
58634APLATE, ENGINE SERVICE HOLE MAT, RH
main58634-87001i198308-198808
58644APLATE, ENGINE SERVICE HOLE MAT, LH
main58634-87001×2i198211-198808
9016440059
main90164-40059
9016440060
main90164-40060
9016440061
main90164-40061
9354024010
main93540-24010

21 parts on this diagram · 2 diagrams in section

FLOOR MAT & SILENCER PAD — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
