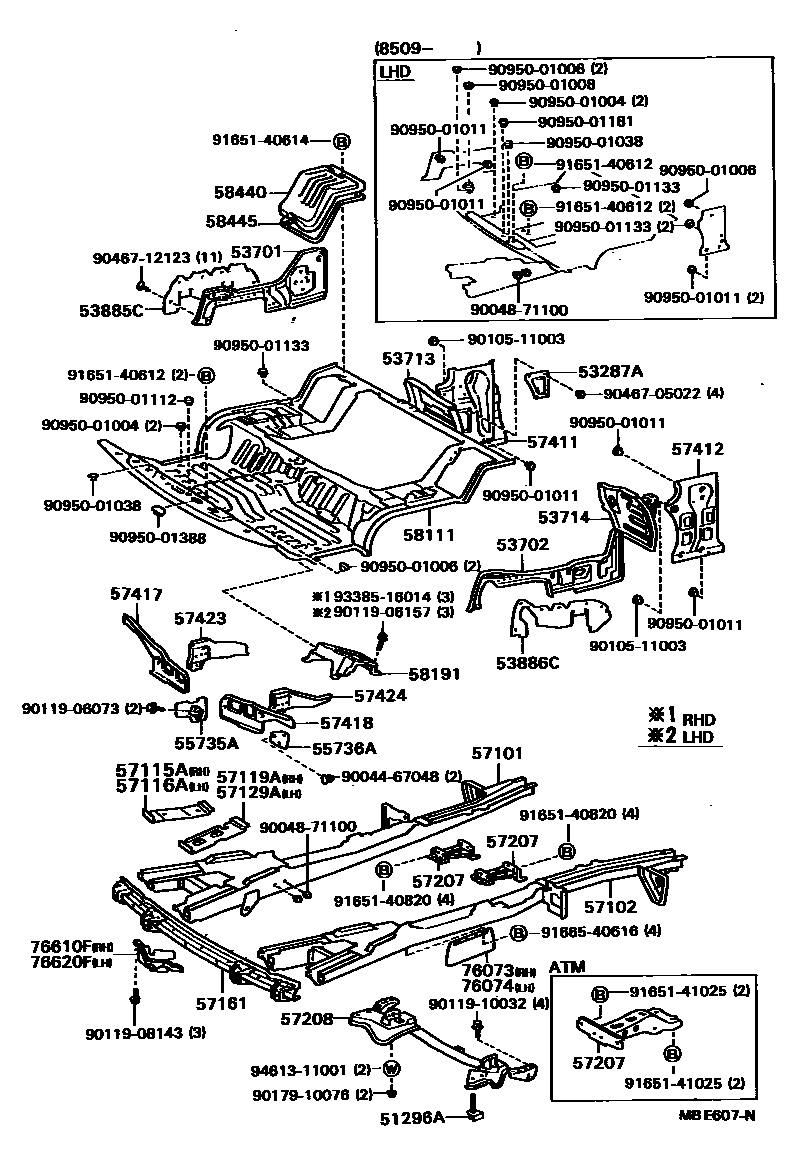

FRONT FLOOR PANEL & FRONT FLOOR MEMBER
51296ABOLT, ENGINE FRONT SUPPORT MEMBER
RH
LH
53287ACOVER, COOLER PIPE HOLE
53702APRON SUB-ASSY, FRONT FENDER, LH
53713APRON, FENDER SIDE, RH
53885CSEAL, FENDER APRON MUDGUARD, RH
53886CSEAL, FENDER APRON MUDGUARD, LH
55735APLATE, WATER GUARD, LH
55736ASEAL, WATER GUARD PLATE
57101MEMBER SUB-ASSY, FRONT SIDE, RH
sub57101-28120
W/SWIVEL SEAT
sub57101-87028
W/SWIVEL SEAT
sub57101-87049
W/SWIVEL SEAT
57102MEMBER SUB-ASSY, FRONT SIDE, LH
sub57102-87028
sub57102-87030
sub57102-87035
W/SWIVEL SEAT
W/SWIVEL SEAT
57208MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
sub51025-87004
sub51025-87005
sub51025-28010
sub51025-28110
sub51025-95D02
57412PLATE, FLOOR SIDE RAIL, LH
sub57046-87003
sub57046-28080
sub57046-28100
sub57046-28080
sub57046-28100
58111PAN, FRONT FLOOR
sub58111-28090
W/FOOTREST
W/COOL BOX
W/COOL BOX,FOOTREST
sub58111-87036
sub58111-87036
W/COOL BOX
sub58111-87031
sub58111-87030
sub58111-87036
sub58111-87036
sub58111-87054
sub58111-87036
58191FOOTREST, FRONT FLOOR
58440COVER ASSY, BATTERY SERVICE HOLE
58445PACKING, BATTERY SERVICE HOLE COVER
76073PROTECTOR SUB-ASSY, STEERING MAIN SHAFT, RH
76074PROTECTOR SUB-ASSY, STEERING MAIN SHAFT, LH
76610FPROTECTOR ASSY, STEERING MAIN SHAFT, RH
76620FPROTECTOR ASSY, STEERING MAIN SHAFT, LH
9004467048
main90044-67048
9004871100
main90048-71100
9010511003
main90105-11003
9011906073
main90119-06073
9011906157
main90119-06157
9011908143
main90119-08143
9011910032
main90119-10032
9017910076
main90179-10076
9046705022
main90467-05022
9046712123
main90467-12123
9095001004
main90950-01004
9095001006
main90950-01006
9095001008
main90950-01008
9095001011
main90950-01011
9095001038
main90950-01038
9095001112
main90950-01112
9095001133
main90950-01133
9095001181
main90950-01181
9095001388
main90950-01388
9165140612
main91651-40612
9165140614
main91651-40614
9165140820
main91651-40820
9165141025
main91651-41025
9166540616
main91665-40616
9338516014
main93385-16014
9461311001
main94613-11001
59 parts on this diagram · 3 diagrams in section
