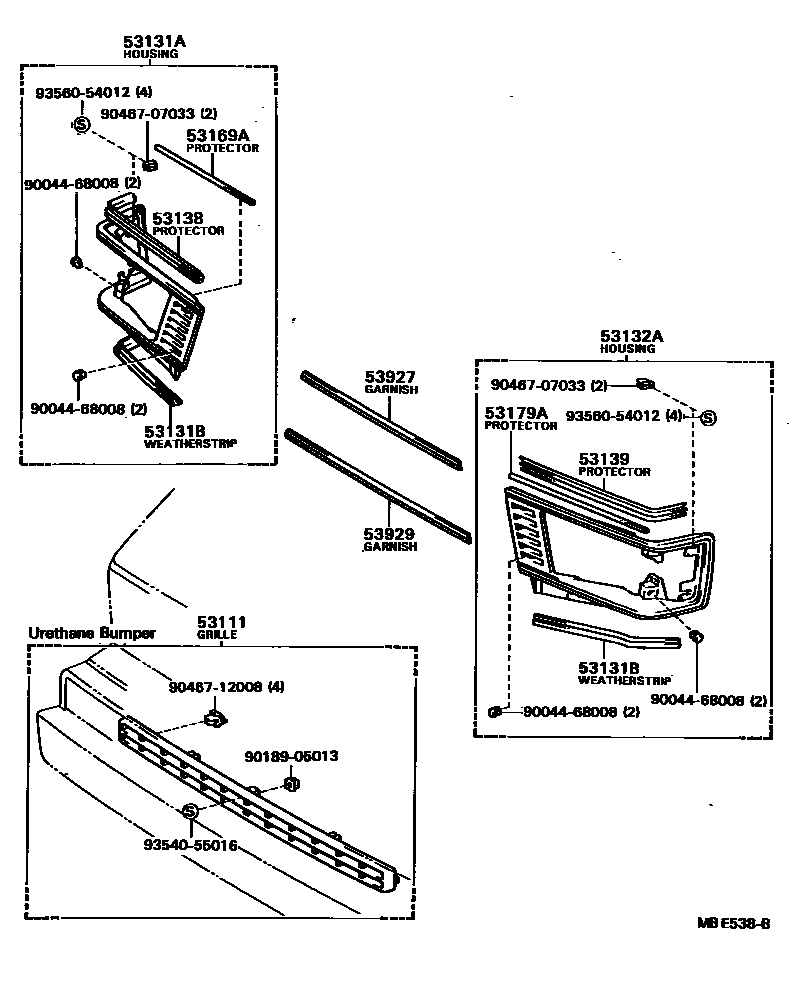

RADIATOR GRILLE

0001 1 0003 1

53111GRILLE, RADIATOR

main53111-28020-03iCR21,YR2#,31..ARL198508-198808

GRAY/BLACK

sub53111-28030

main53111-28030iCR21,YR2#..DLX..ARL198508-198808

main53111-29195iYR2#..GL..GEN198211-198508

*UB

53131ADOOR, HEADLAMP, RH

main53031-28020iYR22..DLX..ARL198608-198808

main53031-29205iCR21,YR2#198211-198808

sub53031-29165

main53031-87028iYR22..GL..ARL;CR21,YR21,31..ARL198508-198808

53131BWEATHERSTRIP, HEADLAMP ORNAMENT

main53147-87001iCR21,YR2#198211-198808

main53147-87004iCR21,YR2#,31..ARL198508-198808

53132ADOOR, HEADLAMP, LH

main53032-28020iYR22..DLX..ARL198608-198808

main53032-29205iYR2#,31..EUR,GEN198211-198808

sub53032-29165

main53032-87027iYR22..GL..ARL;CR21,YR21,31..ARL198508-198808

53138PROTECTOR, HEADLAMP DOOR, RH

main53139-87004iCR21,YR20198211-198308

main53139-87005iCR21,YR2#198308-198808

main53145-87003iCR21,YR2#,31..ARL198508-198808

53139PROTECTOR, HEADLAMP DOOR, LH

main53139-87004iCR21,YR20198211-198308

main53139-87005iYR2#,31..EUR,GEN198308-198808

main53146-87005iCR21,YR2#,31..ARL198508-198808

53169APROTECTOR, HEADLAMP DOOR, NO.2 RH

main53169-87002iYR2#,31..EUR,GEN198211-198808

sub53169-87003

53179APROTECTOR, HEADLAMP DOOR, NO.2 LH

main53169-87002iCR21,YR2#198211-198808

sub53169-87003

53927GARNISH, FRONT PANEL, CENTER UPPER

main53927-87003iCR21,YR2#198211-198808

53929GARNISH, FRONT PANEL, CENTER LOWER

main53929-87002iCR21,YR2#198211-198808

9004468008

main90044-68008

9018905013

main90189-05013

9046707033

main90467-07033

9046712008

main90467-12008

9354055016

main93540-55016

9356054012

main93560-54012

16 parts on this diagram · 2 diagrams in section
