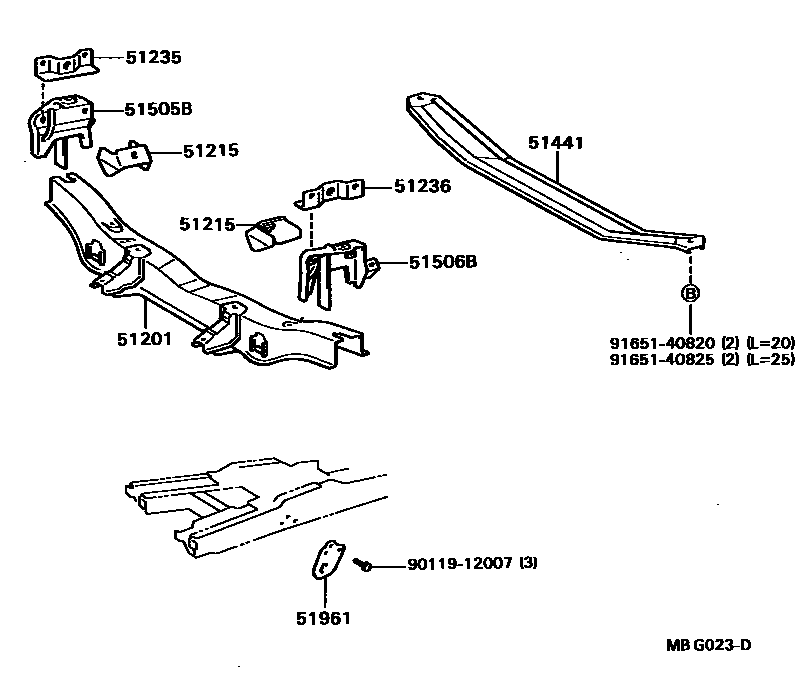

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-95D00iYR31..ARL198601-198808

FR

sub51201-28060

main51201-95D01iYR31..EUR198608-198808

main51203-95D00iYR31198601-198708

RR

sub51203-95D01

main51203-95D01iYR31198708-198808

RR

main51221-28900iCR21,YR2#198211-198508

main51221-28901iYR2#..LHD198508-198808

main51221-28902iYR2#..LHD198508-198808

W/PS

main51221-28903iCR21,YR2#..RHD..MRF198508-198808

main51221-28904iCR21,YR2#..RHD198508-198808

W/PS

51215REINFORCEMENT, FRONT SUSPENSION CROSSMEMBER

main51215-87003iCR21,YR2#198211-198508

RH

sub51215-87001

main51215-87005iCR21,YR2#198211-198508

LH

sub51215-87001

main51215-87007iCR21,YR2#198508-198808

RH

sub51215-28010

main51218-87002iCR21,YR2#198508-198808

LH

sub51218-28020

51235BRACKET, FRONT SUSPENSION CROSSMEMBER, RH

main51225-87003iCR21,YR2#198211-198808

51236BRACKET, FRONT SUSPENSION CROSSMEMBER, LH

main51226-87003iCR21,YR2#198211-198808

51441COVER, ENGINE UNDER, NO.1

main51441-87001iCR21,YR2#198211-198406

STEEL

sub51441-87002

main51441-87002iCR21,YR2#198406-198808

PLASTIC

main51441-95D00iYR31198601-198808

51505BSUPPORT SUB-ASSY, UPPER CONTROL ARM, RH

main51505-28900iCR21,YR2#198211-198508

main51505-28901iCR21,YR2#198508-198808

51506BSUPPORT SUB-ASSY, UPPER CONTROL ARM, LH

main51506-28900iCR21,YR2#198211-198508

main51506-28901iCR21,YR2#198508-198808

51961HOOK, NO.1

main51970-87001iCR21,YR2#198508-198808

RH

main51970-95D00iYR31198601-198808

RH

main51980-87001iYR2#198508-198808

LH

main51980-87002iCR21198508-198808

LH

main51980-95D00iYR31198601-198808

LH

9011912007

main90119-12007

9165140820

main91651-40820

9165140825

main91651-40825

11 parts on this diagram · 2 diagrams in section
