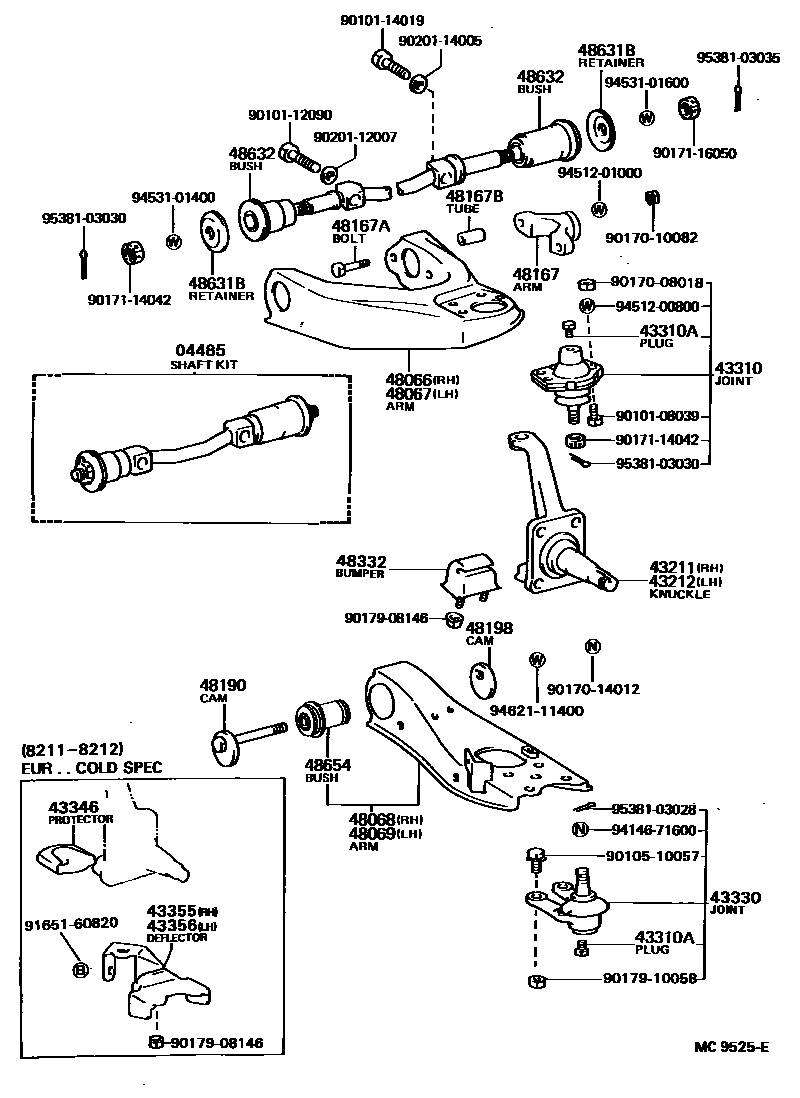

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

04485SHAFT KIT, UPPER SUSPENSION ARM

main04485-28020iCR21,YR2#198211-198808

43211KNUCKLE, STEERING, RH

main43201-28010iYR31198601-198808

main43211-28020iCR21,YR2#198211-198508

sub43211-28021

main43211-28021iCR21,YR2#198508-198808

43212KNUCKLE, STEERING, LH

main43202-28010iYR31198601-198808

main43211-28020iCR21,YR2#198211-198508

sub43211-28021

main43211-28021iCR21,YR2#198508-198808

43310JOINT ASSY, UPPER BALL

main43350-29036iCR21,YR2#198211-198808

RH

sub43350-29076

main43360-29056iCR21,YR2#198211-198808

LH

sub43350-29076

43310APLUG (FOR BALL JOINT)

main90345-06014iCR21,YR2#198211-198508

UPR & LWR

main90345-06014iCR21,YR2#,31198508-198808

UPR

43330JOINT ASSY, LOWER BALL, FRONT

main43330-29115iCR21,YR2#198211-198508

RH

sub43330-29175

main43330-29165iYR31198601-198808

RH

sub43330-29166

main43330-29175iCR21,YR2#198508-198808

sub43330-29545

main43340-29095iCR21,YR2#198211-198508

LH

sub43330-29175

main43340-29115iYR31198601-198808

LH

sub43340-29116

43346PROTECTOR, LOWER BALL JOINT DUST COVER

main43346-28010iYR20..EUR198211-198212

COLD SPEC

sub43346-28011

43355DEFLECTOR, LOWER ARM ICE, RH

main43355-28010iYR20..EUR198211-198212

COLD SPEC

sub43355-28011

sub91615-60825

43356DEFLECTOR, LOWER ARM ICE, LH

main43356-28010iYR20..EUR198211-198212

COLD SPEC

sub43356-28011

sub91615-60825

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-28030iYR31198601-198808

sub48066-28050

main48601-28010iCR21,YR2#198211-198508

sub48601-28011

main48610-28011iCR21,YR2#198508-198608

sub48610-28012

main48610-28012iCR21,YR2#198608-198808

sub48610-28013

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-28030iYR31198601-198808

sub48067-28050

main48602-28010iCR21,YR2#198211-198508

sub48602-28011

main48630-28011iCR21,YR2#198508-198608

sub48630-28012

main48630-28012iCR21,YR2#198608-198808

sub48630-28013

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-27050iCR21,YR2#198508-198808

sub48068-28040

main48068-28020iCR21,YR2#198211-198508

main48068-28030iYR31198601-198712

main48068-28031iYR31198712-198808

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-27050iCR21,YR2#198508-198808

sub48069-28040

main48069-28020iCR21,YR2#198211-198508

main48069-28030iYR31198601-198712

main48069-28031iYR31198712-198808

48167ARM, TORQUE

main48106-28010iCR21,YR2#198211-198808

main48106-28020iYR31198601-198808

48167ABOLT(FOR TORQUE ARM SETTING)

main91121-71085iCR21,YR2#198211-198808

48167BTUBE(FOR TORQUE ARM SETTING BOLT)

main90440-17029iCR21,YR2#198211-198808

48190CAM ASSY, CAMBER ADJUST

main48190-20010iCR21,YR2#198211-198509

sub48190-27010

main48190-27010iCR21,YR2#,31198509-198808

sub48190-27020

sub90179-14046

48198CAM, CAMBER ADJUST, NO.2

main48198-20010iCR21,YR2#198211-198509

sub48198-27010

main48198-27010iCR21,YR2#,31198509-198808

48332BUMPER, FRONT SPRING, NO.2

main48331-27030iCR21,YR21198504-198508

main48331-27050iCR21,YR2#198508-198808

sub48331-27051

main48331-28020iYR31198601-198808

main48331-29045iCR21,YR2#198211-198504

sub48331-27030

48631BRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM)

main90948-02048iCR21,YR2#198211-198808

RR

main90948-02049iCR21,YR2#198211-198808

FR

48632BUSH, UPPER ARM

main48632-27010iCR21,YR2#198508-198808

FR

main48632-30040iCR21,YR2#198211-198508

FR

main48635-28010iCR21,YR2#198211-198808

RR

48654BUSH, LOWER ARM

main48061-27010iCR21,YR2#198509-198611

sub48061-27011

main48061-27011iCR21,YR2#198611-198808

main48061-28010iCR21,YR2#198211-198509

sub48061-28020

main48061-28020iYR31198601-198611

sub48061-28021

main48061-28021iYR31198611-198808

9010108039

main90101-08039

9010112090

main90101-12090

9010114019

main90101-14019

9010510057

main90105-10057

9017008018

main90170-08018

9017010082

main90170-10082

9017014012

main90170-14012

9017114042

main90171-14042

9017116050

main90171-16050

9017908146

main90179-08146

9017910058

main90179-10058

9020112007

main90201-12007

9020114005

main90201-14005

9165160820

main91651-60820

9414671600

main94146-71600

9451200800

main94512-00800

9451201000

main94512-01000

9453101400

main94531-01400

9453101600

main94531-01600

9462111400

main94621-11400

9538103028

main95381-03028

9538103030

main95381-03030

9538103035

main95381-03035

45 parts on this diagram · 3 diagrams in section
