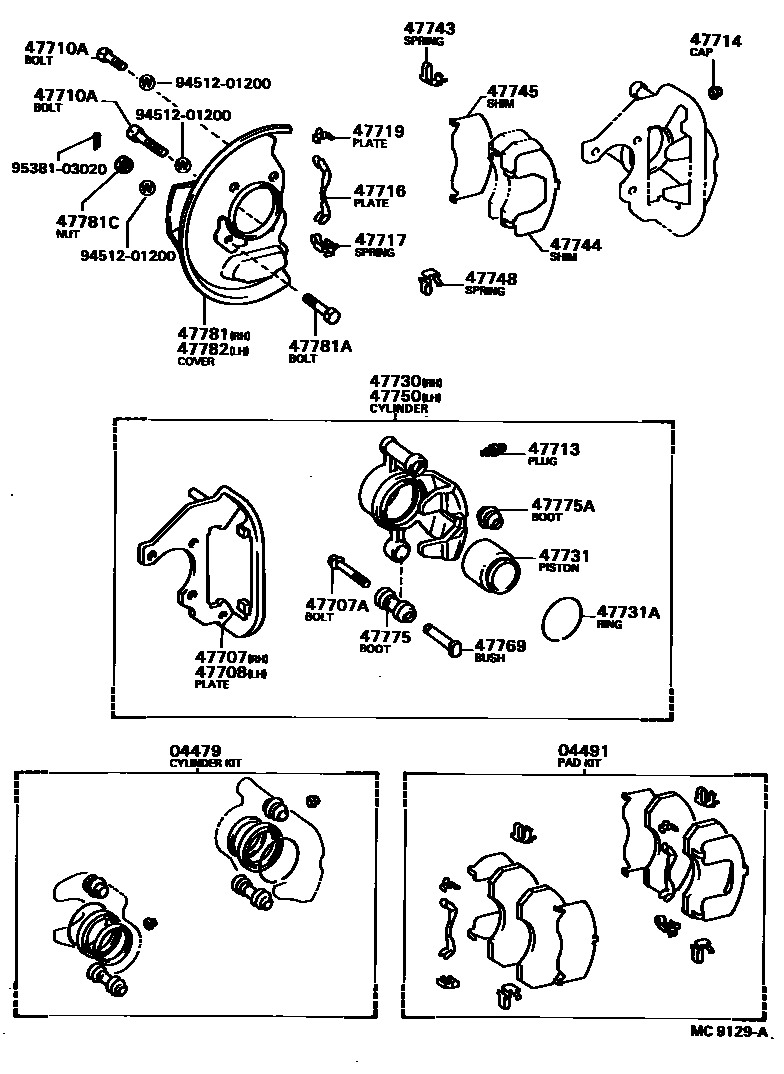

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1 0004 1 0005 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-14070iCR21,YR2#198211-198508

main04479-28010iCR21,YR2#..ARL,GEN198508-198808

main04479-28020iYR21..EUR198508-198605

sub04479-28021

main04479-28021iYR2#..EUR198605-198808

main04479-28031iYR31198605-198808

main04479-28040iYR31198601-198605

sub04479-28031

04491PAD KIT, DISC BRAKE, FRONT

main04491-28020iYR20198211-198508

sub04491-28022

main04491-28030iCR21,YR2#..ARL,EUR198212-198508

sub04465-28010

main04491-28070iCR21,YR2#..ARL,GEN198508-198608

sub04465-28010

main04491-28071iCR21,YR2#..ARL,GEN198608-198808

sub04465-28010

main04491-28080iYR21..EUR198508-198808

sub04465-28310

main04491-28081iYR2#..EUR198608-198808

sub04465-28230

main04491-28120iYR31..EUR198608-198808

sub04465-28230

main04491-28130iYR22..5F..EUR198706-198808

SWEDEN SPEC

sub04465-28120

47707PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH

main47707-27030iYR21..GEN198608-198808

main47707-28010iCR21,YR2#..GEN198211-198508

sub47707-27040

main47707-28020iCR21,YR2#..ARL,EUR198211-198508

sub47707-28060

main47707-28030iYR21..GEN198508-198608

sub47707-27030

main47707-28040iYR31198601-198808

main47707-28050iYR2#..EUR198508-198808

main47707-28060iCR21,YR2#..ARL198508-198808

47707ABOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)

main90119-08199iYR20198211-198212

L=67.5

main90119-08384iCR21,YR2#..ARL,GEN198212-198808

L=65.0

main90119-10385iYR31;YR2#..EUR198508-198808

47708PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH

main47708-27030iYR21..GEN198608-198808

main47708-28010iCR21,YR2#..GEN198211-198508

sub47708-27040

main47708-28020iCR21,YR2#..ARL,EUR198211-198508

sub47708-28060

main47708-28030iYR21..GEN198508-198608

sub47708-27030

main47708-28040iYR31198601-198808

main47708-28050iYR2#..EUR198508-198808

main47708-28060iCR21,YR2#..ARL198508-198808

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12010iCR21,YR2#198211-198808

*12-1.25PX50-26,L=50

main90101-12030iCR21,YR2#198211-198808

*12-1.25PX31-20,L=30

main90101-12123iYR31198601-198808

*12-1.25PX28.1-20

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iCR21,YR2#,31..ARL,EUR198508-198808

04

main47547-20010iCR21,YR2#198211-198508

main47547-27030iYR21..GEN198608-198610

main47547-27040iYR21..GEN198610-198808

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iCR21,YR2#,31198211-198808

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-28010iCR21,YR2#198211-198508

main47716-28020iCR21,YR2#,31198508-198808

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-14050iCR21,YR2#,31198211-198701

RH

main47718-14090iYR21..GEN198211-198702

LH

47719PLATE, FRONT DISC BRAKE PAD GUIDE

main47736-14030iCR21,YR2#,31198211-198808

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-27040iYR21..GEN198608-198808

main47730-28010iYR20..GEN198211-198212

sub47730-28011

main47730-28011iCR21,YR20..GEN198212-198308

sub47730-28012

main47730-28012iCR21,YR2#..GEN198308-198508

main47730-28020iYR20..ARL,EUR198211-198212

sub47730-28021

main47730-28021iCR21,YR20..ARL,EUR198212-198308

sub47730-28030

main47730-28030iCR21,YR2#..ARL,EUR198308-198508

main47730-28040iYR21..GEN198508-198608

main47730-28050iCR21,YR2#..ARL198508-198608

main47730-28060iYR31..ARL198601-198808

main47730-28070iYR31..EUR198608-198808

main47730-28080iYR2#..EUR198508-198808

main47730-28100iCR21,YR2#..ARL198608-198808

47731PISTON, FRONT DISC BRAKE

main47731-14080iYR2#..EUR198508-198808

main47731-14090iCR21,YR2#198211-198508

main47731-28020iCR21,YR2#..ARL,GEN198508-198808

main47731-28030iYR31198601-198808

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-49001iYR31;YR2#..EUR198508-198808

main90522-67001iCR21,YR2#..ARL,GEN198508-198808

main90522-69002iCR21,YR2#198211-198508

47743SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)

main47743-14040iCR21,YR2#,31198211-198808

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-28010iYR20198211-198508

sub47744-28020

main47744-28020iCR21,YR2#..ARL,EUR198212-198808

main47744-28040iYR31;YR2#..EUR198508-198808

main47744-28050iYR31198709-198808

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47744-28030iYR31..EUR198608-198808

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-14050iCR21,YR2#,31198211-198808

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-27040iYR21..GEN198608-198808

main47750-28010iYR20..GEN198211-198212

sub47750-28011

main47750-28011iCR21,YR20..GEN198212-198308

sub47750-28012

main47750-28012iCR21,YR2#..GEN198308-198508

main47750-28020iYR20..ARL,EUR198211-198212

sub47750-28021

main47750-28021iCR21,YR20..ARL,EUR198212-198308

sub47750-28030

main47750-28030iCR21,YR2#..ARL,EUR198308-198508

main47750-28040iYR21..GEN198508-198608

main47750-28050iCR21,YR2#..ARL198508-198608

main47750-28060iYR31198601-198808

main47750-28070iYR31..EUR198608-198808

main47750-28080iYR2#..EUR198508-198808

main47750-28100iCR21,YR2#..ARL198608-198808

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-14010iYR20198211-198212

L=51.5

sub47769-28H00

sub47769-28H01

main47769-28010iCR21,YR2#198212-198808

L=50.0

main47769-28020iYR31;YR2#..EUR198508-198808

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-14010iCR21,YR2#198211-198508

main47775-17010iCR21,YR2#..ARL,GEN198508-198808

main47775-28010iYR21..EUR198508-198604

sub47775-28020

main47775-28020iYR2#..EUR198601-198808

47775ABOOT, PIN

main47776-14010iCR21,YR2#,31198211-198808

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-28030iCR21,YR2#..GEN198211-198508

main47781-28040iCR21,YR2#..ARL,EUR198211-198508

main47781-28050iYR21..GEN198508-198808

main47781-28060iCR21,YR2#..ARL198508-198808

main47781-28070iYR2#..EUR198508-198808

main47781-28080iYR31198601-198808

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90102-12001iCR21,YR2#198211-198808

47781CNUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main94145-71200iCR21,YR2#198211-198808

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-28030iCR21,YR2#..GEN198211-198508

main47782-28040iCR21,YR2#..ARL,EUR198211-198508

main47782-28050iYR21..GEN198508-198808

main47782-28060iCR21,YR2#..ARL198508-198808

main47782-28070iYR2#..EUR198508-198808

main47782-28080iYR31198601-198808

9451201200

main94512-01200

9538103020

main95381-03020
