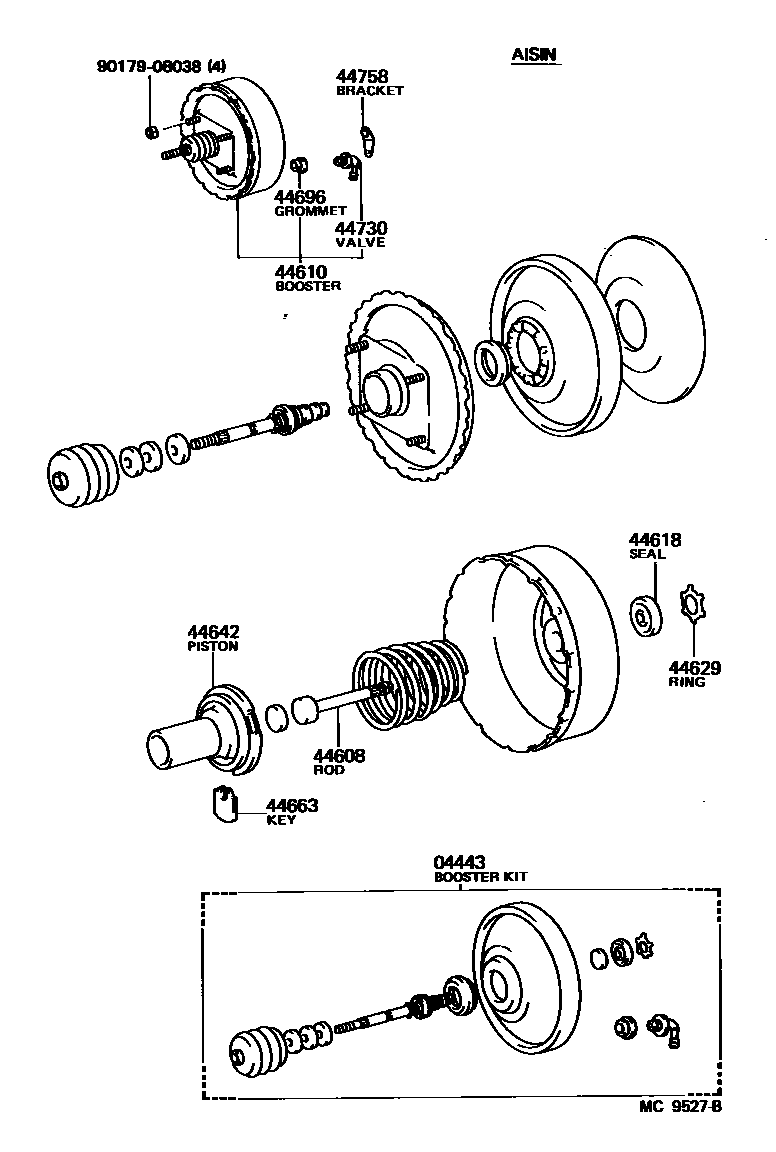

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

04443BOOSTER KIT, BRAKE

main04443-28070iYR2#..ARL,GEN¥11,400198211-198408

sub04443-28071¥11,500

main04443-28071iYR21..ARL,GEN¥11,500198408-198508

main04443-28090iCR21..ARL,GEN¥11,400198305-198408

sub04443-28091

main04443-28091iCR21198408-198508

main04443-28120iYR20..EUR¥14,200198211-198408

sub04443-28121¥12,700

main04443-28121iYR21..EUR¥12,700198408-198508

main04443-28130iCR21..EUR198305-198408

main04443-28200iYR22,31..ARL¥16,700198508-198808

JKC

main04443-28210iYR21..RHD..EUR¥16,300198508-198808

JKC

main04443-28230iYR21..RHD..EUR¥16,300198508-198608

AISIN

main04443-28240iYR2#,31..ARL¥16,500198508-198808

AISIN

main04443-28250iCR21¥15,400198508-198808

AISIN

main04443-28260iCR21¥15,400198508-198808

JKC

main04443-28270iYR21,31..LHD..EUR¥16,800198608-198808

JKC

main04443-28280iYR21..RHD..EUR¥13,900198608-198808

AISIN

main04443-28290iYR21..EUR¥16,700198611-198808

AISIN

main04443-28300iYR21..EUR¥16,800198611-198808

JKC

main04443-28310iYR21..ARL,GEN¥16,700198611-198808

AISIN

main04443-28320iYR21..ARL,GEN¥16,800198611-198808

JKC

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iCR21,YR21..ARL,GEN¥2,660198408-198508

main44606-20800iCR21,YR2#,31¥1,260198508-198808

AISIN

main44606-32010iCR21,YR2#..ARL,GEN198211-198408

main44608-17090iCR21,YR2#,31¥2,010198709-198808

JKC

main44608-20810iCR21,YR2#,31¥2,010198508-198709

JKC

main44608-32020iCR21,YR2#..EUR¥2,670198211-198508

44610BOOSTER ASSY, BRAKE

main44610-28140iYR2#..RHD..(ARL,GEN)¥46,900198211-198408

sub44610-28141¥46,800

main44610-28141iYR21..RHD..(ARL,GEN)¥46,800198408-198508

main44610-28160iCR21..ARL,GEN¥45,900198305-198408

sub44610-28161¥45,900

main44610-28161iCR21¥45,900198408-198508

main44610-28190iYR20..RHD..EUR¥46,900198211-198408

sub44610-28191

main44610-28191iYR21..RHD..EUR198408-198508

main44610-28200iCR21..RHD..EUR198305-198408

main44610-28210iYR20..LHD..EUR¥46,900198211-198408

sub44610-28211¥46,800

main44610-28211iYR21..LHD..EUR¥46,800198408-198508

main44610-28220iCR21..LHD198305-198408

main44610-28230iYR2#..LHD..GEN¥42,200198211-198408

sub44610-28231¥42,100

main44610-28231iYR21..LHD..GEN¥42,100198408-198508

main44610-28300iYR21..GEN¥69,500198508-198602

main44610-28350iYR21..RHD..EUR¥69,700198508-198608

main44610-28360iYR21..LHD..EUR¥69,700198508-198608

main44610-28380iCR21¥63,200198508-198808

sub44610-28650¥63,000

main44610-28400iYR2#,31..ARL¥69,400198508-198808

main44610-28460iYR21..GEN¥69,900198602-198611

sub44610-28300¥69,500

main44610-28470iYR22,31..EUR198608-198808

AISIN

sub44610-28720¥70,300

main44610-28480iYR2#,31..LHD..EUR¥70,000198608-198808

JKC

main44610-28490iYR21..RHD..EUR198608-198611

main44610-28520iYR21..GEN198611-198808

main44610-28530iYR21..EUR198611-198808

sub44610-28700¥69,200

main44610-28560iYR21..LHD..EUR198611-198808

main44610-28570iYR21..ARL198611-198808

sub44610-28670¥68,600

44618SEAL, BOOSTER BODY

main44621-14030iCR21,YR2#,31¥400198508-198808

main44621-28120iCR21,YR2#..ARL,GEN¥590198211-198508

44629RING, CIRCULAR INTERNAL

main44628-28120iCR21,YR2#..ARL,GEN¥390198211-198508

main44628-60010iCR21,YR2#,31¥440198508-198808

44642PISTON, BRAKE BOOSTER

main44642-20800iCR21,YR2#,31¥2,740198508-198808

main44642-32010iCR21,YR2#..ARL,GEN¥6,100198211-198508

44663KEY, VALVE STOPPER

main44635-20800iCR21,YR2#,31¥230198508-198808

main44635-28120iCR21,YR2#..ARL,GEN¥370198211-198508

44696GROMMET, CHECK VALVE

main90480-24015iYR22,31..EUR¥130198705-198808

main90480-24439iYR2#,31..RHD¥390198508-198705

AISIN

main90480-24439iYR2#..ARL,GEN¥390198211-198508

main90480-24517iYR22,31..ARL¥580198508-198705

JKC

sub90480-24015¥130

main90480-24517iCR21,YR2#..EUR¥580198211-198508

sub90480-24015¥130

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-14050iYR21..LHD¥1,380198508-198705

AISIN

main44730-14060iYR21,31..ARL¥2,190198508-198705

JKC

sub44730-28010¥1,360

sub90480-24015¥130

main44730-20060iYR2#..ARL,GEN¥2,920198211-198508

main44730-22090iYR2#..EUR¥2,300198211-198508

main44730-24020iYR21¥2,190198611-198808

main44730-28010iYR22,31..EUR¥1,360198705-198808

main44730-60040iCR21¥5,500198305-198808

44758BRACKET, VACUUM CHECK VALVE

main44758-28020iYR2#..LHD¥200198211-198508

main44758-28050iYR2#..RHD¥190198211-198508

main44758-28060iYR22,31..ARL¥180198508-198808

main44758-28070iYR21..LHD¥190198508-198611

main44758-28080iYR21¥990198611-198808

9017908038

main90179-08038¥130

11 parts on this diagram · 8 diagrams in section
