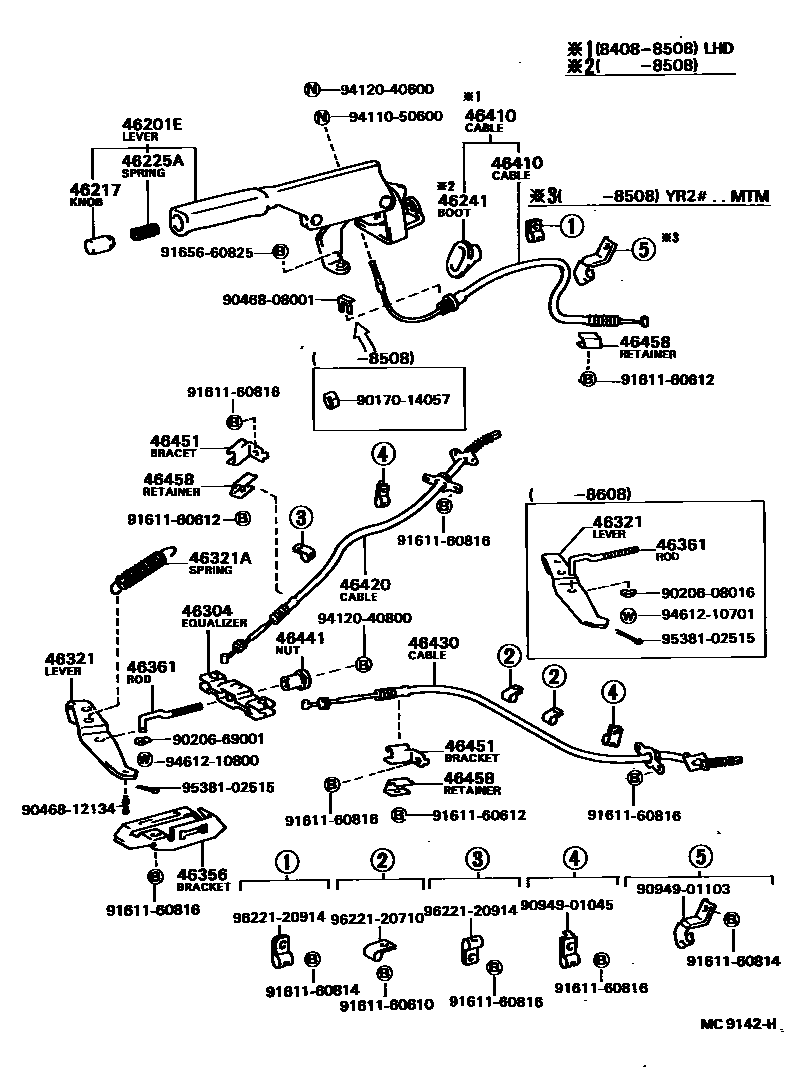

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-28020-02iCR21,YR21..DLX198211-198508

WINE,WINE,TRIM4#

sub46201-28020

main46201-28021-05iYR22,31..DLX..EUR198508-198802

BEIGE,BEIGE,TRIM4#

sub46201-28022

main46201-28022-03iYR22,31..DLX..EUR198802-198808

GRAY,SHADOW GRAY,TRIM1#

sub46201-28022

main46201-28022-04iCR21,YR21..DLX198802-198808

BLUE,BLUE,TRIM8#

sub46201-28022

main46201-28022-05iCR21,YR21..DLX198802-198808

BEIGE,BEIGE,TRIM4#

sub46201-28022

main46201-28030-02iYR21..RHD..GL198408-198508

WINE,WINE,TRIM4#

sub46201-28030

main46201-28030-03iYR2#..RHD..GL198211-198408

GRAY,GRAY,TRIM1#

sub46201-28030

main46201-28030-04iYR21..RHD..GL198408-198508

BLUE,BLUE,TRIM1#

sub46201-28030

main46201-28030-05iYR2#..RHD..GL198211-198408

BEIGE,BEIGE,TRIM4#

sub46201-28030

main46201-28031-04iYR2#,31..GL..ARL198508-198802

BLUE,BLUE,TRIM8#

sub46201-28032

main46201-28031-05iYR2#,31..GL..ARL198508-198802

BEIGE,BEIGE,TRIM4#

sub46201-28032

main46201-28032-04iYR2#,31..GL..ARL198802-198808

BLUE,BLUE,TRIM8#

sub46201-28032

main46201-28032-05iYR2#,31..GL..ARL198802-198808

BEIGE,BEIGE,TRIM4#

sub46201-28032

main46201-28040-02iYR21..LHD..GL198408-198508

WINE,WINE,TRIM4#

sub46201-28040

main46201-28040-03iCR21,YR2#..LHD..GL198211-198408

GRAY,GRAY,TRIM1#

sub46201-28040

main46201-28040-04iYR21..LHD..GL198408-198508

BLUE,BLUE,TRIM1#

sub46201-28040

main46201-28040-05iCR21,YR2#..LHD..GL198211-198408

BEIGE,BEIGE,TRIM4#

sub46201-28040

main46201-28041-03iYR2#,31..LHD..GL198608-198802

GRAY,SHADOW GRAY,TRIM1#

sub46201-28042

main46201-28041-04iYR21..LHD..GL198508-198608

BLUE,BLUE,TRIM8#

sub46201-28042

main46201-28041-05iYR2#,31..LHD..GL198508-198802

BEIGE,BEIGE,TRIM4#

sub46201-28042

main46201-28042-03iYR2#,31..LHD..GL198802-198808

GRAY,SHADOW GRAY,TRIM1#

sub46201-28042

main46201-28042-04iYR2#,31..LHD..GL198802-198808

BLUE,BLUE,TRIM8#

sub46201-28042

main46201-28042-05iYR2#,31..LHD..GL198802-198808

BEIGE,BEIGE,TRIM4#

sub46201-28042

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-10020-02iCR21,YR2#..DLX198211-198504

WINE,RED/MAROON,TRIM4#

sub46217-10020

sub46217-20020

main46217-10020-23iCR21,YR2#..GL198211-198408

GRAY,GRAY,TRIM1#

sub46217-10020

sub46217-20020

main46217-10020-24iYR21..GL198408-198504

BLUE,BLUE,TRIM1#

sub46217-10020

sub46217-20020

main46217-10020-25iCR21,YR2#..GL198211-198408

BEIGE,BEIGE,TRIM4#

sub46217-10020

sub46217-20020

main46217-12020-03iYR2#,31..LHD..GL198802-198808

GRAY,SHADOW GRAY,TRIM1#

sub46217-12020

sub46217-16030

main46217-12020-04iYR2#,31..RHD..GL198802-198808

BLUE,DEEP BLUE,TRIM8#

sub46217-12020

sub46217-16030

main46217-12020-15iCR21,YR2#,31198802-198808

GRAY,BEIGE,TRIM1#

sub46217-12020

sub46217-16030

main46217-20020-03iYR2#,31..LHD..GL198608-198802

GRAY,SHADOW GRAY,TRIM1#

sub46217-20020

main46217-20020-05iCR21,YR2#,31198508-198802

BEIGE,BEIGE,TRIM4#

sub46217-20020

main46217-20020-24iYR2#,31..GL198508-198802

BLUE,BLUE,TRIM8#

sub46217-20020

main46217-20020-32iCR21,YR21198504-198508

WINE,WINE,TRIM4#

sub46217-20020

main46217-20020-34iYR21..GL198504-198508

BLUE,BLUE,TRIM1#

sub46217-20020

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iCR21,YR2#,31198504-198808

main90501-10745iCR21,YR2#198211-198504

46241BOOT, PARKING BRAKE LEVER

main46241-28010iCR21,YR21..RHD198211-198508

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-22020iCR21,YR2#,31198211-198808

46321LEVER, PARKING BRAKE INTERMEDIATE

main46321-28020iCR21,YR20198211-198308

main46321-28040iCR21,YR2#,31198308-198608

main46321-28041iCR21,YR2#,31198608-198701

sub46321-28042

main46321-28042iCR21,YR2#,31198701-198808

46321ASPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90506-10027iCR21,YR2#,31198211-198701

main90506-11006iCR21,YR2#,31198701-198808

46356BRACKET, EQUALIZER SUPPORT

main46356-28020iCR21,YR20198211-198308

main46356-28030iCR21,YR2#,31198308-198808

46361ROD, PARKING BRAKE PULL

main46361-28020iCR21,YR2#,31198211-198608

main46361-28030iCR21,YR2#,31198608-198705

sub46361-28031

main46361-28031iCR21,YR2#,31198705-198808

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-28050iYR2#..RHD198211-198508

main46410-28051iYR2#,31..RHD198508-198808

main46410-28060iCR21..RHD198305-198508

main46410-28061iCR21198508-198808

main46410-28070iYR20..LHD198211-198308

sub46410-28071

main46410-28071iYR2#..LHD198308-198408

main46410-28072iYR21..LHD198408-198508

main46410-28073iYR2#,31..LHD198508-198808

main46410-28080iCR21..LHD198305-198408

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-28080iCR21,YR2#..GEN198211-198508

main46420-28081iYR21..GEN198508-198808

main46420-28100iCR21,YR20..ARL,EUR198211-198308

sub46420-28110

main46420-28110iCR21,YR2#..ARL,EUR198308-198508

main46420-28111iCR21,YR2#..ARL,EUR198508-198808

main46420-28130iYR31198601-198808

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-28080iCR21,YR2#..GEN198211-198508

main46430-28081iYR21..GEN198508-198808

main46430-28100iCR21,YR20..ARL,EUR198211-198308

sub46430-28110

main46430-28110iCR21,YR2#..ARL,EUR198308-198508

main46430-28111iCR21,YR2#..ARL,EUR198508-198808

main46430-28130iYR31198601-198608

main46430-28131iYR31198608-198808

sub46430-28132

46441NUT, WIRE ADJUSTING, NO.1

main46441-22010iCR21,YR2#198211-198406

main46441-35010iCR21,YR2#,31198406-198808

46451BRACKET, CABLE SUPPORT

main46452-28060iCR21,YR2#,31198211-198808

RH

main46453-28010iCR21,YR2#,31198211-198808

LH

46458RETAINER, CABLE

main46458-28010iCR21,YR2#,31198211-198808

9017014057

main90170-14057

9020608016

main90206-08016

9020669001

main90206-69001

9046808001

main90468-08001

9046812134

main90468-12134

9094901045

main90949-01045

9094901103

main90949-01103

9161160610

main91611-60610

9161160612

main91611-60612

9161160814

main91611-60814

9161160816

main91611-60816

9165660825

main91656-60825

9411050600

main94110-50600

9412040600

main94120-40600

9412040800

main94120-40800

9461210701

main94612-10701

9461210800

main94612-10800

9538102515

main95381-02515

9622120710

main96221-20710

9622120914

main96221-20914

35 parts on this diagram · 1 diagram in section
