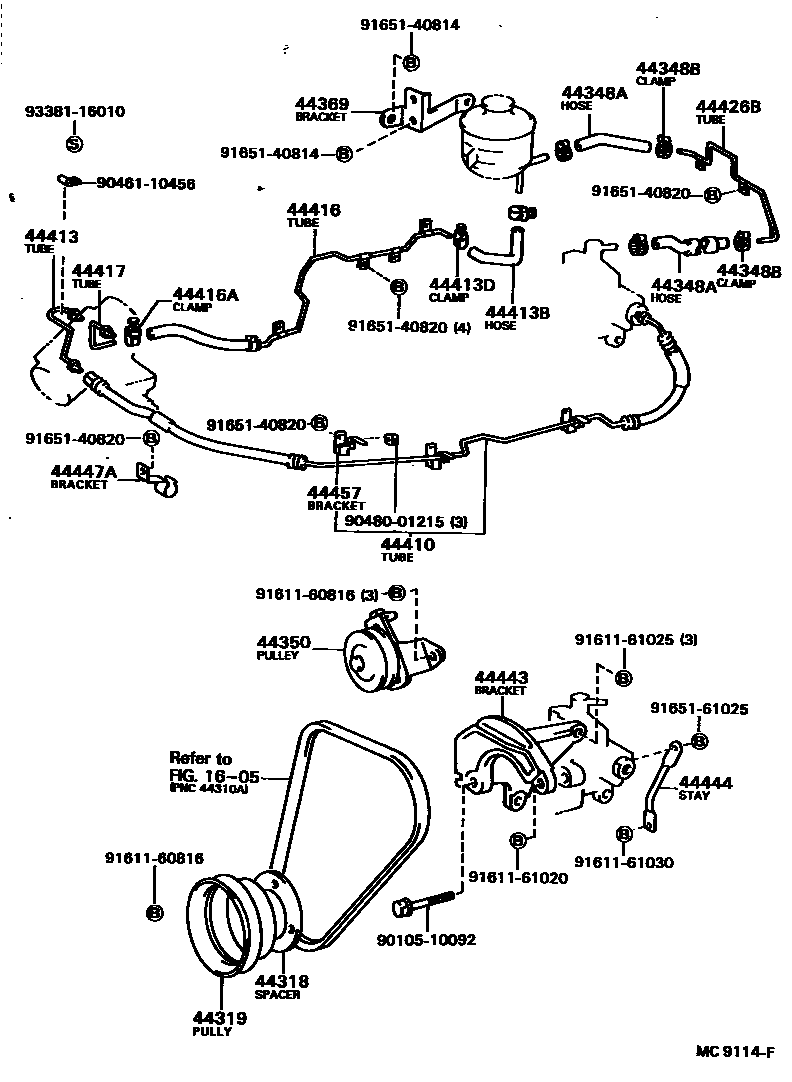

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

1605

44318SPACER, VANE PUMP DRIVE PULLEY

main44318-28012iYR2#,31198211-198808

44319PULLEY, VANE PUMP DRIVE

main44319-27010iCR21198305-198808

main44319-28013iYR2#,31198211-198808

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-28010iYR20,21198211-198808

RESERVOIR SIDE

main44348-28020iYR2#198211-198408

PUMP SIDE

sub44348-28021

main44348-28021iYR21198408-198808

PUMP SIDE

main44348-28030iCR21198305-198508

main44348-28040iYR22,31198508-198808

main44348-28050iCR21198508-198808

RESERVOIR SIDE

main44348-28060iCR21198508-198808

PUMP SIDE

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001iCR21,YR2#198211-198508

44350PULLEY ASSY, POWER STEERING IDLE

main44350-28011iYR2#,31198211-198808

44369BRACKET, OIL RESERVOIR, NO.1

main44369-28011iYR2#,31198211-198808

main44369-28020iCR21198508-198808

44410TUBE ASSY, PRESSURE FEED

main44410-28012iYR2#..RHD198211-198508

main44410-28021iYR2#..LHD198211-198508

main44410-28030iCR21..RHD198305-198508

main44410-28040iCR21..LHD198305-198408

main44410-28051iYR21..LHD198508-198608

main44410-28052iYR2#..LHD198608-198808

sub44410-28170

main44410-28062iCR21198508-198606

sub44410-28063

main44410-28063iCR21198606-198808

main44410-28072iYR2#..RHD198508-198608

main44410-28073iYR2#..RHD198608-198808

main44410-28090iYR31198601-198608

main44410-28091iYR31..ARL198608-198808

main44410-28110iYR31..EUR198608-198808

sub44410-28180

44413TUBE, PRESSURE FEED, NO.1

main44413-28010iYR2#..RHD198211-198508

main44413-28040iCR21..LHD198305-198508

main44413-28050iCR21..RHD198305-198508

44413BHOSE(FOR RESERVOIR TANK INLET)

main44412-28010iYR2#198211-198508

44413DCLAMP(FOR RESERVOIR TANK INLET HOSE)

main90460-01001iCR21,YR2#198211-198508

main90460-26001iYR22,31198508-198706

main90467-21005iYR22,31198706-198808

sub90467-21010

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-28011iYR2#..RHD198211-198508

main44416-28021iYR2#..LHD198211-198508

main44416-28041iCR21198508-198808

main44416-28051iYR2#198508-198808

main44416-28080iYR31..EUR198608-198808

main44416-28090iYR31..ARL198601-198808

44416ACLAMP(FOR RETURN HOSE)

main90460-01001iCR21,YR2#198211-198508

44417TUBE, RETURN, NO.2

main44417-28010iYR20..RHD198211-198310

main44417-28011iYR2#..RHD198310-198508

main44417-28020iYR20..LHD198211-198310

main44417-28021iYR2#..LHD198310-198508

main44417-28030iCR21..RHD198305-198508

main44417-28040iCR21198508-198808

sub44417-28120

main44417-28050iYR2#..RHD198508-198808

main44417-28060iYR2#..LHD198508-198808

main44417-28090iYR31198601-198808

sub44417-28220

44426BTUBE, OIL RESERVOIR TO PUMP

main44426-28011iYR20,21198211-198808

main44426-28021iCR21198508-198808

44443BRACKET, PUMP

main44443-14030iCR21198305-198808

main44443-28011iYR20198211-198408

main44443-28021iYR21,22,31198401-198808

44444STAY, PUMP, REAR

main44444-27010iYR2#198211-198511

main44444-27030iYR2#,31198511-198808

44447ABRACKET, HOSE SUPPORT, NO.1

main44447-28010iCR21..LHD198305-198408

FR

main44447-28010iYR2#..RHD198211-198508

main44447-28020iYR22,31198508-198808

main44447-28030iCR21..LHD198312-198408

RR

44457BRACKET, TUBE SUPPORT, NO.1

main44457-28020iYR2#198211-198508

main44457-28030iYR31198601-198808

9010510092

main90105-10092

9046110456

main90461-10456

9048001215

main90480-01215

9161160816

main91611-60816

9161161020

main91611-61020

9161161025

main91611-61025

9161161030

main91611-61030

9165140814

main91651-40814

9165140820

main91651-40820

9165161025

main91651-61025

9338116010

main93381-16010

30 parts on this diagram · 11 diagrams in section
