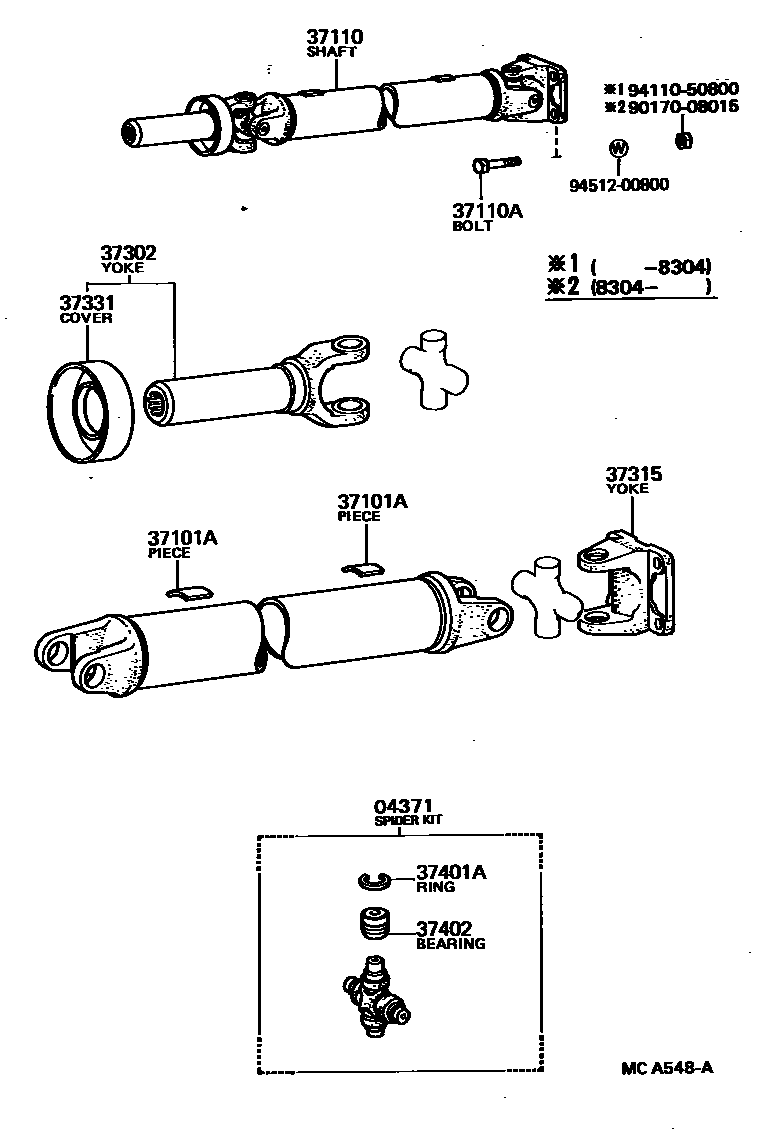

PROPELLER SHAFT & UNIVERSAL JOINT
04371SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT)
37101APIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT)
10G,L=20.7,10G,RR TUBE SIDE
10G,L=20.7,10G
20G,L=41.4,20G,RR TUBE SIDE
20G,L=41.4,20G
30G,L=62.2,30G,RR TUBE SIDE
30G,L=62.2,30G
2G,T=2.0,2G,RR TUBE SIDE
2G,T=2.0,2G
4G,T=2.0,4G
4G,T=2.0,4G,RR TUBE SIDE
6G,L=12.4,6G
6G,L=12.4,6G,RR TUBE SIDE
8G,L=16.6,8G
8G,L=16.6,8G,RR TUBE SIDE
12G,L=24.9,12G,RR TUBE SIDE
12G,L=24.9,12G
14G,L=29.0,14G
14G,L=29.0,14G,RR TUBE SIDE
16G,L=33.2,16G,RR TUBE SIDE
16G,L=33.2,16G
18G,L=37.3,18G
18G,L=37.3,18G,RR TUBE SIDE
22G,L=45.6,22G,RR TUBE SIDE
22G,L=45.6,22G
24G,L=49.7,24G,RR TUBE SIDE
24G,L=49.7,24G
26G,L=53.9,26G
26G,L=53.9,26G,RR TUBE SIDE
28G,L=58.1,28G,RR TUBE SIDE
28G,L=58.1,28G
4G,T=1.6,4G,RR YOKE SIDE
8G,T=1.6,8G,RR YOKE SIDE
12G,T=4.5,12G,RR YOKE SIDE
16G,T=4.5,16G,RR YOKE SIDE
20G,T=4.5,20G,RR YOKE SIDE
24G,T=4.5,L=25.1,24G,RR YOKE SIDE
28G,T=6,L=22.7,28G,RR YOKE SIDE
32G,T=6,L=24.3,32G,RR YOKE SIDE
36G,L=23.1,T=8.0,36G,RR YOKE SIDE
40G,L=25.6,40G,RR YOKE SIDE
44G,L=22.6,44G,RR YOKE SIDE
48G,L=24.6,48G,RR YOKE SIDE
52G,L=26.7,52G,RR YOKE SIDE
56G,L=28.7,56G,RR YOKE SIDE
60G,L=28.7,60G,RR YOKE SIDE
2G,2G,FR
4G,4G,FR
6G,6G,FR
8G,8G,FR
10G,10G,FR
12G,12G,FR
14G,14G,FR
16G,T=2.0,16G,FR
18G,T=2.0,18G,FR
20G,T=2.0,20G,FR
22G,T=2.0,22G,FR
24G,T=2.0,24G,FR
26G,T=2.0,26G,FR
28G,T=2.0,28G,FR
30G,T=2.0,30G,FR
37110ABOLT (FOR PROPELLER SHAFT)
*8-1.25PX25-12,FR
*8-1.25PX25-12
W/LSD
*10-1.00PX27-13
*10-1.00PX27-13,RR
37302YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE
37315YOKE, UNIVERSAL JOINT FLANGE
37331COVER, SLIDING SHAFT DUST
37401ARING, HOLE SNAP (FOR SPIDER BEARING)
T=2.375-2.425,T=2.4
T=2.425-2.475,T=2.45
T=2.475-2.525,T=2.5
T=2.525-2.575,T=2.55
37402BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER
9017008015
main90170-08015
9411050800
main94110-50800
9451200800
main94512-00800
12 parts on this diagram · 3 diagrams in section
