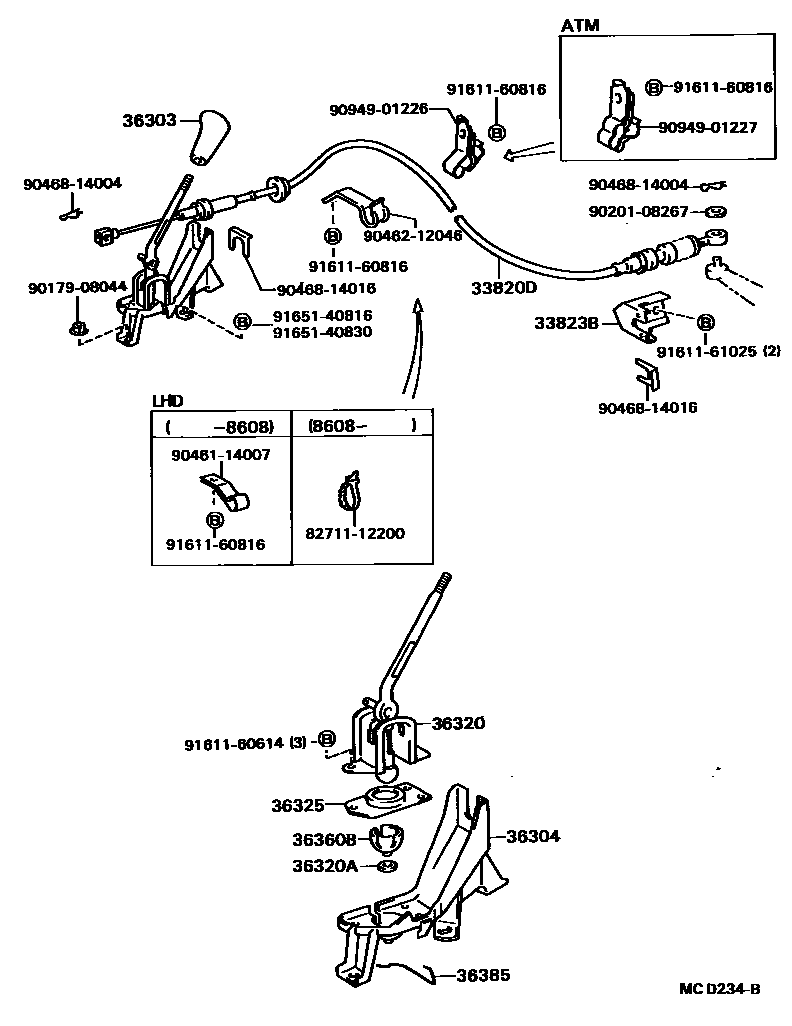

TRANSFER LEVER & SHIFT ROD

0001 1 0002 1

33820DCABLE ASSY, TRANSFER CONTROL

main33820-28050iYR31..5F..ARL198601-198808

main33820-28070iYR31..4FC198601-198808

main33820-28090iYR31..EUR198608-198808

33823BBRACKET, TRANSFER CONTROL CABLE

main33823-28100iYR31198601-198808

36303KNOB SUB-ASSY, SHIFT LEVER

main36303-28010-03iYR31..GL..EUR198608-198808

GRAY,GRAY,TRIM1#

main36303-28010-04iYR31198601-198608

BLUE,BLUE,TRIM8#

main36303-28010-06iYR31198601-198808

BROWN,BROWN,TRIM4#

36304RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER

main33506-28070iYR31..ARL198601-198808

main33506-28080iYR31..EUR198608-198808

36320LEVER ASSY, TRANSFER SHIFT

main33503-28100iYR31..ARL198601-198808

main33503-28110iYR31..EUR198608-198808

36320ABUSH (FOR TRANSFER SHIFT LEVER)

main90385-04001iYR31198601-198808

36325CAP, TRANSFER FRONT DRIVE SHIFT LEVER

main33554-28040iYR31..ARL198601-198808

main33554-28050iYR31..EUR198608-198808

36360BSEAT, TRANSFER SHIFT LEVER BALL

main33556-28030iYR31..ARL198601-198609

main33556-28040iYR31..EUR198608-198609

36385SPRING, TRANSFER SHIFT LEVER TORSION

main36385-28010iYR31198601-198808

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9017908044

main90179-08044

9020108267

main90201-08267

9046114007

main90461-14007

9046212046

main90462-12046

9046814004

main90468-14004

9046814016

main90468-14016

9094901226

main90949-01226

9094901227

main90949-01227

9161160614

main91611-60614

9161160816

main91611-60816

9161161025

main91611-61025

9165140816

main91651-40816

9165140830

main91651-40830

23 parts on this diagram · 2 diagrams in section
