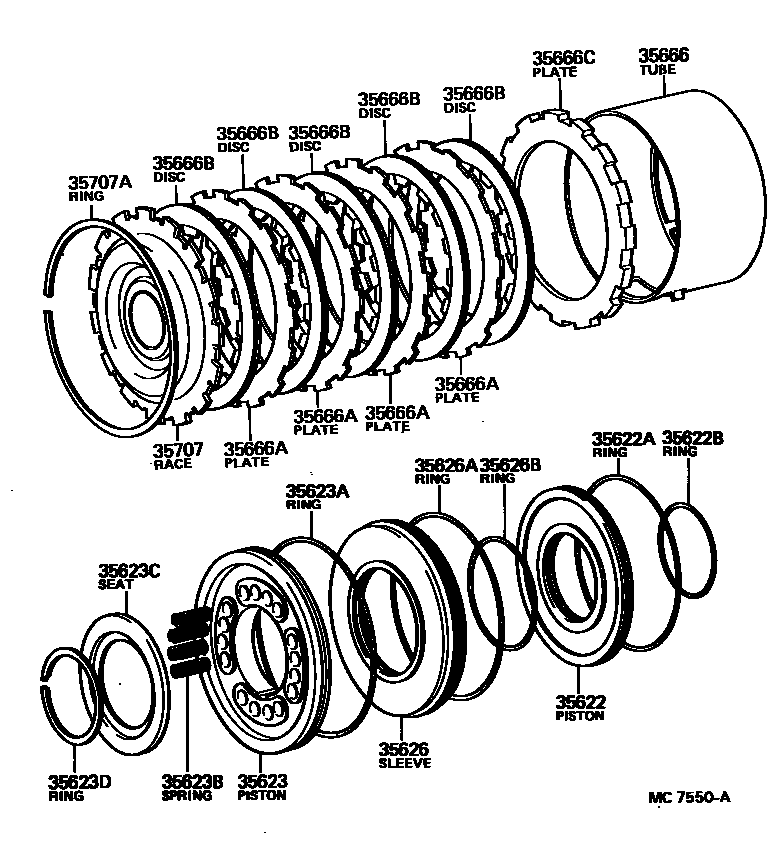

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35622PISTON, BRAKE, NO.2

main35622-22010iYR2#,31..4FC198211-198808

35622ARING (FOR BRAKE PISTON OUTER)

main90301-99193iYR2#,31..4FC198211-198808

35622BRING (FOR BRAKE PISTON INNER)

main90301-57188iYR2#,31..4FC198211-198808

35623PISTON, BRAKE, NO.3

main35623-22010iYR2#,31..4FC198211-198808

35623ARING, O (FOR BRAKE PISTON NO.3 )

main90301-99192iYR2#,31..4FC198211-198808

35623BSPRING (FOR BRAKE PISTON RETURN)

main90501-10671iYR2#,31..4FC198211-198808

35623CSEAT, BRAKE RETURN SPRING

main35627-22010iYR2#,31..4FC198211-198808

35623DRING, SHAFT SNAP (FOR BRAKE)

main90520-52262iYR2#,31..4FC198211-198808

35626SLEEVE, BRAKE REACTION

main35626-22010iYR2#,31..4FC198211-198808

35626ARING (FOR BRAKE REACTION SLEEVE OUTER)

main90301-99200iYR2#,31..4FC198211-198808

sub90301-99109

35626BRING (FOR BRAKE REACTION SLEEVE INNER)

main90301-68191iYR2#,31..4FC198211-198808

sub90301-67005

35666TUBE, BRAKE APPLY

main35666-22010iYR2#..4FC198211-198408

sub35666-26010

main35666-26010iYR21..4FC198408-198508

main35666-30010iYR22,31..4FC198508-198808

35666APLATE, CLUTCH (FOR BRAKE)

main35634-22050iYR20..4FC198211-198307

sub35634-22080

main35634-22080iYR2#,31..4FC198307-198703

main35647-22010iYR2#,31..4FC198703-198808

35666BDISC, CLUTCH (FOR BRAKE)

main35633-30020iYR20..4FC198211-198307

sub35633-30030

main35633-30030iYR2#..4FC198307-198707

sub35633-30050

main35633-30050iYR2#,31..4FC198707-198808

sub35633-30060

35666CPLATE, CLUTCH PRESSURE (FOR BRAKE)

main35639-22010iYR2#,31..4FC198211-198808

35707RACE SUB-ASSY, 1 WAY CLUTCH, INNER

main35707-30010iYR2#..4FC198211-198508

sub35707-30020

main35707-30020iYR21..4FC198508-198808

main35707-30040iYR22,31..4FC198508-198808

35707ARING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)

main90521-99140iYR2#,31..4FC198211-198808

17 parts on this diagram · 1 diagram in section
