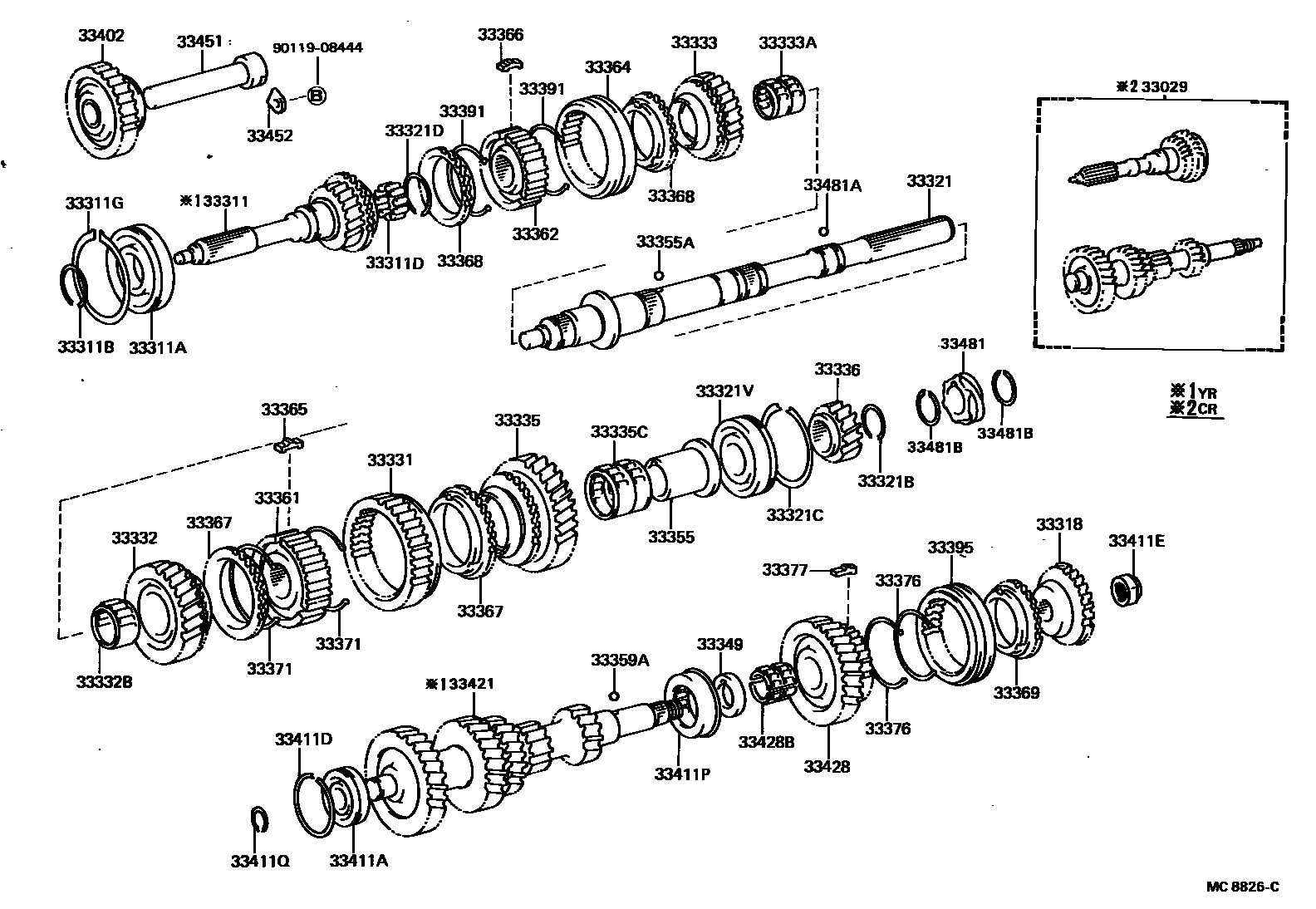

TRANSMISSION GEAR (MTM)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.05,MARK 0,T=2.05
T=2.10,MARK 1,T=2.10
T=2.15,MARK 2,T=2.15
T=2.20,MARK 3,T=2.20
T=2.25,MARK 4,T=2.25
T=2.30,MARK 5,T=2.30
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33318PIECE, GEAR SPLINE, NO.5
sub33318-35030
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.67-2.72,MARK A,T=2.67
T=2.73-2.78,MARK B,T=2.73
T=2.79-2.84,MARK C,T=2.79
T=2.85-2.90,MARK D,T=2.85
T=2.91-2.96,MARK E,T=2.91
T=2.97-3.02,MARK F,T=2.97
T=3.03-3.08,MARK G,T=3.03
T=3.09-3.14,MARK H,T=3.09
T=3.15-3.20,MARK J,T=3.15
T=3.21-3.26,MARK K,T=3.21
T=3.27-3.32,MARK L,T=3.27
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.65,ID=71.1
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.85-1.90,MARK D-1,T=1.85
T=1.95-2.00,MARK E-1,T=1.95
T=1.75-1.80,MARK C-1,T=1.75
T=2.05-2.10,MARK F-1,T=2.05
T=1.80-1.85,MARK D,T=1.80
T=1.90-1.95,MARK E,T=1.90
T=2.00-2.05,MARK F,T=2.20
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33331GEAR, REVERSE
sub33331-28011
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33349WASHER, 5TH GEAR THRUST
sub33349-35010
33355RACE, 1ST GEAR BEARING INNER
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33359ABALL, 5TH GEAR BEARING INNER RACE LOCK
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
sub33365-35021
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33376SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)
sub33394-30011
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33395SLEEVE, TRANSMISSION HUB, NO.3
sub33395-26010
sub33395-26020
sub33214-26020
sub33214-35040
sub33231-35070
sub33244-35050
sub33245-26010
sub33245-35080
sub90105-06143
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=1.07,OD=55.6
33411ENUT(FOR COUNTER GEAR SHAFT)
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=2.10-2.15,T=2.10
T=2.20-2.25,T=2.20
T=2.05-2.10,T=2.05
T=2.15-2.20,T=2.15
T=2.25-2.30,T=2.25
T=2.30-2.35,T=2.35
33421GEAR, COUNTER
33428GEAR, COUNTERSHAFT 5TH
sub33046-35061
33428BBEARING (FOR COUNTER 5TH GEAR)
33451SHAFT, REVERSE IDLER GEAR
sub33451-28011
33452STOPPER, REVERSE IDLER GEAR SHAFT
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=6,MARK 6X18-20,N=6,*AXC=E292
N=6,MARK 6X18-20
N=6,MARK 6X21-23,N=6,*AXC=E282
N=6,MARK 6X21-23,*AXC=E282
N=6,MARK 6X21-23
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
9011908444
main90119-08444
52 parts on this diagram · 1 diagram in section
